Winmate/Configurable

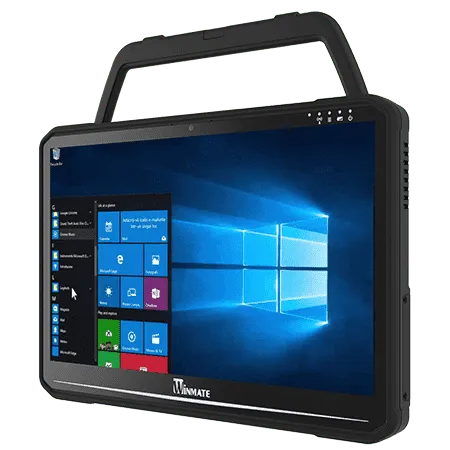

Winmate M140TG
US · WINMATE-MODEL-M140TG
BusinessConfigurable device · Advertised base configuration
Configurable modelWINMATE-MODEL-M140TG
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
| Graphics | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:01.820082+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented processor specifications and options
- Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 8 GBSource & observationView specification source ↗Observed 2026-10-09T21:58:01.820082+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented memory specifications and options
- 8GB (Default)
- 16GB (Optional)
- 32GB (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Documented storage specifications and options
- 128GB SSD
- Additional storage available with micro SDXC card slot (Default)
- 256GB SSD (Optional)
- 512GB SSD (Optional)
- 1TB SSD (Optional)
- 2TB SSD (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Display▾
| Screen technology | Unpublished |
|---|---|
| Size | 14 inSource & observationView specification source ↗Observed 2026-10-09T21:58:01.820082+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
| Resolution | 1920x1080 pxSource & observationView specification source ↗Observed 2026-10-09T21:58:01.820082+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
| Refresh rate | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:01.820082+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:01.820082+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Power supply | Power Rating: 19V DC · Adapter: 100-240V, 50-60Hz / 19V DCSource & observationView specification source ↗Observed 2026-10-09T21:58:01.820082+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Connectivity▾
WWAN choices
- 4G LTE (Optional)
- 5G (Optional)
Optional radios, antennas and cellular service are not included by default.
Manufacturer options ↗GNSS choices
- GPS, GLONASS (Optional)
Optional radios, antennas and cellular service are not included by default.
Manufacturer options ↗Video choices
- 1 x Micro HDMI (Optional)
Optional connectors and dock-specific interfaces retain their source scope and mutual exclusions.
Manufacturer options ↗Build & Physical▾
| Weight | 1700 gSource & observationView specification source ↗Observed 2026-10-09T21:58:01.820082+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Dimensions | Dimension: 341.91 x 224.67 x 25.4 mmSource & observationView specification source ↗Observed 2026-10-09T21:58:01.820082+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Software & Bundle▾
| Included bundle | Adapter and Power Cord · Standard Battery · Capacitive StylusSource & observationView specification source ↗Observed 2026-10-09T21:58:01.820082+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented operating system specifications and options
- Windows 11 IoT Enterprise LTSC (64 bit) (Default)
- Windows 10 IoT Enterprise LTSC (64 bit) (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Smart Card Reader choices
- Smart Card Reader
- Comply with
- ISO7816-1.2.3 T=1 and T=Ø protocol (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗RFID choices
- HF RFID reader 13.56 MHz (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Battery choices
- Internal Battery: 10.8V typ. 2400 mAh Li-Ion Battery
- Hot-swappable 11.4V, typ. 3500 mAh Li-Ion Re-chargeable Battery (3S1P)
- Hot-swappable 11.4V, typ. 4750 mAh Li-Ion Re-chargeable Battery (3S1P) (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Optional Accessory choices
- Kickstand (Optional)
- Vehicle Charger (Optional)
- Battery Charger (Optional)
- Desk Dock (Optional)
- Carry Bag (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
