Winmate/Configurable

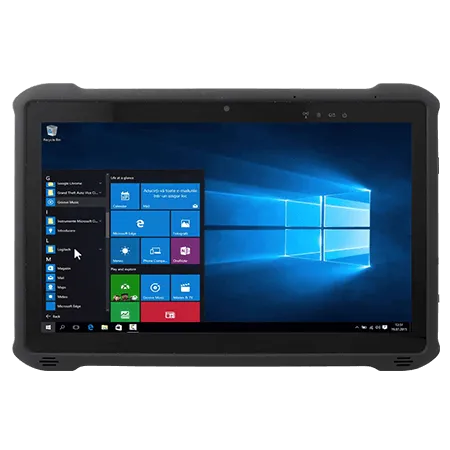

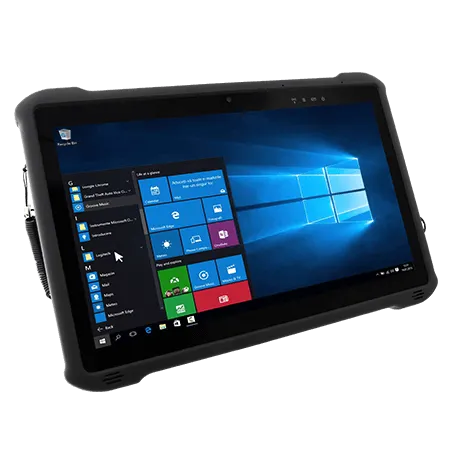

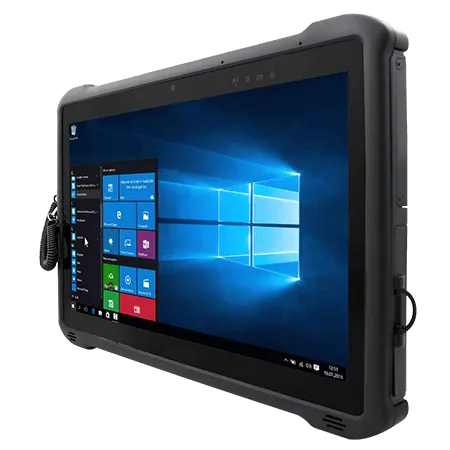

Winmate M116P
US · WINMATE-MODEL-M116P
BusinessConfigurable device · Advertised base configuration
Configurable modelWINMATE-MODEL-M116P
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
| Graphics | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:02.431512+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented processor specifications and options
- Intel Pentium N4200 1.1GHz (up to 2.5GHz)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 4 GBSource & observationView specification source ↗Observed 2026-10-09T21:58:02.431512+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented memory specifications and options
- 4GB (Default)
- 8GB (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Documented storage specifications and options
- 128 GB SSD
- Additional storage available with micro SDXC card slot (Default)
- 256 GB SSD (Optional)
- 512 GB SSD (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Display▾
| Screen technology | Unpublished |
|---|---|
| Size | 11.6 inSource & observationView specification source ↗Observed 2026-10-09T21:58:02.431512+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
| Resolution | 1920x1080 pxSource & observationView specification source ↗Observed 2026-10-09T21:58:02.431512+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
| Refresh rate | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:02.431512+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:02.431512+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Power supply | Power Rating: 19V DC · Adapter: 100-240V, 50-60Hz (19V DC)Source & observationView specification source ↗Observed 2026-10-09T21:58:02.431512+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Connectivity▾
WWAN choices
- 4G LTE (Optional)
Optional radios, antennas and cellular service are not included by default.
Manufacturer options ↗LAN choices
- 1 x RJ45-10/100/1000 GigaLAN port (Optional)
Optional connectors and dock-specific interfaces retain their source scope and mutual exclusions.
Manufacturer options ↗Video choices
- 1 x Micro HDMI (Optional)
Optional connectors and dock-specific interfaces retain their source scope and mutual exclusions.
Manufacturer options ↗Build & Physical▾
| Weight | 1400 gSource & observationView specification source ↗Observed 2026-10-09T21:58:02.431512+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Dimensions | Dimension: 300.67 x 201.97 x 22.5 mmSource & observationView specification source ↗Observed 2026-10-09T21:58:02.431512+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Software & Bundle▾
| Operating system | Windows 10 IoT Enterprise (64 bit)Source & observationView specification source ↗Observed 2026-10-09T21:58:02.431512+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Included bundle | Adapter and Power Cord · Capacitive Stylus · Standard BatterySource & observationView specification source ↗Observed 2026-10-09T21:58:02.431512+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Smart Card Reader choices
- Smart Card Reader
- Comply with
- ISO7816-1.2.3 T=1 and T=Ø protocol (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗RFID choices
- HF RFID reader 13.56 MHz (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Battery choices
- Hot-swappable 7.7V typ. 5900 mAh Li-Polymer Battery (2S1P) (Default)
- Optional 7.4V typ. 10280 mAh Li-Polymer Battery (2S2P)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Optional Accessory choices
- Desk Dock (Optional)
- Vehicle Dock (Optional)
- Vehicle Cradle (Optional)
- Vehicle Charger (Optional)
- Battery Charger (Optional)
- High Capacity Battery (Optional)
- Hand Strap (Optional)
- VESA Mount Kit (Optional)
- Shoulder Strap (Optional)
- Carry Bag (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Barcode Scanner choices
- 1D/2D barcode reader (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
