Winmate/Configurable

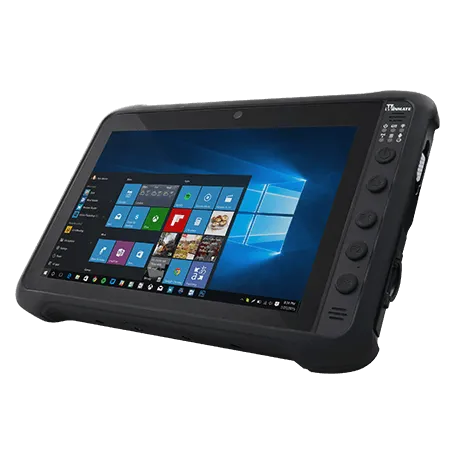

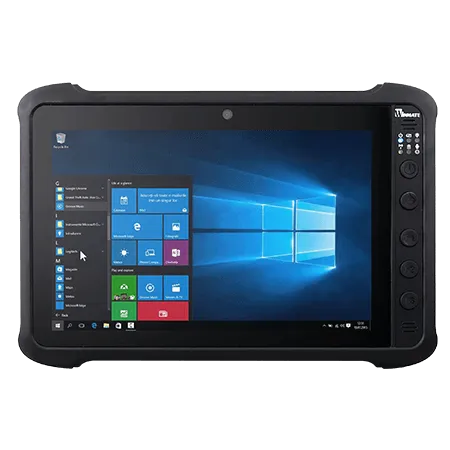

Winmate M900EK
US · WINMATE-MODEL-M900EK
BusinessConfigurable device · Advertised base configuration
Configurable modelWINMATE-MODEL-M900EK
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
| Graphics | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:03.606870+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented processor specifications and options
- Intel Celeron N6211 1.2 GHz (turbo boost up to 2.60 GHz) (Default)
- Intel Pentium N6415 1.2 GHz (turbo boost up to 3.00 GHz) (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 4 GBSource & observationView specification source ↗Observed 2026-10-09T21:58:03.606870+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented memory specifications and options
- 4GB (Default)
- 8GB (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Documented storage specifications and options
- 128GB SSD
- Additional storage available with micro SDXC card slot (Default)
- 256GB SSD (Optional)
- 512GB SSD (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Display▾
| Screen technology | Unpublished |
|---|---|
| Size | 8 inSource & observationView specification source ↗Observed 2026-10-09T21:58:03.606870+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
| Resolution | 1280x800 pxSource & observationView specification source ↗Observed 2026-10-09T21:58:03.606870+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
| Refresh rate | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:03.606870+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:03.606870+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Power supply | Power Rating: 20V DC · Adapter: 100-240V, 50-60Hz / 20V DCSource & observationView specification source ↗Observed 2026-10-09T21:58:03.606870+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Connectivity▾
| Ports | USB Port: 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type C, support Power Delivery 20V In) · Audio: 1 x Audio combo 3.5mm audio combo jack · Audio: Dual Digital Mic With Noise Cancellation · Audio: Dual Speaker · SD Card Slot: 1 x Micro SDXC Slot · SIM Card Slot: 1 x Micro SIM card slot · Expansion Port: 1 x 15pin D-sub connector · Indicator: 4x LED Indicator for Power, Battery, HDD, RF status · Docking Connector: 1 x 19-pin docking connectorSource & observationView specification source ↗Observed 2026-10-09T21:58:03.606870+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
WWAN choices
- 4G LTE (Optional)
Optional radios, antennas and cellular service are not included by default.
Manufacturer options ↗Build & Physical▾
| Weight | 900 gSource & observationView specification source ↗Observed 2026-10-09T21:58:03.606870+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Dimensions | Dimension: 225 x 148 x 20.5 mm ( 10 x 7.76 x 0.8 inches)Source & observationView specification source ↗Observed 2026-10-09T21:58:03.606870+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Software & Bundle▾
| Included bundle | Adapter and Power Cord · Standard Battery PackSource & observationView specification source ↗Observed 2026-10-09T21:58:03.606870+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented operating system specifications and options
- Windows 11 IoT Enterprise LTSC (64 bit) (Default)
- Windows 10 IoT Enterprise LTSC (64 bit) (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Smart Card Reader choices
- Smart Card Reader
- Comply with
- ISO7816-1.2.3 T=1 and T=Ø protocol (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗RFID choices
- Mutually Exclusive with Barcode Reader (Default)
- HF RFID Reader 13.56 MHz (Optional)
- LF RFID Reader 125 KHz (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Optional Accessory choices
- Desk Dock (Optional)
- Vehicle Dock (Optional)
- USB-A Cable (Optional)
- Battery Charger (Optional)
- Vehicle Charger (Optional)
- Hand Strap (Optional)
- Vehicle Cradle (Optional)
- LAN Cable (Optional)
- Capacitive Stylus (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Barcode Scanner choices
- 1D/2D barcode reader (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
