Winmate/Configurable

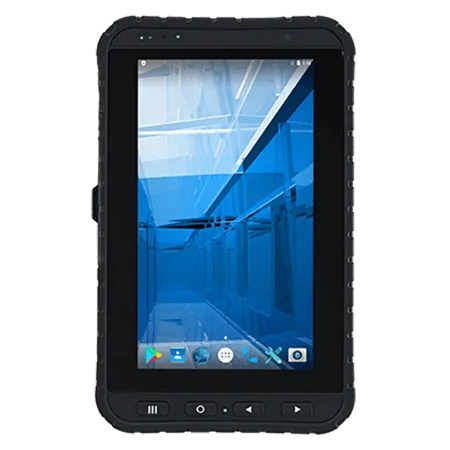

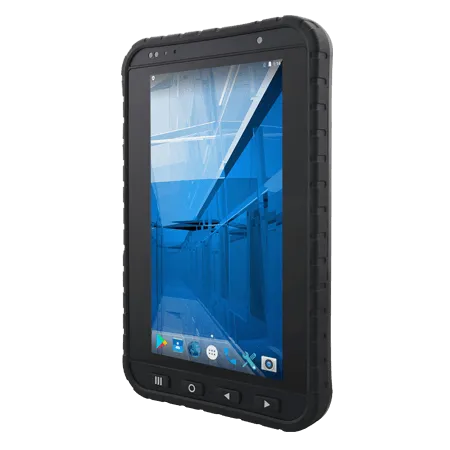

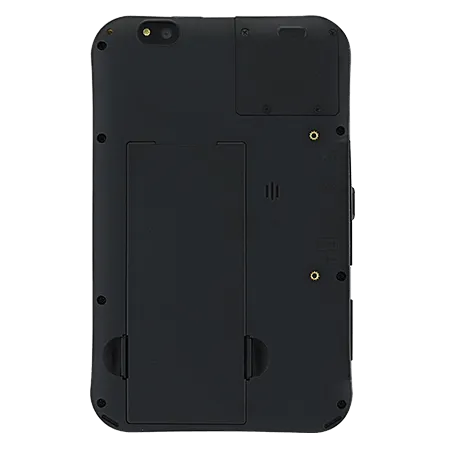

Winmate M700DM9

Name: Winmate M700DM9
Brand: Winmate

US · WINMATE-MODEL-M700DM9

Business

Configurable device · Advertised base configuration

Configurable modelWINMATE-MODEL-M700DM9

Before you buy +

Winmate complete model reference, not a fixed retail SKU. Specifications describe the stated default where available. Factory choices, additional storage, regional radios and optional accessories retain their conditions. No order was submitted; confirm the final configuration and US availability with Winmate or its authorized distributor. Unpublished fields remain unknown. Configure on the manufacturer’s site ↗

Specifications below preserve the published source wording. Unpublished values are unknown; they do not mean a feature is absent.

Independent assessment

A buying verdict and benchmark scores are not available for this exact configuration.

Explore the full specifications ↓

The hardware

Full Specifications

Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.

Performance — CPU / GPU▾

Processor	ARM A73 x 4 (2.0 GHz) + A53 x 4 (2.0 GHz) Source & observation View specification source ↗ Observed 2026-10-09T21:58:04.365133+00:00 Exact official model technical rows; stated defaults separated from optional hardware
Graphics	Unpublished Source & observation View specification source ↗ Observed 2026-10-09T21:58:04.365133+00:00 Exact official model technical rows; stated defaults separated from optional hardware

Memory & Storage▾

Installed RAM	4 GB Source & observation View specification source ↗ Observed 2026-10-09T21:58:04.365133+00:00 Exact official model technical rows; stated defaults separated from optional hardware
Total storage	64 GB Source & observation View specification source ↗ Observed 2026-10-09T21:58:04.365133+00:00 Exact official model technical rows; stated defaults separated from optional hardware

Display▾

Screen technology	Unpublished
Size	7 in Source & observation View specification source ↗ Observed 2026-10-09T21:58:04.365133+00:00 Exact official model technical rows; stated defaults separated from optional hardware
Resolution	1280x720 px Source & observation View specification source ↗ Observed 2026-10-09T21:58:04.365133+00:00 Exact official model technical rows; stated defaults separated from optional hardware
Refresh rate	Unpublished Source & observation View specification source ↗ Observed 2026-10-09T21:58:04.365133+00:00 Exact official model technical rows; stated defaults separated from optional hardware

Battery & Power▾

Battery capacity	Unpublished Source & observation View specification source ↗ Observed 2026-10-09T21:58:04.365133+00:00 Exact official model technical rows; stated defaults separated from optional hardware
Power supply	Power Rating: DC 5V · Adapter: Input: 100V-240V AC · Adapter: Output: DC 5V 3A Source & observation View specification source ↗ Observed 2026-10-09T21:58:04.365133+00:00 Exact official model technical rows; stated defaults separated from optional hardware

Connectivity▾

Ports

USB Port: 1 x USB Type C OTG · Audio: 1 x Audio Combo connector (Mic in and Line Out) · Audio: 2 x Built-in Mic · Audio: 1 x Speaker · Audio: 1 x Earphone · SD Card Slot: 1 x Micro SD Card Slot · SIM Card Slot: 1 x Micro SIM Card Slot · Indicator: 2 x LED Indicators · Indicator: (Power, Battery) · Docking Connector: 1 x Docking Connector

Source & observation

View specification source ↗

Observed 2026-10-09T21:58:04.365133+00:00

Exact official model technical rows; stated defaults separated from optional hardware

WWAN choices

4G/LTE (Optional)

Optional radios, antennas and cellular service are not included by default.

Manufacturer options ↗

Build & Physical▾

Weight	550 g Source & observation View specification source ↗ Observed 2026-10-09T21:58:04.365133+00:00 Exact official model technical rows; stated defaults separated from optional hardware
Dimensions	Dimension: 212.4 x 132.8 x 19 mm Source & observation View specification source ↗ Observed 2026-10-09T21:58:04.365133+00:00 Exact official model technical rows; stated defaults separated from optional hardware

Software & Bundle▾

Operating system	Android 11.0 Source & observation View specification source ↗ Observed 2026-10-09T21:58:04.365133+00:00 Exact official model technical rows; stated defaults separated from optional hardware
Included bundle	Universal Adapter x1 · Battery x1 Source & observation View specification source ↗ Observed 2026-10-09T21:58:04.365133+00:00 Exact official model technical rows; stated defaults separated from optional hardware

RFID choices

NFC (Read / Write, Peer to Peer mode) (Optional)

Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.

Manufacturer options ↗

Battery choices

3.7V 5300mAh (Default)
Warm swappable function (Optional)

Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.

Manufacturer options ↗

Optional Accessory choices

USB Type-C Cable x1
Battery Charging Dock
Vehicle Dock (Charging + Connectors)
Vehicle Dock (Charging Only)
Desk Dock
Hand Strap
Micro SD Card
Capacitive Touch Stylus
Vehicle Adapter
USB-C to HDMI Adapter

Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.

Manufacturer options ↗

Barcode Scanner choices

1D/2D Barcode Reader (Optional)

Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.

Manufacturer options ↗

Independent testing

Benchmarks & Reviews

No published tests or reviews

No test results available (for now). A buying verdict is unavailable for this exact configuration.
