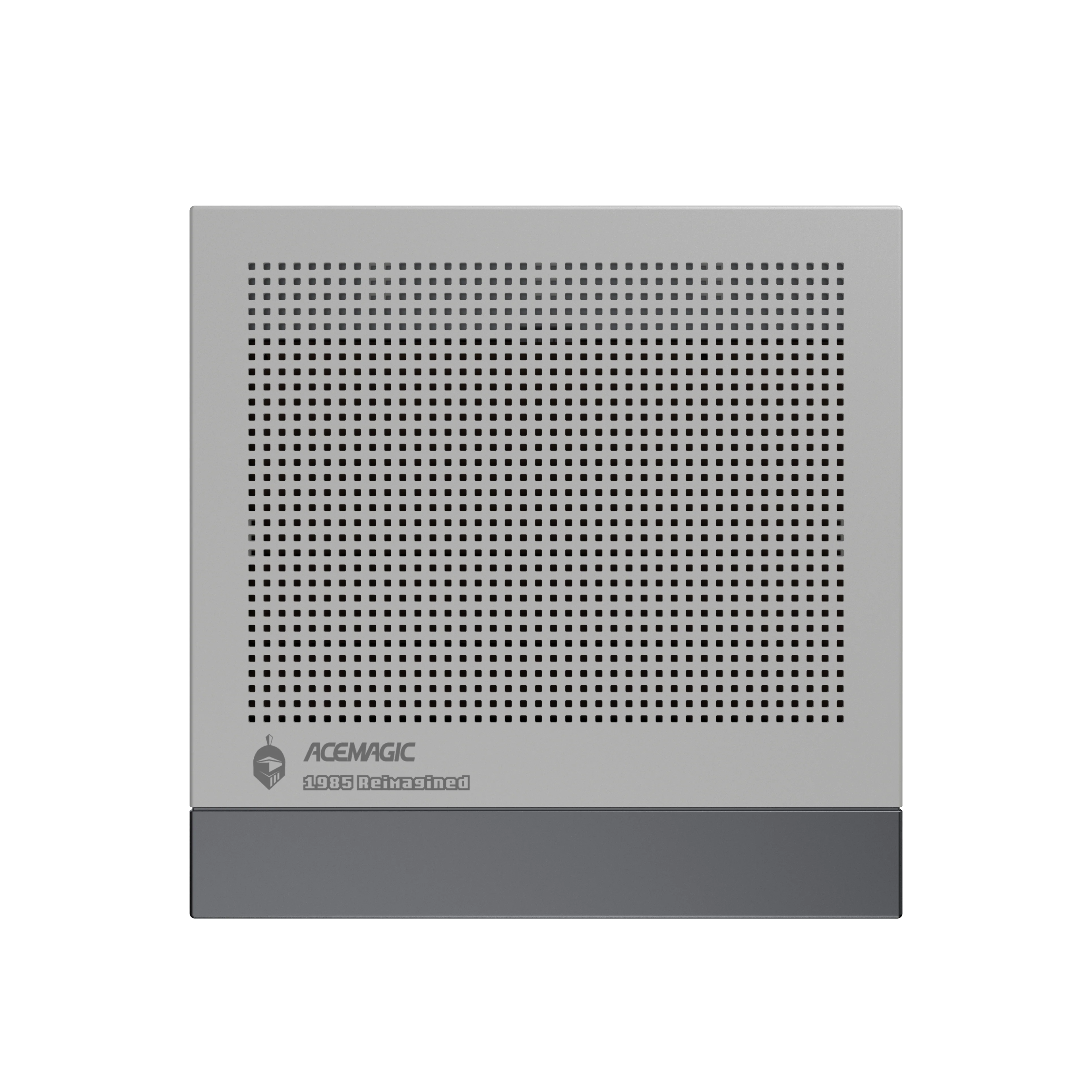

ACEMAGIC X3 Mini PC · AMD Ryzen 7 H 255 · 16GB LPDDR5 · 512GB

Name: ACEMAGIC X3 Mini PC · AMD Ryzen 7 H 255 · 16GB LPDDR5 · 512GB
Brand: ACEMAGIC

US · CMNX3000AUS1653

Exact configurationCMNX3000AUS1653

Before you buy +

Match the part number CMNX3000AUS1653 when checking a retailer listing. Different configurations can share a product name.

Specifications below preserve the published source wording. Unpublished values are unknown; they do not mean a feature is absent.

Independent assessment

A buying verdict and benchmark scores are not available for this exact configuration.

Explore the full specifications ↓

The hardware

Full Specifications

Every published specification, grouped by category. Select a heading to collapse.

Performance — CPU / GPU▾

Processor	AMD Ryzen 7 H 255 Source & observation View specification source ↗ Observed 2026-09-27T20:07:11.570146+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel
Graphics	AMD Radeon 780M Source & observation View specification source ↗ Observed 2026-09-27T20:07:11.570146+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel

Memory & Storage▾

Installed RAM	16 GB Source & observation View specification source ↗ Observed 2026-09-27T20:07:11.570146+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel
Total storage	512 GB Source & observation View specification source ↗ Observed 2026-09-27T20:07:11.570146+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel

Display▾

Screen technology	Not applicable
Size	Not applicable Source & observation View specification source ↗ Observed 2026-09-27T20:07:11.570146+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel
Resolution	Not applicable Source & observation View specification source ↗ Observed 2026-09-27T20:07:11.570146+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel
Refresh rate	Not applicable Source & observation View specification source ↗ Observed 2026-09-27T20:07:11.570146+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel

Battery & Power▾

Battery capacity	Unpublished Source & observation View specification source ↗ Observed 2026-09-27T20:07:11.570146+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel
Power supply	Unpublished Source & observation View specification source ↗ Observed 2026-09-27T20:07:11.570146+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel

Connectivity▾

Ports

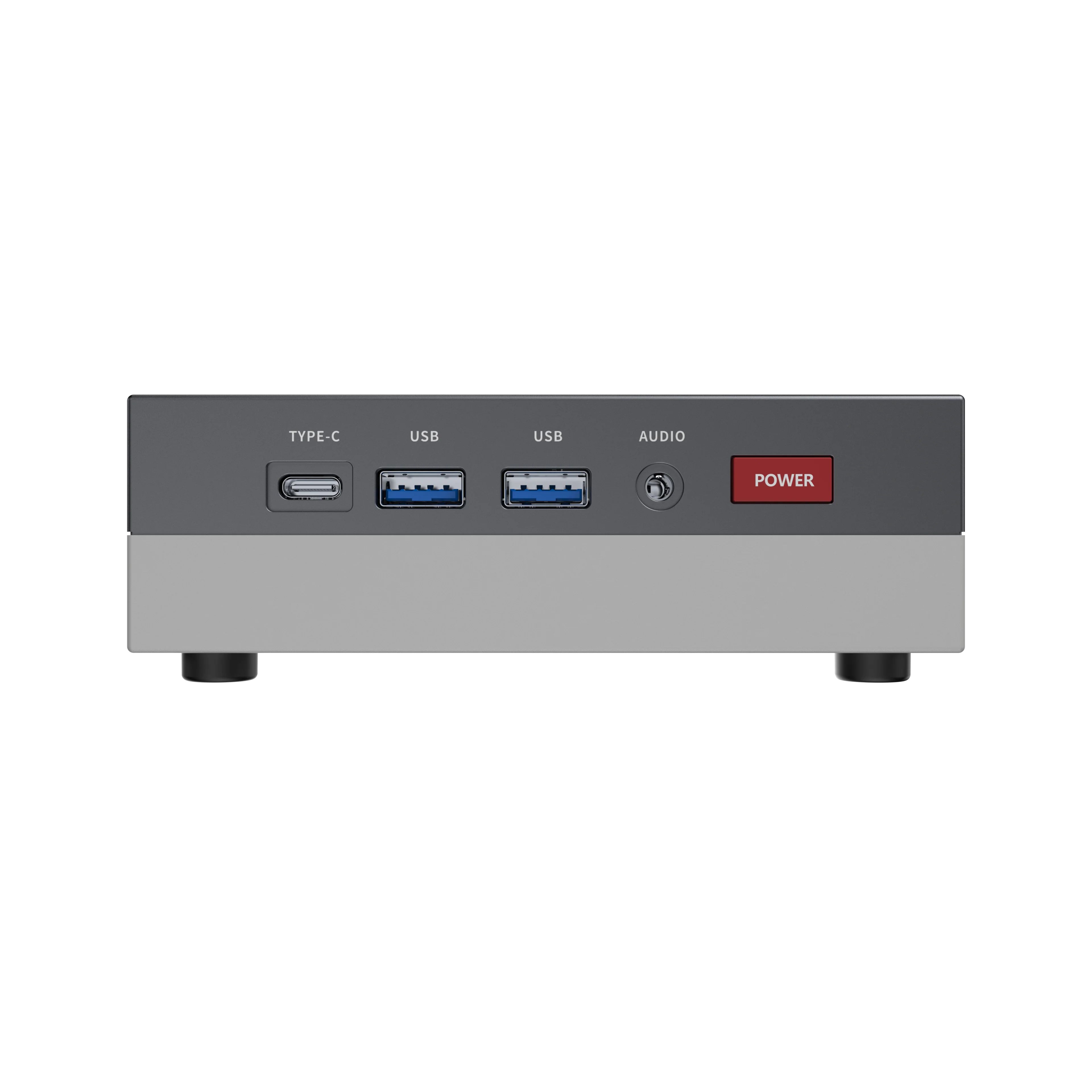

2.5GbE (10/100/1000/2500Mbps Auto-negotiation) LAN ×1 · USB3.2 Gen2 Type-A Port ×2 (10Gbps, Front) · USB3.2 Gen1 Type-A Port ×4 (5Gbps, Back) · USB4 Type-C ×1 (Supports DP1.4, 8K@60Hz or 4K@120Hz, Max 40Gbps Data Transfer, Supports PD100W Power Delivery) · DC IN ×1 · HDMI 2.1 ×1 · DP 2.0 ×1 · 3.5mm Audio Jack ×1 · Power Button ×1 · HDMI 2.1 (8K@60Hz) *1 · USB 4 Type-C (8K@60Hz) *1 · DP 2.0 *1 (8K@60Hz) · HDMI 2.1 *1 · USB 4 Typ-C *1 · DP 2.0 *1 · 3.5mm Audio Jack *1

Source & observation

View specification source ↗

Observed 2026-09-27T20:07:11.570146+00:00

ACEMAGIC US exact fixed variant and CPU-matched specification panel

Wireless & networking

WiFi 6E, BT 5.2

Source & observation

View specification source ↗

Observed 2026-09-27T20:07:11.570146+00:00

ACEMAGIC US exact fixed variant and CPU-matched specification panel

Build & Physical▾

Weight	Unpublished Source & observation View specification source ↗ Observed 2026-09-27T20:07:11.570146+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel
Dimensions	128.2 × 128.2 × 44mm Source & observation View specification source ↗ Observed 2026-09-27T20:07:11.570146+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel

Software & Bundle▾

Operating system	Windows 11 Pro Source & observation View specification source ↗ Observed 2026-09-27T20:07:11.570146+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel
Included bundle	Unpublished

Motherboard & Memory Expansion▾

Motherboard model	Unpublished Source & observation View specification source ↗ Observed 2026-09-27T20:07:11.570146+00:00 Unpublished: no unambiguous exact-device manufacturer specification
Total RAM slots	Unpublished Source & observation View specification source ↗ Observed 2026-09-27T20:07:11.570146+00:00 Unpublished: no unambiguous exact-device manufacturer specification

Independent testing

Benchmarks & Reviews

No published tests or reviews

No test results available (for now). A buying verdict is unavailable for this exact configuration.
