ACEMAGIC W1 · AMD Ryzen 7 H 255 · 16GB LPDDR5 · 512GB

Name: ACEMAGIC W1 · AMD Ryzen 7 H 255 · 16GB LPDDR5 · 512GB
Brand: ACEMAGIC

US · CMNW1000SUS1650

Exact configurationCMNW1000SUS1650

Before you buy +

Match the part number CMNW1000SUS1650 when checking a retailer listing. Different configurations can share a product name.

Specifications below preserve the published source wording. Unpublished values are unknown; they do not mean a feature is absent.

Independent assessment

A buying verdict and benchmark scores are not available for this exact configuration.

Explore the full specifications ↓

The hardware

Full Specifications

Every published specification, grouped by category. Select a heading to collapse.

Performance — CPU / GPU▾

Processor	AMD Ryzen 7 H 255 Source & observation View specification source ↗ Observed 2026-09-27T20:07:22.377499+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel

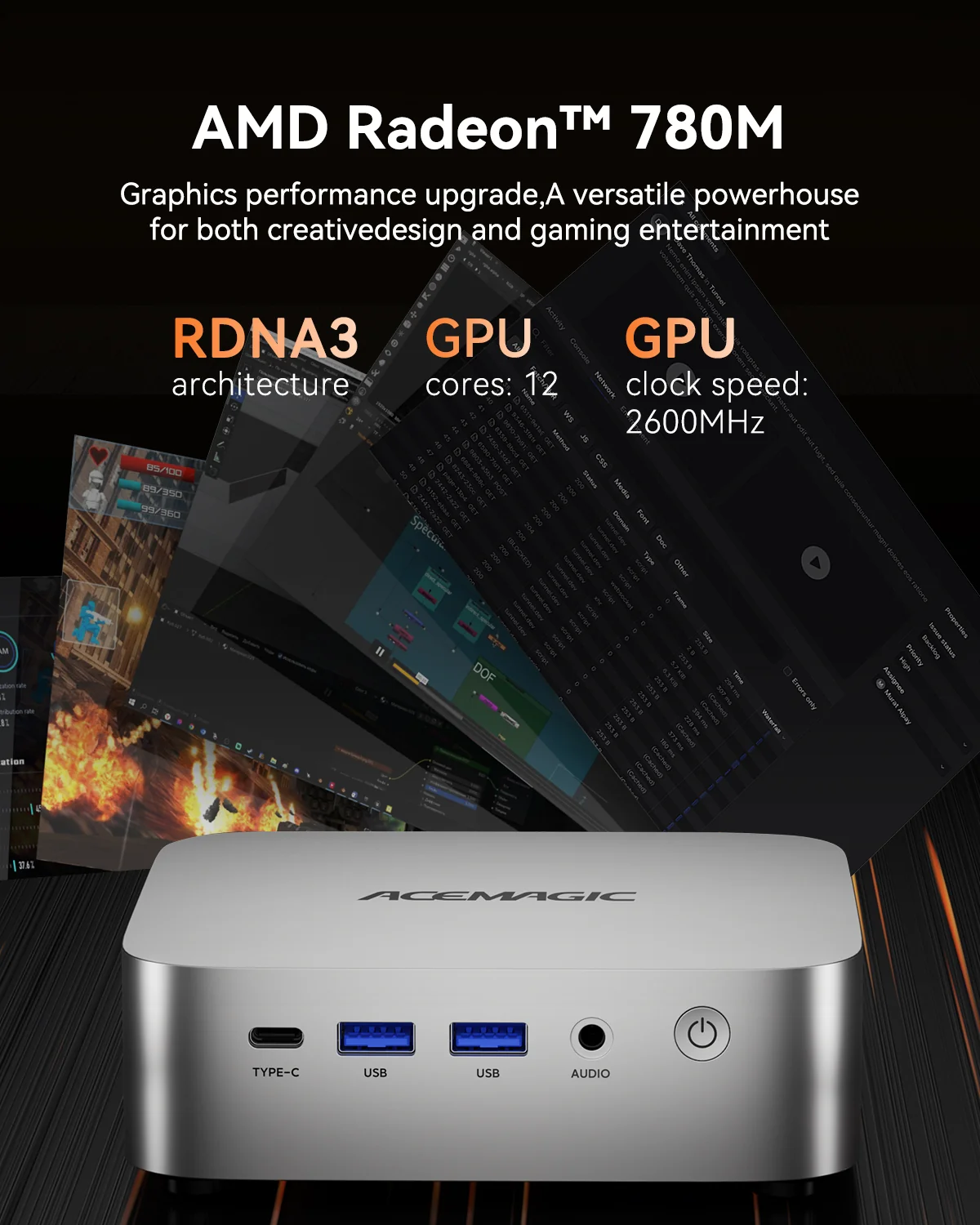

Graphics	AMD Radeon 780M Source & observation View specification source ↗ Observed 2026-09-27T20:07:22.377499+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel

Memory & Storage▾

Installed RAM	16 GB Source & observation View specification source ↗ Observed 2026-09-27T20:07:22.377499+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel
Total storage	512 GB Source & observation View specification source ↗ Observed 2026-09-27T20:07:22.377499+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel

Display▾

Screen technology	Not applicable
Size	Not applicable Source & observation View specification source ↗ Observed 2026-09-27T20:07:22.377499+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel
Resolution	Not applicable Source & observation View specification source ↗ Observed 2026-09-27T20:07:22.377499+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel
Refresh rate	Not applicable Source & observation View specification source ↗ Observed 2026-09-27T20:07:22.377499+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel

Battery & Power▾

Battery capacity	Unpublished Source & observation View specification source ↗ Observed 2026-09-27T20:07:22.377499+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel
Power supply	DC 19V-6.3A，DC Header 5.5*2.1mm Source & observation View specification source ↗ Observed 2026-09-27T20:07:22.377499+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel

Connectivity▾

Ports

10M/100M/1000M/2.5Gbps adaptive RJ45 Gigabit Ethernet Port ×1 · USB3.2 Gen2 Type-A Port ×2 (10Gbps) · USB3.2 Gen1 Type-A Port ×4 (5Gbps) · USB4 Type-C ×1 · DC IN ×1 · HDMI 2.0 ×1 · DP2.0 ×1 · 3.5mm Audio Jack ×2 · Power Button ×1 · HDMI 2.1×1 ( 8K @60Hz） · USB4 Type-C ×1, supporting up to 40Gbps transfer speeds / DisplayPort 1.4 (8K@60Hz or 4K@120Hz) / Supports 100W PD charging · DP2.0×1 (8K@60Hz) · 3.5mm Audio Jack *1

Source & observation

View specification source ↗

Observed 2026-09-27T20:07:22.377499+00:00

ACEMAGIC US exact fixed variant and CPU-matched specification panel

Wireless & networking

WiFi 6E · BT5.2

Source & observation

View specification source ↗

Observed 2026-09-27T20:07:22.377499+00:00

ACEMAGIC US exact fixed variant and CPU-matched specification panel

Build & Physical▾

Weight	Unpublished Source & observation View specification source ↗ Observed 2026-09-27T20:07:22.377499+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel
Dimensions	128.2mm128.2mm41mm Source & observation View specification source ↗ Observed 2026-09-27T20:07:22.377499+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel

Software & Bundle▾

Operating system	Windows 11 Pro Source & observation View specification source ↗ Observed 2026-09-27T20:07:22.377499+00:00 ACEMAGIC US exact fixed variant and CPU-matched specification panel
Included bundle	Unpublished

Motherboard & Memory Expansion▾

Motherboard model	Unpublished Source & observation View specification source ↗ Observed 2026-09-27T20:07:22.377499+00:00 Unpublished: no unambiguous exact-device manufacturer specification
Total RAM slots	Unpublished Source & observation View specification source ↗ Observed 2026-09-27T20:07:22.377499+00:00 Unpublished: no unambiguous exact-device manufacturer specification

Independent testing

Benchmarks & Reviews

No published tests or reviews

No test results available (for now). A buying verdict is unavailable for this exact configuration.
