GMKtec/Mini PCs

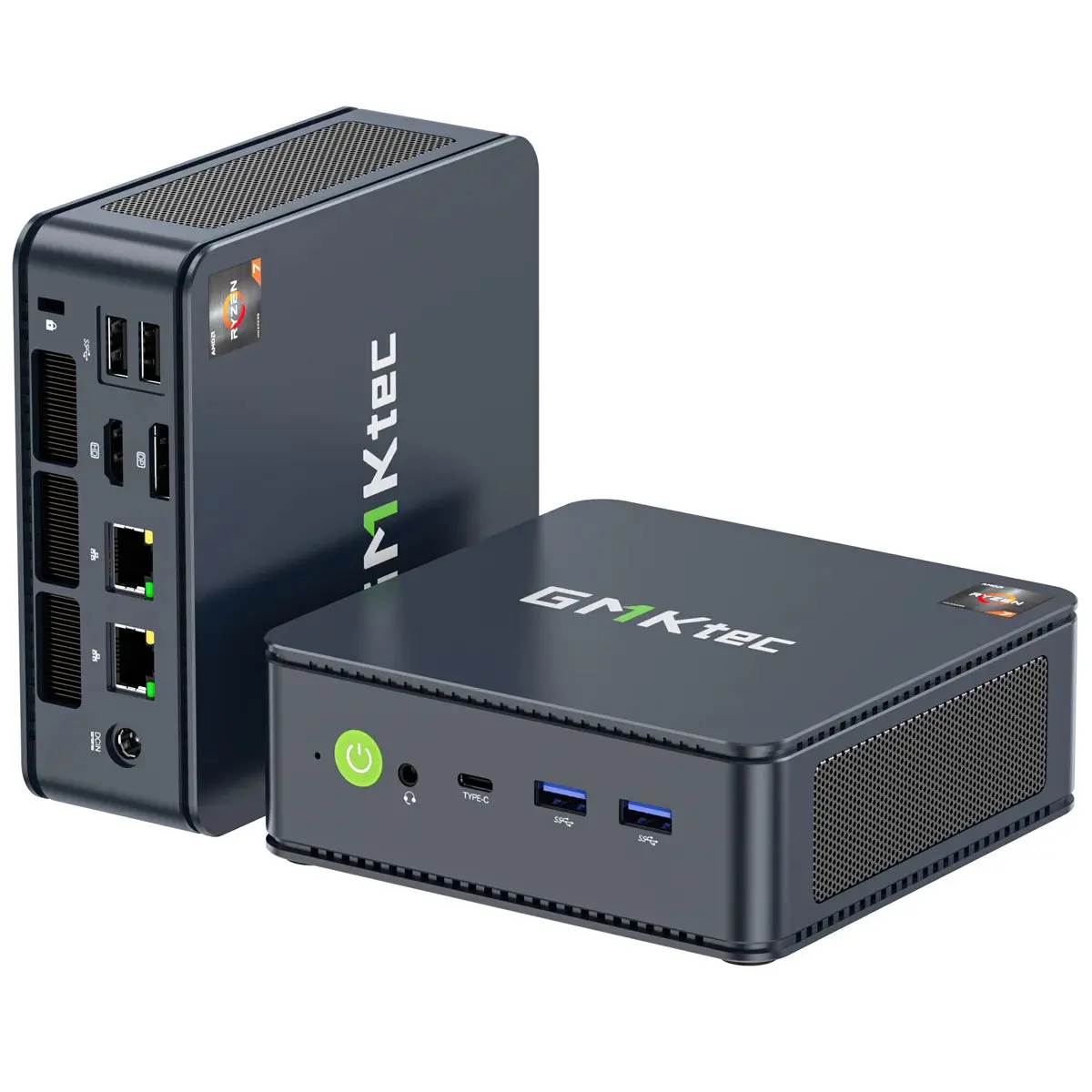

GMKtec NucBox M5 Plus Mini PC AMD Ryzen 7 5825U · 16GB RAM+512GB SSD / US/JP / Black
US · GMKTEC-SKU-D0DB09537C2192CA80C4
Fixed configuration · Store catalog reference
Catalog referenceGMKTEC-SKU-D0DB09537C2192CA80C4
The hardware
Full Specifications
Every published specification, grouped by category. Select a heading to collapse.
Performance — CPU / GPU▾
| Processor | AMD Ryzen 7 5825USource & observationView specification source ↗Observed 2026-10-06T22:46:32.187499+00:00 GMKtec US exact fixed variant and official specification table |
|---|---|
| Graphics | AMD Radeon GraphicsSource & observationView specification source ↗Observed 2026-10-06T22:46:32.187499+00:00 GMKtec US exact fixed variant and official specification table |
Memory & Storage▾
| Installed RAM | 16 GBSource & observationView specification source ↗Observed 2026-10-06T22:46:32.187499+00:00 GMKtec US exact fixed variant and official specification table |
|---|---|
| Total storage | 512 GBSource & observationView specification source ↗Observed 2026-10-06T22:46:32.187499+00:00 GMKtec US exact fixed variant and official specification table |
Display▾
| Screen technology | Not applicable |
|---|---|
| Size | Not applicableSource & observationView specification source ↗Observed 2026-10-06T22:46:32.187499+00:00 GMKtec US exact fixed variant and official specification table |
| Resolution | Not applicableSource & observationView specification source ↗Observed 2026-10-06T22:46:32.187499+00:00 GMKtec US exact fixed variant and official specification table |
| Refresh rate | Not applicableSource & observationView specification source ↗Observed 2026-10-06T22:46:32.187499+00:00 GMKtec US exact fixed variant and official specification table |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T22:46:32.187499+00:00 GMKtec US exact fixed variant and official specification table |
|---|---|
| Power supply | Built-in coin cell battery · DC Power Adapter 19V / 3.42ASource & observationView specification source ↗Observed 2026-10-06T22:46:32.187499+00:00 GMKtec US exact fixed variant and official specification table |
Connectivity▾
| Ports | USB-A: 2 × USB 3.2 Gen2 + 2 × USB 2.0 · HDMI: 1 × HDMI 2.0 (up to 4K@60Hz) · DisplayPort: 1 × DisplayPort (up to 4K@60Hz) · USB-C: 1 × Type-C (USB 3.1 Gen2 / PD / DP / Data, 10Gbps) · Audio: 1 × 3.5mm CTIA Audio Jack · LAN: 2 × RJ45 2.5G Ethernet · Power: 1 × DC IN (5.5 / 2.5mm) · Reset: 1 × Reset ButtonSource & observationView specification source ↗Observed 2026-10-06T22:46:32.187499+00:00 GMKtec US exact fixed variant and official specification table |
|---|---|
| Wireless & networking | Wi-Fi 6 (RZ616, up to 1.2Gbps) · Bluetooth 5.2 · Dual 2.5G Ethernet LAN (Realtek RTL8125)Source & observationView specification source ↗Observed 2026-10-06T22:46:32.187499+00:00 GMKtec US exact fixed variant and official specification table |
Build & Physical▾
| Weight | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T22:46:32.187499+00:00 GMKtec US exact fixed variant and official specification table |
|---|---|
| Dimensions | 128.8 × 127 × 47.8 mmSource & observationView specification source ↗Observed 2026-10-06T22:46:32.187499+00:00 GMKtec US exact fixed variant and official specification table |
Software & Bundle▾
| Operating system | Windows (version unspecified)Source & observationView specification source ↗Observed 2026-10-07T00:38:46.940246+00:00 reviewed evidence |
|---|---|
| Included bundle | User Manual · Warranty Card · Power Adapter · VESA Mount Bracket · HDMI CableSource & observationView specification source ↗Observed 2026-10-06T22:46:32.187499+00:00 GMKtec US exact fixed variant and official specification table |
Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T22:46:32.187499+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T22:46:32.187499+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
1 written reviewBenchmarks & Reviews
Expand benchmarksCollapse benchmarksComparison charts, test conditions & full reviews
Benchmarks & Reviews
Published test results and reviewer comments.
No test results available (for now).
Read the reviews
- TechRadar ↗2025-01-15GMKtec NucBox M5 Plus mini PC
Configuration matching & limitations
TechRadar: Model review. Results describe the tested hardware; unspecified power modes and RAM topology do not establish an exact target test.
gaming pilot
- cpu
- Not measured
- gpu
- Not measured
- gaming
- Not measured
performance pilot
- cpu
- Not measured
- gpu
- Not measured
- gaming
- Not measured
- sustained
- Not measured
whole device
- cpu
- Not measured
- gpu
- Not measured
- gaming
- Not measured
- sustained
- Not measured
- noise
- Not measured
- battery
- not applicable
- display
- not applicable
- build
- Not measured
An overall buying score is unavailable. The available measurements do not cover every aspect of the device.
