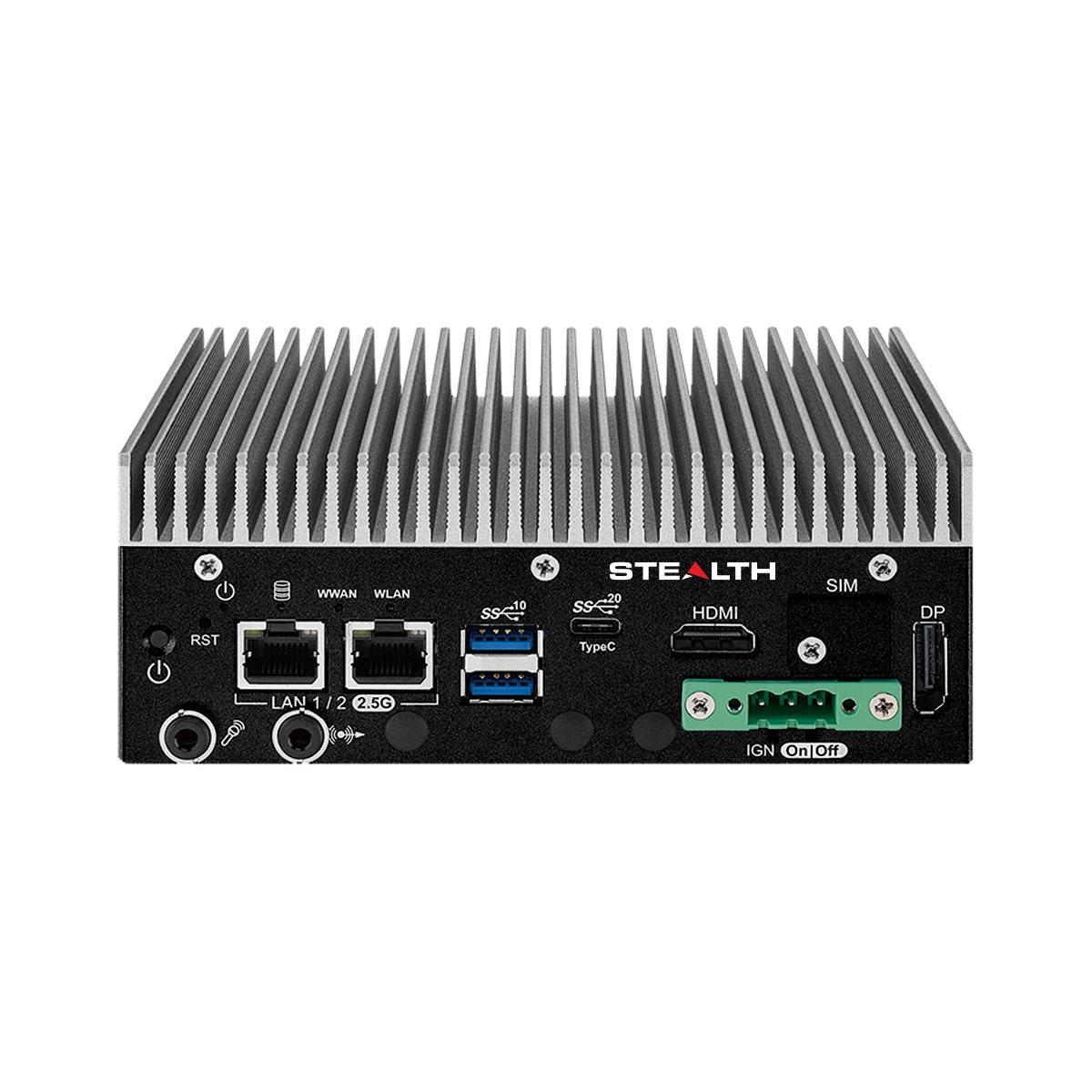

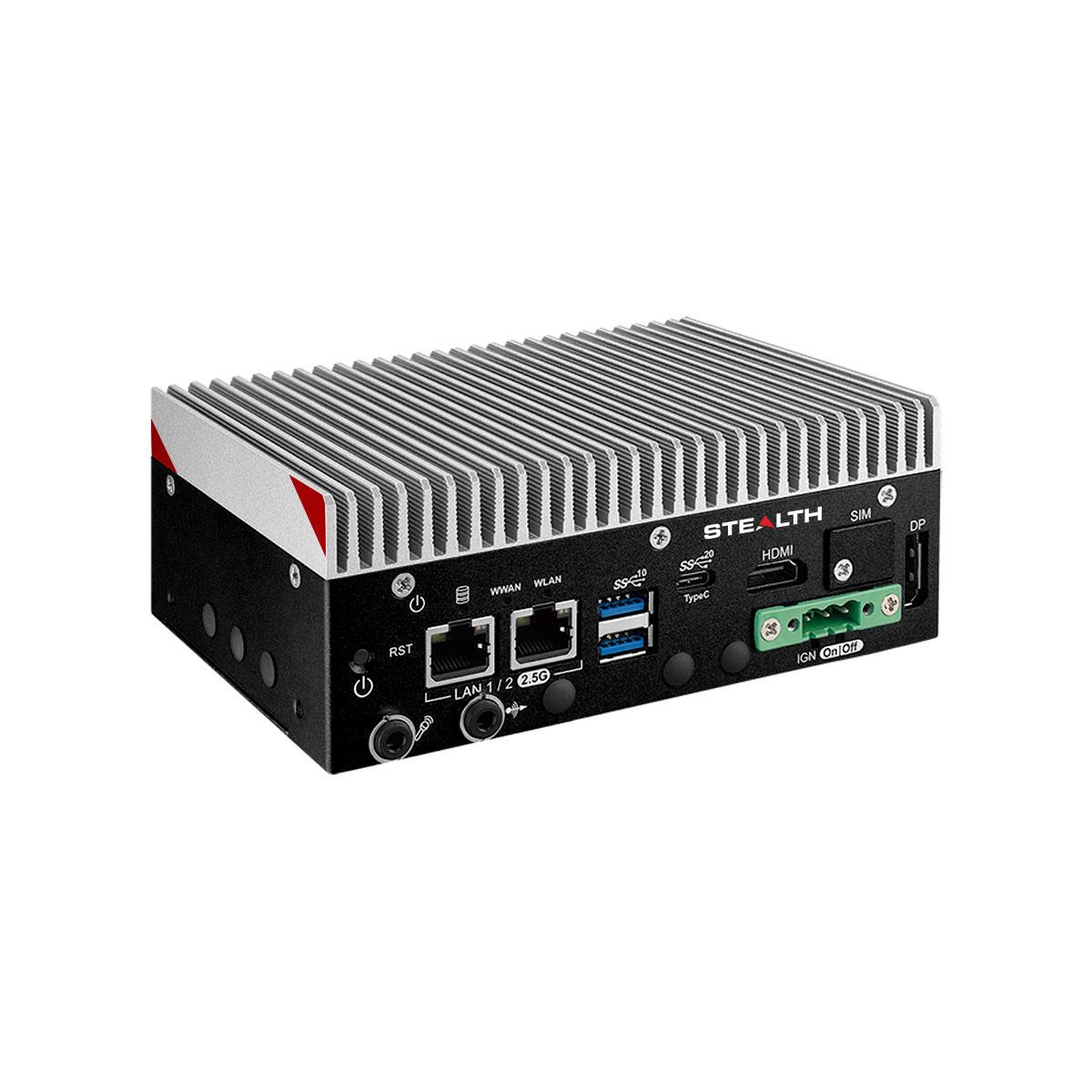

Stealth LPC-925

Documented processor choices and platform support

Advertised base: Unpublished

• Intel Core Ultra 5 135U Processor (12 Cores)
• Intel Core Ultra 7 165U Processor (12 Cores)

Exact technical descriptions, including model-specific generation and socket conditions. Supported processors are not an installed default.

Memory specifications and supported ranges

Advertised base: Unpublished

• 1x DDR5 Memory Socket Supporting up to 32GB of RAM Memory

Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.

Storage specifications and supported ranges

• 256GB TLC SSD (Solid State Drive) Wide Temp standard (SATA)
• Options of up to 2TB SSD (Wide Temperature) internal storage

Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.

Optional or supported networking

• PXE (Pre-Boot Execution Environment) Support
• TSN (Time Sensitive Networking) Support
• WoL (Wake On Lan) Support
• Optional M.2 4G/5G Modem with LTE antenna
• Optional M.2 WiFi LAN 802.11 BT5.0

Radio support or SIM sockets do not establish an installed modem, wireless card or antenna.

System / Chipset

• Intel SoC (Cannon Lake)

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

System / TPM Module

• TPM 2.0 (Trusted Platform Module), provides increased hardware security.

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Physical / Chassis Description

• Fanless Rugged Aluminum Chassis

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Supported operating systems

Advertised base: Unpublished

• Please contact us directly for any special requirements
• Ubuntu Linux
• Windows 10 (64-bit)
• Windows 10 IoT Enterprise
• Windows 11 (64-bit)
• Windows 11 IoT Enterprise
• Windows Server 2022

Manufacturer compatibility list, not confirmation of an installed OS or a selected license. Versions alone never block publication.

Environmental / Environmental

• Humidity: 5% – 95%
• Operating Temperature: -40C – +75C (-40F – +167F)
• Relative Humidity: 95% @ 70C
• Shock: IEC 60068-2-27, SSD: 50G @ wallmount, Half-sine, 11ms
• Storage Temperature: -40C – +85C (-40F – +185F)
• Vibration: IEC 60068-2-64: 5 – 500Hz, 5G RMS, 3 Axis

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Compliance / Approvals

• CE, FCC & RoHS
• EN50121-3-2
• EN50155

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / Options

• 100-240V AC Adapter

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / WatchDog Timer

• 1 to 255 sec/min

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / Warranty

• 1 Year Extended Warranty available (see Configurator/Price List)
• 2 Year Extended Warranty available (see Configurator/Price List)
• 3 Year Limited Warranty, Standard

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / Disclaimer

• Note: Specifications are subject to change without notice.

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
