Stealth LPC-965

Documented processor choices and platform support

Advertised base: Unpublished

• Intel Celeron G4900T (2 Cores / 2 Threads, 2.9Ghz)
• Intel Core i3-9100TE (4 Cores / 4 Threads, up to 3.2Ghz)
• Intel Core i5-9500TE (6 Cores / 6 Threads, up to 3.6Ghz)
• Intel Core i7-9700TE (8 Cores / 8 Threads, up to 3.8Ghz)
• Intel Pentium Gold G5400T (2 Cores / 4 Threads, up to 3.1Ghz)
• Intel Xeon E-2278GEL (8 Cores / 16 Threads, up to 3.90Ghz)
• Supporting Intel Core 9th Generation, and Xeon Processors

Exact technical descriptions, including model-specific generation and socket conditions. Supported processors are not an installed default.

Processor-dependent graphics choices

Advertised base: Unpublished

• Intel HD Graphics 610 (Intel Celeron and Pentium Processors)
• Intel HD Graphics 630 (Intel 9th Generation and Xeon Processors)

Graphics depend on the chosen processor; no optional or CPU-dependent chip is assumed installed.

Memory specifications and supported ranges

Advertised base: Unpublished

• 2x DDR4 Memory Sockets Supporting up to 64GB of RAM / Memory
• Optional ECC Memory Support (available for Celeron, Pentium, Core i3 and Xeon CPUs only)

Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.

Storage specifications and supported ranges

• 256GB TLC SSD (Solid State Drive) Wide Temp standard (SATA)
• Optional Onboard RAID configurations (0, 1), requires multiple drives
• Options of up to 2TB SSD internal storage.

Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.

Optional or supported networking

• Intel iAMT 12.0 Support (Lan 1)
• Optional 802.11 b/g/n/ac Dual Band (2.4Ghz / 5Ghz) Wireless Networking and Bluetooth 4.0, Realtek RTL8821AE via internal Mini-PCIe
• PXE (Pre-Boot Execution Environment) Support
• WoL (Wake On Lan) Support

Radio support or SIM sockets do not establish an installed modem, wireless card or antenna.

Expansion / Internal Expansion

• 1x M.2 A-E Key 2230 Slot
• 1x M.2 M-key, 2280
• 2x Internal full sized Mini-PCIe expansion slots

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

System / Chipset

• Intel C246

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

System / TPM Module

• TPM 2.0 (Trusted Platform Module), provides increased hardware security.

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Physical / Chassis Description

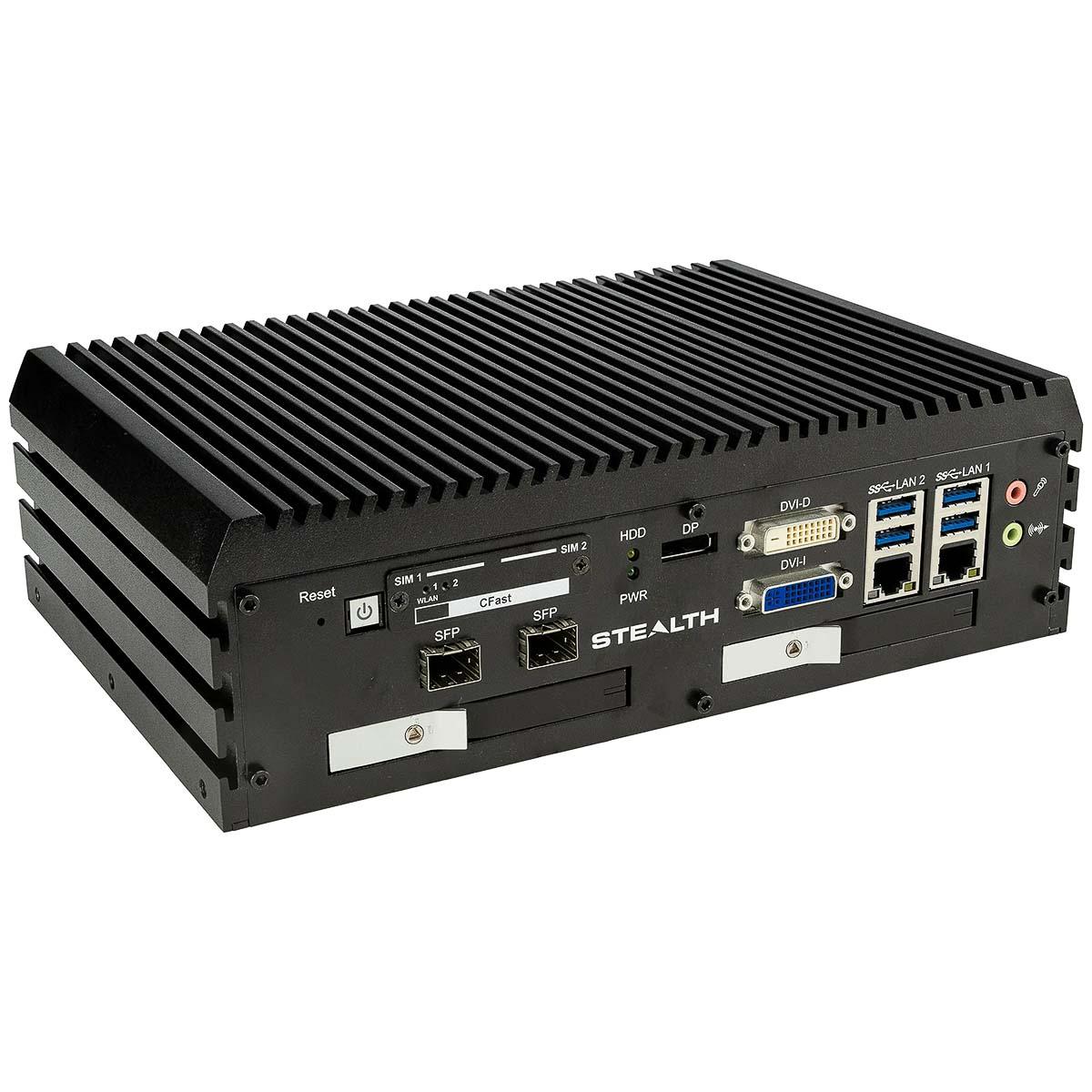

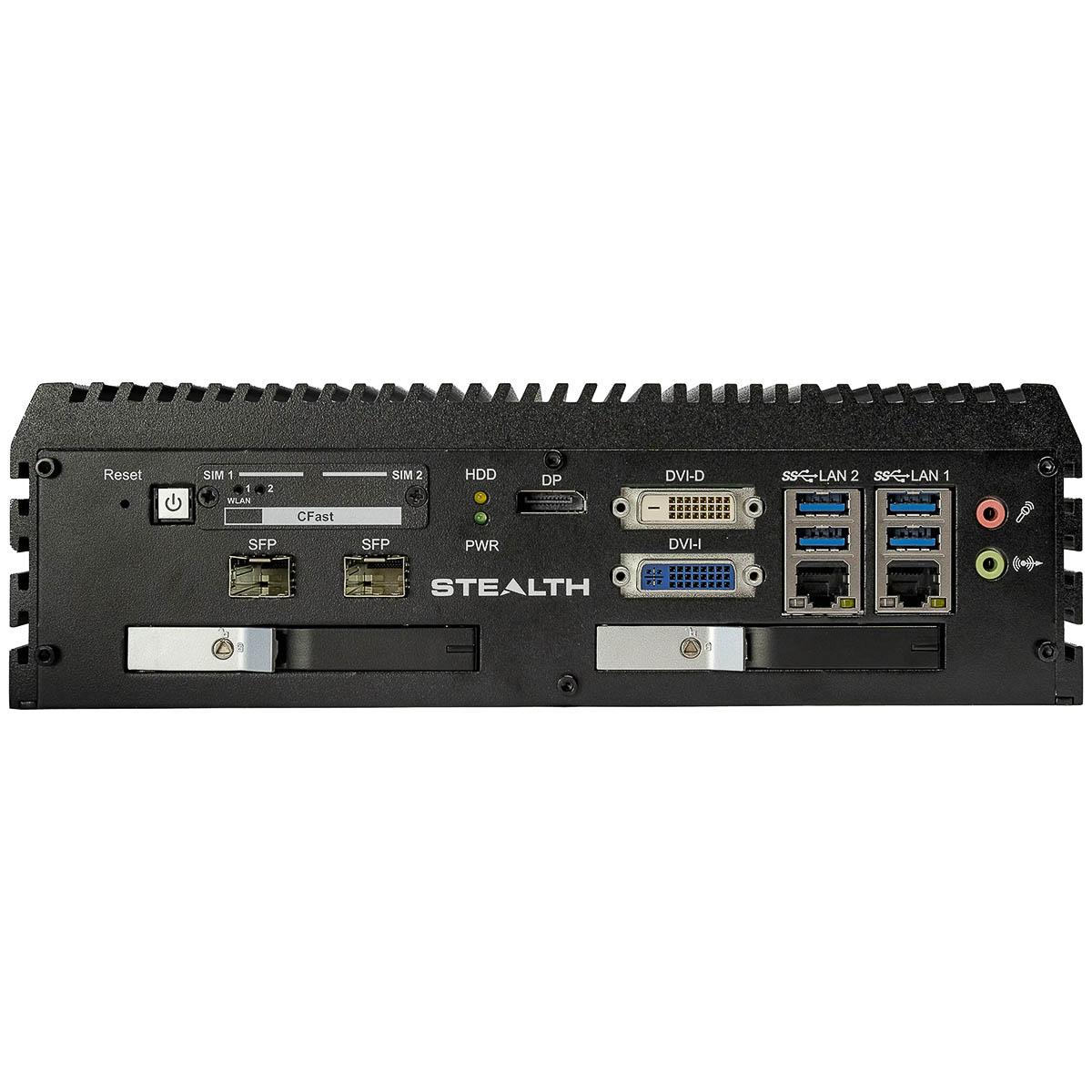

• Fanless Rugged Aluminum Chassis

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Supported operating systems

Advertised base: Unpublished

• Ubuntu Linux
• Windows 10 (64-bit)
• Windows 10 IoT Enterprise
• Windows 11 (64-bit)
• Windows Server 2022

Manufacturer compatibility list, not confirmation of an installed OS or a selected license. Versions alone never block publication.

Environmental / Environmental

• Humidity: 5% – 95%
• Operating Temperature: -40C – +75C (-40F – +167F)
• Shock: IEC 60068-2-27, SSD: 50G @ wallmount, Half-sine, 11ms
• Storage Temperature: -40C – +85C (-40F – +185F)
• Vibration: IEC 60068-2-64: 5 – 500Hz, 5G RMS, 3 Axis

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Compliance / Approvals

• CE
• EN50121-3-2
• EN50155
• FCC
• RoHS

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / Warranty

• 1 Year Extended Warranty available (see Configurator/Price List)
• 2 Year Extended Warranty available (see Configurator/Price List)
• 3 Year Limited Warranty, Standard

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / Disclaimer

• Note: Specifications are subject to change without notice.

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
