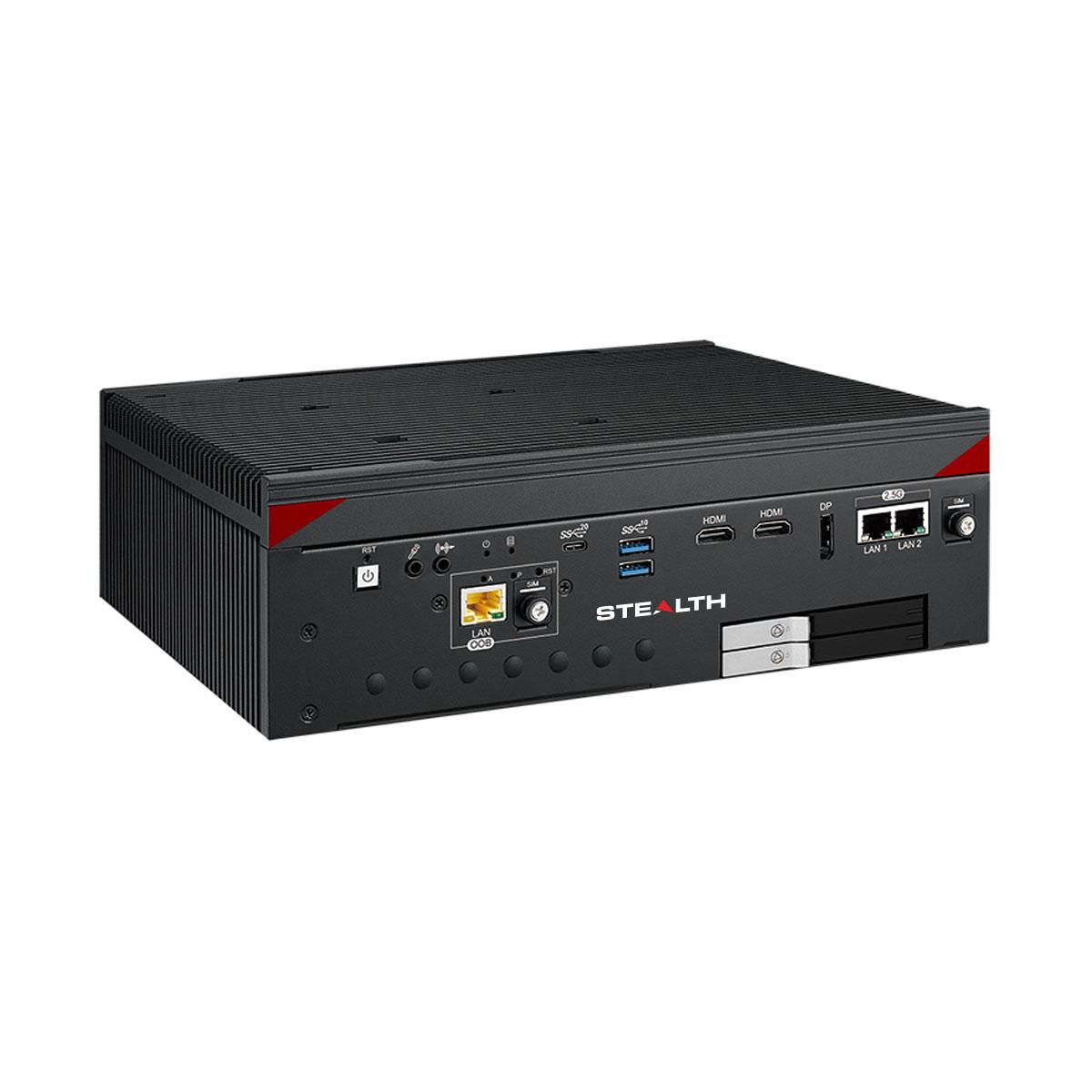

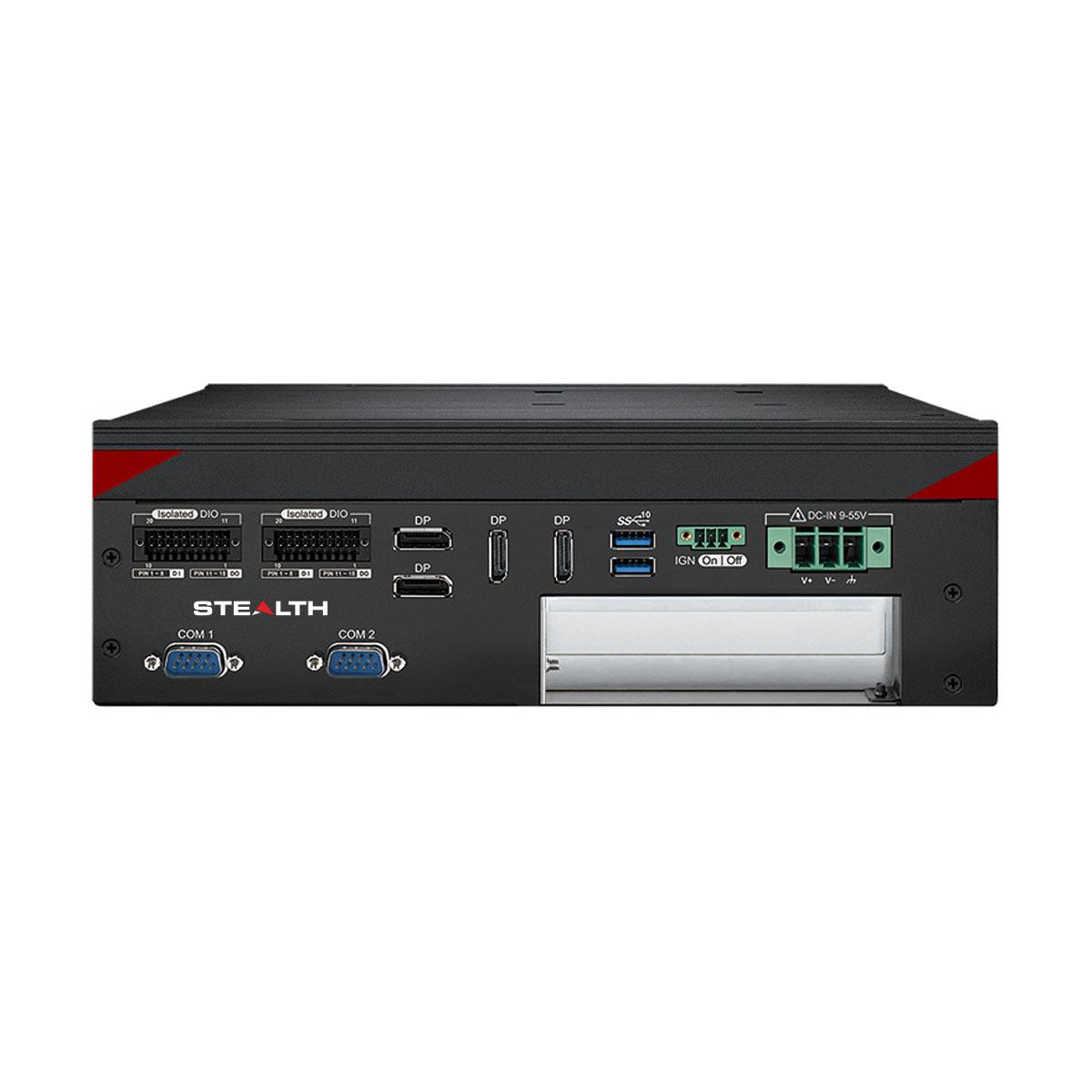

Stealth LPC-970

Documented processor choices and platform support

Advertised base: Unpublished

• Intel Core i3-12100TE (4 Cores / 8 Threads, up to 4.3Ghz)
• Intel Core i5-12500TE (6 Cores / 12 Threads, up to 4.3Ghz)
• Intel Core i7-12700TE (12 Cores / 20 Threads, up to 4.6Ghz)
• Intel Core i9-12900TE (16 Cores / 24 Threads, up to 4.80GHz)
• Supporting Intel's 14th Generation Core Processors

Exact technical descriptions, including model-specific generation and socket conditions. Supported processors are not an installed default.

Processor-dependent graphics choices

Advertised base: Unpublished

• Intel UHD Graphics 770
• NVIDIA GeForce Quadro T1000 providing 4x DisplayPorts

Graphics depend on the chosen processor; no optional or CPU-dependent chip is assumed installed.

Memory specifications and supported ranges

Advertised base: Unpublished

• 2x DDR5 Memory Sockets supporting up to 64GB of RAM/Memory (Applicable with 12th Gen Processors)

Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.

Storage specifications and supported ranges

Advertised base: Unpublished

• Options of up to 2TB SSD internal storage.
• SATA III (6Gb/s and 3Gb/s) support

Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.

Removable Storage

Advertised base: Unpublished

• 2x Removable 2.5" Drive Bays

Drive bays, RAID prerequisites and removable/optical drives describe capabilities or optional additions, not installed drive counts or capacity.

Optional or supported networking

• Optional 801.11a/b/g/n/ac Dual Band (2.4GHz and 5GHz) + Bluetooth via M.2 2230 Slot (Realtek RTL8822CE)
• PXE (Pre-Boot Execution Environment) Support
• TSN (Time Sensitive Networking) Support
• WoL (Wake On Lan) Support
• Optional M.2 4G/5G Modem with LTE antenna
• Optional M.2 WiFi LAN 802.11 BT5.0

Radio support or SIM sockets do not establish an installed modem, wireless card or antenna.

Expansion / Internal Expansion

• 1x M.2 Key B Socket Gen 4 (2280/3042/3052, PCIe/USB 3, default/SATA)
• 1x M.2 Key E Socket Gen 4 (2230, PCIe/USB)

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Expansion / Expansion Slots

• 1x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)
• 1x PCIe 4.0 x16 slot

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

System / Chipset

• Intel R680E

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

System / TPM Module

• TPM 2.0 (Trusted Platform Module), provides increased hardware security.

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Physical / Chassis Description

• Fanless Rugged Aluminum Chassis

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Supported operating systems

Advertised base: Unpublished

• Ubuntu Linux
• Windows 10 (64-bit)
• Windows 10 IoT Enterprise
• Windows 11 (64-bit)
• Windows 11 IoT Enterprise
• Windows Server 2022

Manufacturer compatibility list, not confirmation of an installed OS or a selected license. Versions alone never block publication.

Environmental / Environmental

• Humidity: 5% – 95%
• Non-Operating/Storage: 5% – 90%, non-condensing
• Operating Temperature: -10C – +50C (+14F – +122F)
• Shock: IEC 60068-2-27, SSD: 50G @ wallmount, Half-sine, 11ms
• Vibration: IEC 60068-2-64: 5 – 500Hz, 5G RMS, 3 Axis

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Compliance / Approvals

• CE
• EN50121-3-2
• EN50155
• FCC
• RoHS

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Physical / Mounting

• Rack Mounting (optional)

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / Options

• 1. Not included by default, need to be ordered separately
• 100-240V AC Adapter

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / Warranty

• 1 Year Extended Warranty available (see Configurator/Price List)
• 2 Year Extended Warranty available (see Configurator/Price List)
• 3 Year Limited Warranty, Standard

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
