Stealth/Mini PCs
Stealth LPC-815a
US · STEALTH-ITEM-267472
Configurable device · Advertised base configuration
Configurable modelSTEALTH-ITEM-267472
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
| Graphics | Integrated Intel HD GraphicsSource & observationView specification source ↗Observed 2026-10-04T03:09:31.886296+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
|---|
Documented processor choices and platform support
- Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz)
Exact technical descriptions, including model-specific generation and socket conditions. Supported processors are not an installed default.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 8 GBSource & observationView specification source ↗Observed 2026-10-04T03:09:31.886296+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
|---|
Memory specifications and supported ranges
- 8GB DDR3 Wide Temperature SO-Dimm RAM (standard)
Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.
Manufacturer options ↗Storage specifications and supported ranges
- 256GB TLC SSD (Solid State Drive) Wide Temp standard (SATA)
- Options of up to 2TB SSD (Wide Temperature) internal storage
Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.
Manufacturer options ↗Display▾
| Screen technology | Not applicable |
|---|---|
| Size | Not applicableSource & observationView specification source ↗Observed 2026-10-04T03:09:31.886296+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
| Resolution | Not applicableSource & observationView specification source ↗Observed 2026-10-04T03:09:31.886296+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
| Refresh rate | Not applicableSource & observationView specification source ↗Observed 2026-10-04T03:09:31.886296+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-04T03:09:31.886296+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
|---|---|
| Power supply | Includes External AC Adapter, Input 100–240V AC @ 1.4A 50-60Hz · Input: 9–48V DC · Power Mode: AT & ATX · Power Protection: OVP (Over Voltage Protection), OCP (Over Current Protection) & Reverse Protection · Rear Locking 3-Pin power Jack ideal for mobile applicationsSource & observationView specification source ↗Observed 2026-10-04T03:09:31.886296+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
Connectivity▾

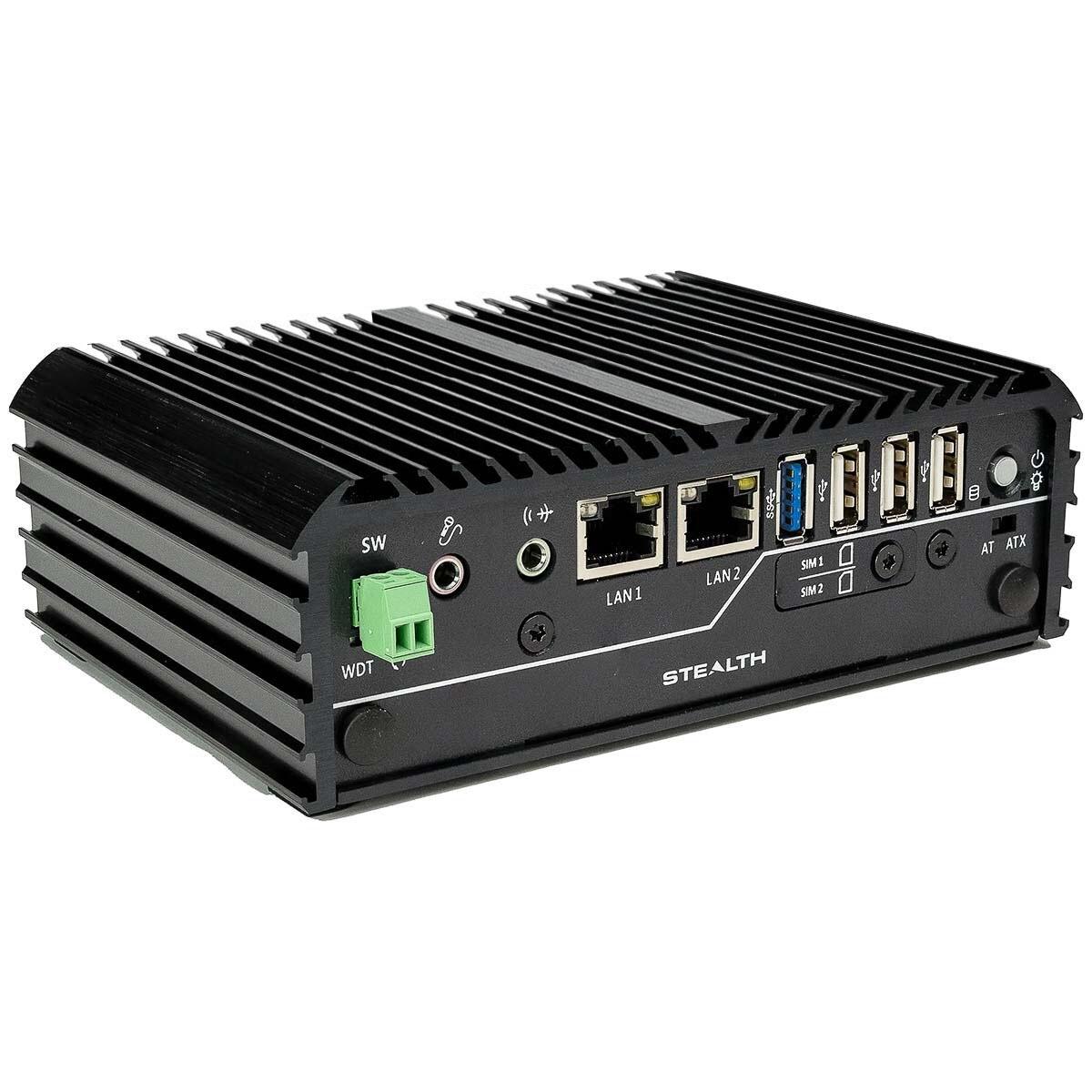

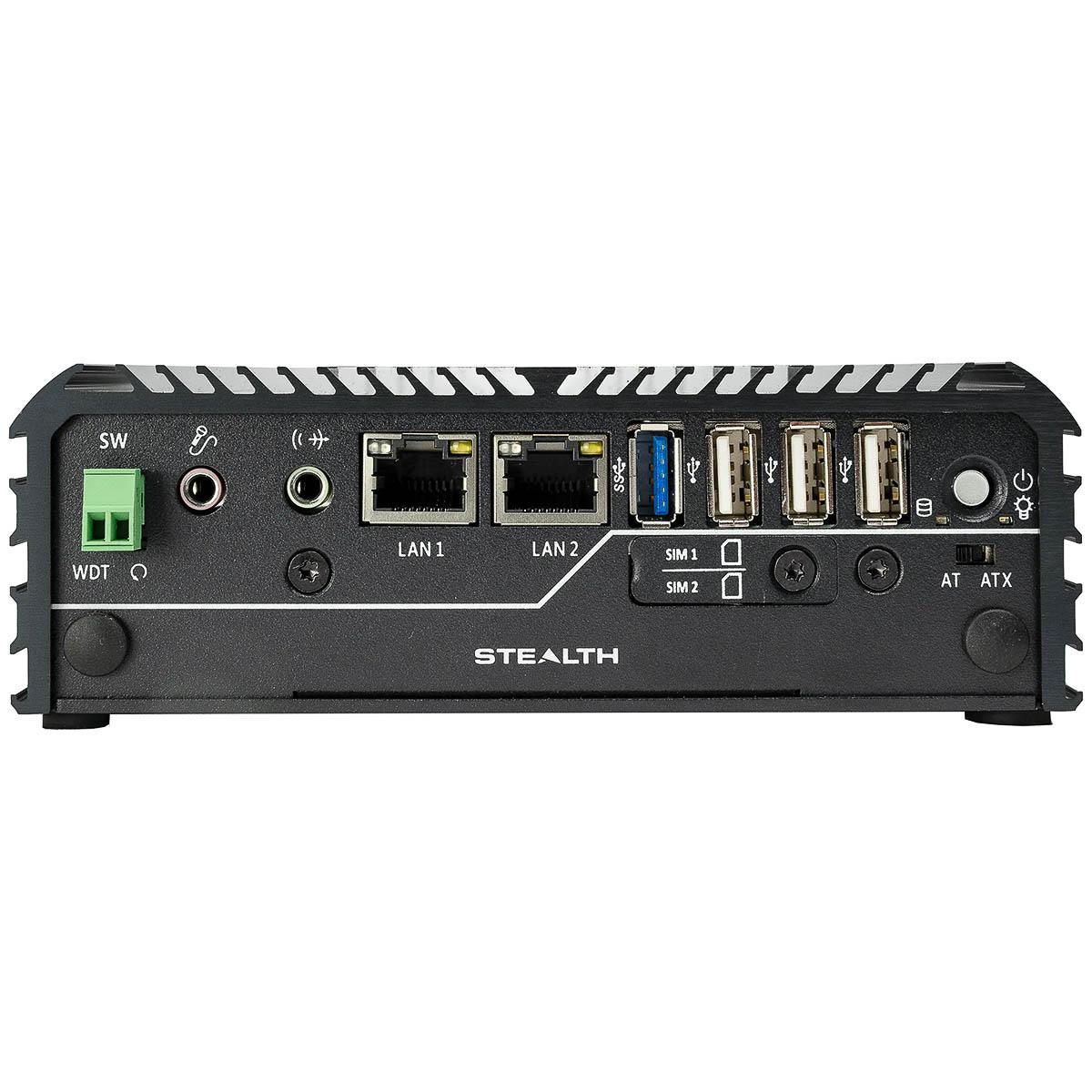

| Ports | Front panel: 1x USB 3.0 Port · Front panel: 2x 10/100/1000 RJ45 Network connections · Front panel: 3x USB 2.0 Ports · Front panel: AT / ATX Switch · Front panel: Audio Line-Out Jack · Front panel: Microphone Input Jack · Front panel: Power-on button · Rear panel: 1x DisplayPort video connector · Rear panel: 1x DVI-I Video Connector · Rear panel: 2x RS232/422/485 Serial Ports · Rear panel: 4x DIO (Digital input/output) with Isolation · Rear panel: 9 – 48V DC ConnectorSource & observationView specification source ↗Observed 2026-10-04T03:09:31.886296+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
|---|
Optional or supported networking
- 2x onboard Gigabit Ethernet controllers, RJ-45 interface, PXE and WoL Supported
- Optional 802.11 b/g/n/ac Dual Band (2.4Ghz / 5Ghz) Wireless Networking and Bluetooth 4.0, Realtek RTL8821AE via internal Mini-PCIe
- 2x External SIM card sockets standard for 4G wireless connectivity
Radio support or SIM sockets do not establish an installed modem, wireless card or antenna.
Manufacturer options ↗Expansion / Internal Expansion
- 2x Internal full sized Mini-PCIe expansion slots
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Build & Physical▾
| Weight | 860 gSource & observationView specification source ↗Observed 2026-10-04T03:09:31.886296+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
|---|---|
| Dimensions | (W-D-H) 5.9" x 4.13" x 1.9" (150mm x 105mm x 49mm)Source & observationView specification source ↗Observed 2026-10-04T03:09:31.886296+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
System / Chipset
- SoC integrated
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗System / TPM Module
- TPM 2.0 (Trusted Platform Module), provides increased hardware security.
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Physical / Chassis Description
- Fanless Rugged Aluminum Chassis
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Software & Bundle▾
| Included bundle | 100-240V AC Adapter · DVI to VGA Adapter · North American Power Cord · Wall Mount BracketSource & observationView specification source ↗Observed 2026-10-04T03:09:31.886296+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
|---|
Supported operating systems
Advertised base: Unpublished
- Please contact us directly for any special requirements
- Ubuntu Linux
- Windows 10 (64-bit)
- Windows 7 (32 and 64-bit)
- Windows 8.1 (32 and 64-Bit)
- Windows Server 2022
Manufacturer compatibility list, not confirmation of an installed OS or a selected license. Versions alone never block publication.
Manufacturer options ↗System / Hardware Monitor
- Processor temperature
- Voltage
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Environmental / Environmental
- Humidity: 10% – 95%
- Operating Temperature: -25C – 70C (-13F – +158 F)
- Shock: 50G, half sine, 11ms (with SSD)
- Vibration: 5 – 500Hz, 5G RMS, 0.5 hr/axis
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Compliance / Approvals
- CE
- FCC
- RoHS
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Physical / Mounting
- DIN Rail Mount
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗General / Options
- External USB DVD+-RW/CD-RW Drive
- Optional 802.11 b/g/n/ac Dual Band (2.4Ghz / 5Ghz) Wireless Networking and Bluetooth, Intel AC7260 via internal Mini-PCIe
- Remote power option Ideal for OEM or Cabinet manufacturers
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗General / WatchDog Timer
- System Reset
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗General / Warranty
- 1 Year Extended Warranty available (see Configurator/Price List)
- 2 Year Extended Warranty available (see Configurator/Price List)
- 3 Year Limited Warranty, Standard
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗General / Disclaimer
- Note: Specifications are subject to change without notice.
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-04T03:09:31.886296+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-04T03:09:31.886296+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
