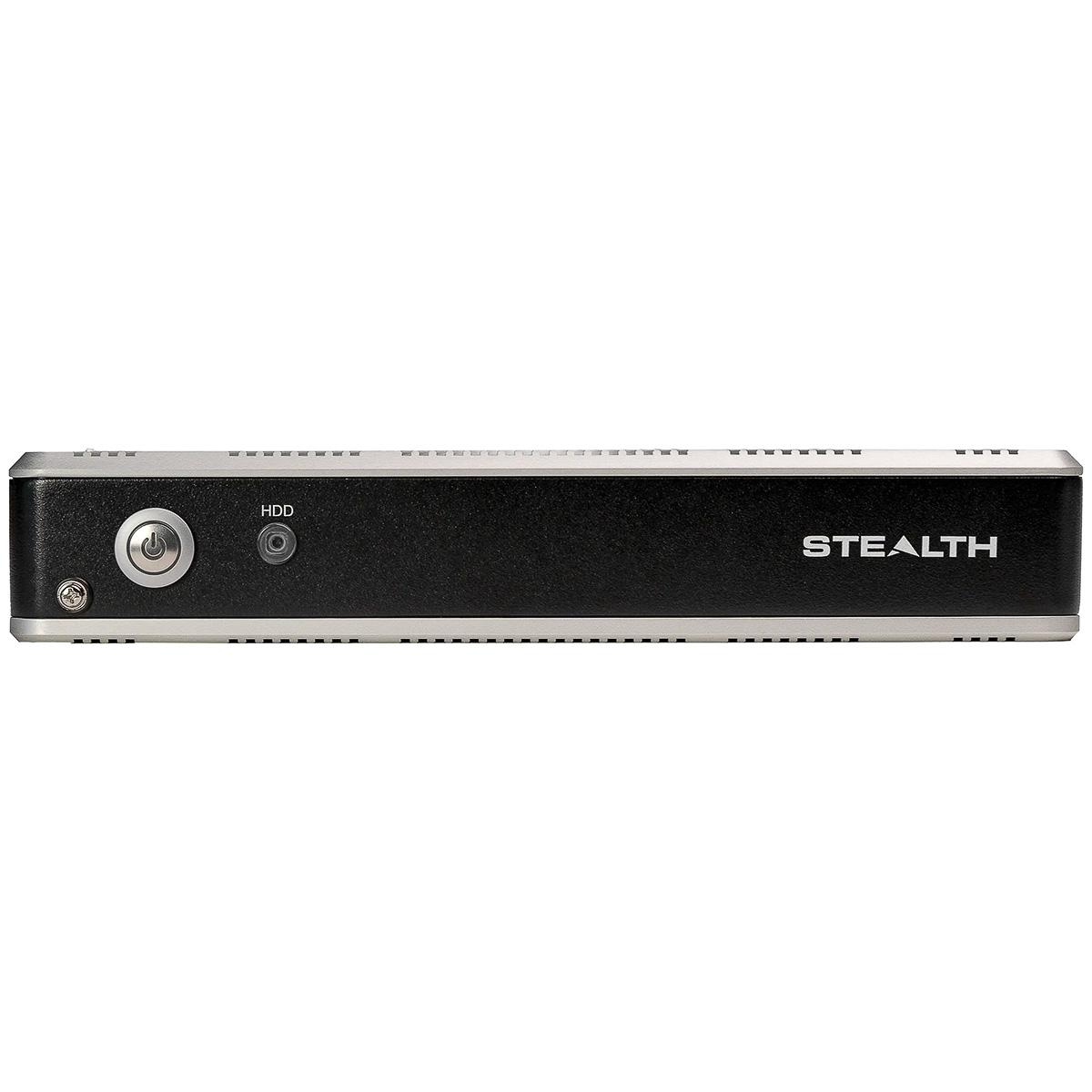

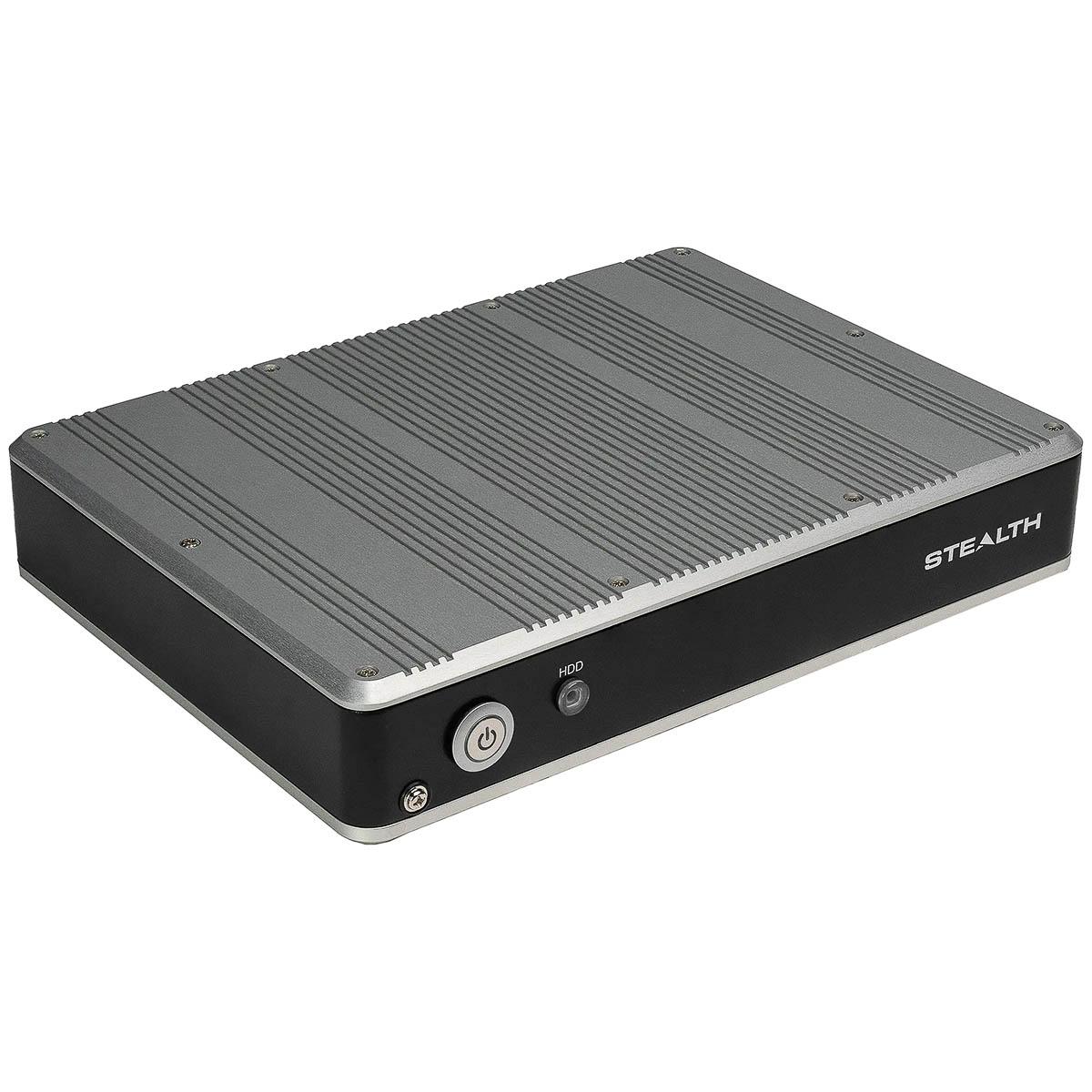

Stealth WPC-905

Documented processor choices and platform support

Advertised base: Unpublished

• Intel Celeron 4305UE (2 Cores / 2 Threads, 2.00 GHz)
• Intel Core i3-8145UE (2 Cores / 4 Threads, up to 3.90 GHz)
• Intel Core i5-8365UE (4 Cores / 8 Threads, up to 4.10 GHz)
• Intel Core i7-8665UE (4 Cores / 8 Threads, up to 4.40 GHz)
• Supporting Intel's 8th Generation Core Processors

Exact technical descriptions, including model-specific generation and socket conditions. Supported processors are not an installed default.

Processor-dependent graphics choices

Advertised base: Unpublished

• Intel HD Graphics 610 (Intel Celeron and Pentium Processors)
• Intel UHD Graphics 620 (Intel 8th Generation Processors)

Graphics depend on the chosen processor; no optional or CPU-dependent chip is assumed installed.

Memory specifications and supported ranges

Advertised base: Unpublished

• 1x DDR4 SO-DIMM Memory Slot, up to 32GB

Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.

Storage specifications and supported ranges

Advertised base: Unpublished

• 2x 2.5" Internal Drive bays
• Optional 1x mSATA drive support
• Optional Onboard RAID configurations (0, 1), requires multiple drives
• Options of up to 2TB SSD internal storage.

Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.

Optional or supported networking

• Intel iAMT 11.0 Supported (LAN 1)
• PXE (Pre-Boot Execution Environment) Support
• WoL (Wake On Lan) Support

Radio support or SIM sockets do not establish an installed modem, wireless card or antenna.

Expansion / Internal Expansion

• 1x Full size Mini-PCIe slot, supports PCIe, mSATA and USB interface

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

System / Chipset

• Intel SoC (Cannon Lake)

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

System / TPM Module

• TPM 2.0 (Trusted Platform Module), provides increased hardware security.

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Physical / Chassis Description

• Completely Sealed Water, dust & debris Proof enclosure
• Fanless Design
• Fully IP67/NEMA 6 rated, Highest level for Dust and Water Proof
• Rugged Aluminum Chassis
• Vesa 75mm/100mm Mounting on bottom

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Supported operating systems

Advertised base: Unpublished

• Please contact us directly for any special requirements
• Ubuntu Linux
• Windows 10 (64-bit)
• Windows 11 (64-bit)
• Windows Server 2022

Manufacturer compatibility list, not confirmation of an installed OS or a selected license. Versions alone never block publication.

System / Hardware Monitor

• Processor temperature
• System temperature
• Voltage

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Environmental / Environmental

• Humidity: 5% – 95%
• Operating Temperature: -30C – +70C (-22F – +158F)
• Relative Humidity: 95% @ 70C
• Storage Temperature: -40C – +85C (-40F – +185F)

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Compliance / Approvals

• CE
• EN50121-3-2
• EN50155
• FCC
• RoHS
• Shock Operating: 15g/11ms, ½ sine, 3 shocks in +ve and -ve direction, all 3 axes (IEC 60068-2-27)
• Shock Storage: 50g/11ms, ½ sine, 3 shocks in +ve and -ve direction, all 3 axes (IEC 60068-2-27)

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / Warranty

• 1 Year Extended Warranty available (see Configurator/Price List)
• 2 Year Extended Warranty available (see Configurator/Price List)
• 3 Year Limited Warranty, Standard

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / Disclaimer

• Note: Specifications are subject to change without notice.

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
