Stealth/Mini PCs
Stealth LPC-825A
US · STEALTH-ITEM-268717
Configurable device · Advertised base configuration
Configurable modelSTEALTH-ITEM-268717
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
Documented processor choices and platform support
Advertised base: Unpublished
- Intel Atom x6425E Processor
- Supports in-board ECC
Exact technical descriptions, including model-specific generation and socket conditions. Supported processors are not an installed default.
Manufacturer options ↗Processor-dependent graphics choices
Advertised base: Unpublished
- Intel UHD Graphics (Intel 10th Generation Processors)
Graphics depend on the chosen processor; no optional or CPU-dependent chip is assumed installed.
Manufacturer options ↗Memory & Storage▾
Memory specifications and supported ranges
Advertised base: Unpublished
- 1x DDR4 SO-DIMM Memory Slot, up to 32GB
Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.
Manufacturer options ↗Storage specifications and supported ranges
- 256GB TLC SSD (Solid State Drive) Wide Temp standard (SATA)
- Options of up to 2TB SSD (Wide Temperature) internal storage
Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.
Manufacturer options ↗Display▾
| Screen technology | Not applicable |
|---|---|
| Size | Not applicableSource & observationView specification source ↗Observed 2026-10-04T03:09:35.366496+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
| Resolution | Not applicableSource & observationView specification source ↗Observed 2026-10-04T03:09:35.366496+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
| Refresh rate | Not applicableSource & observationView specification source ↗Observed 2026-10-04T03:09:35.366496+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-04T03:09:35.366496+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
|---|---|
| Power supply | 9–36V DC Input, Includes External AC Adapter · Power Mode: AT & ATX · Power Protection: OVP (Over Voltage Protection), OCP (Over Current Protection) & Reverse ProtectionSource & observationView specification source ↗Observed 2026-10-04T03:09:35.366496+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
Connectivity▾

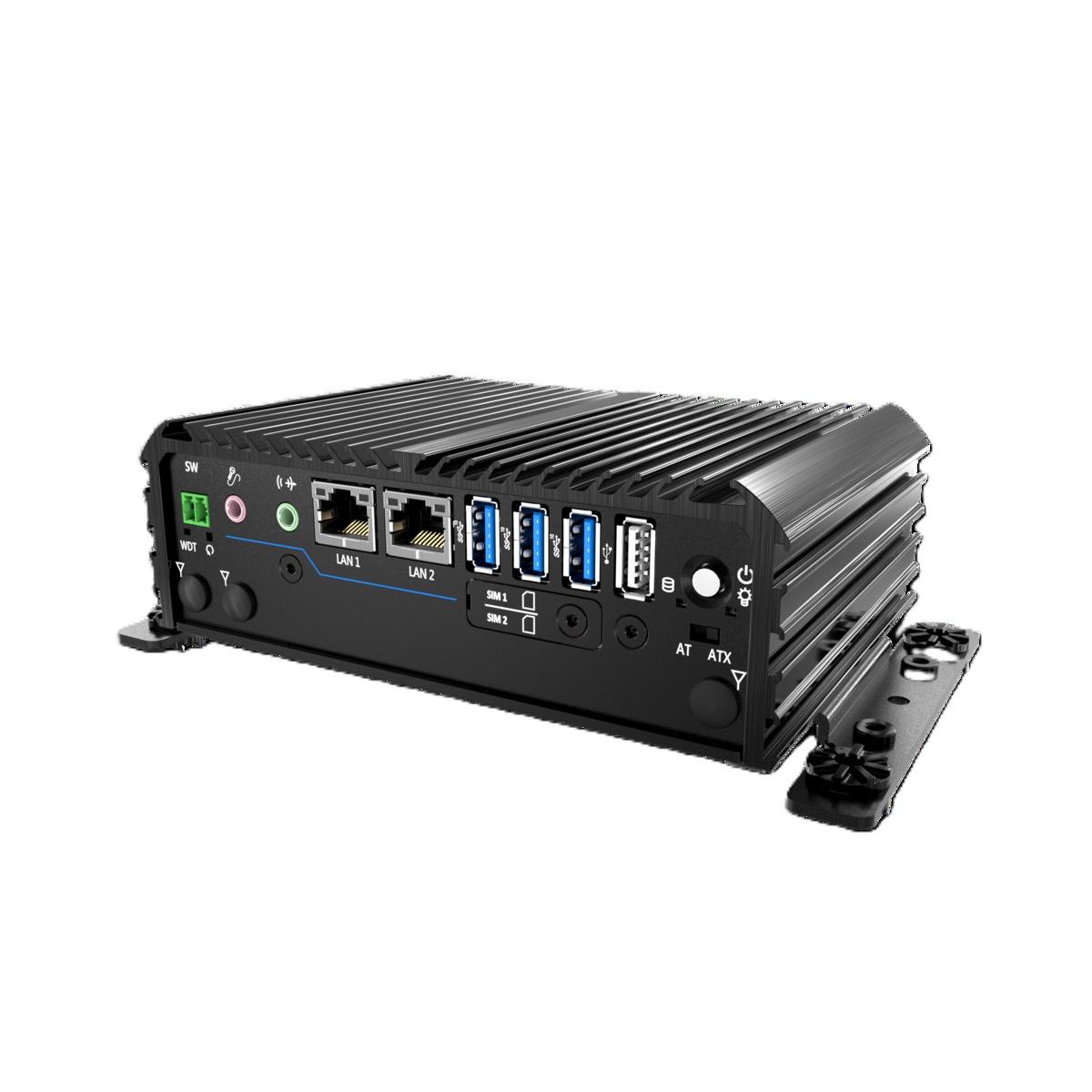

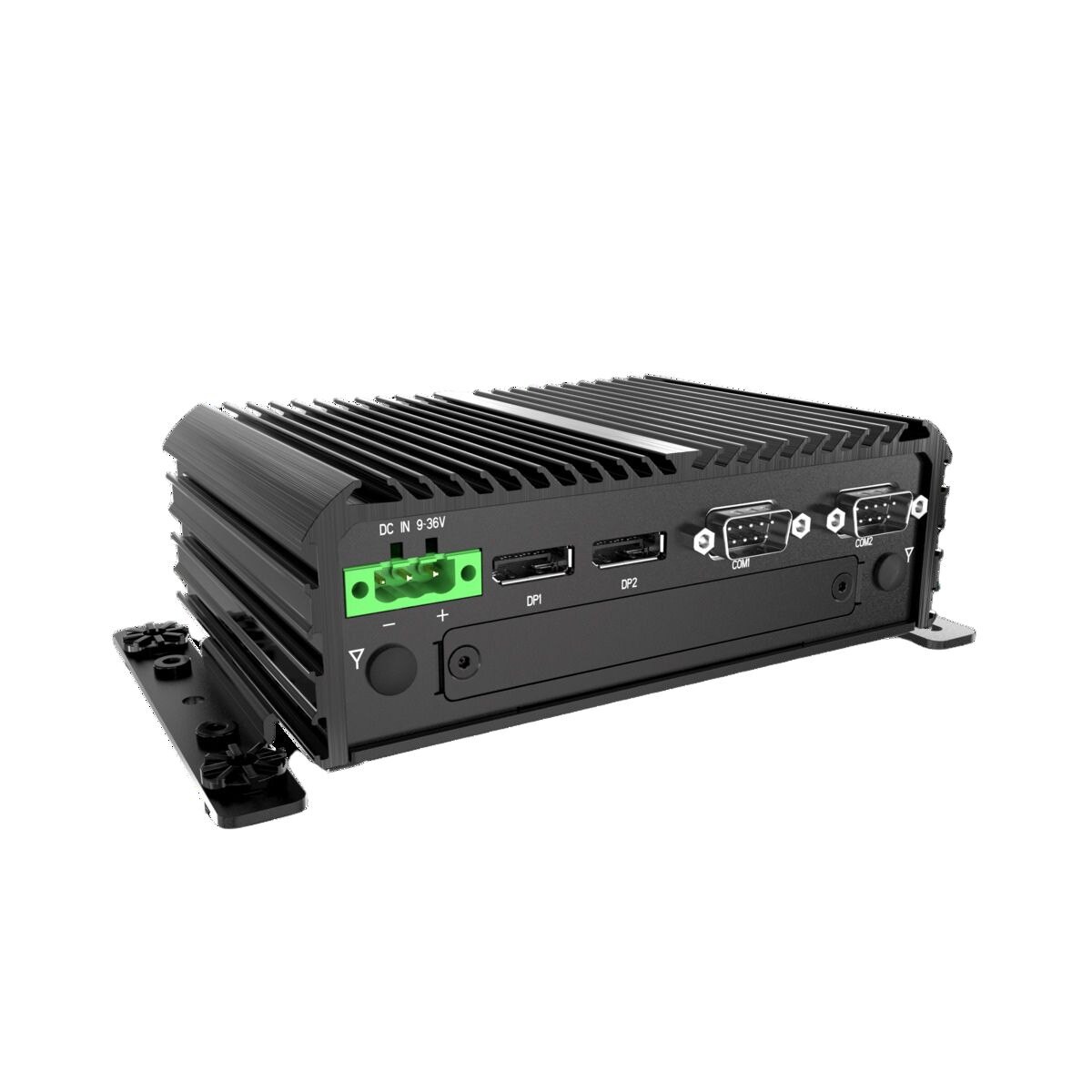

| Ports | Front panel: 1x USB 3.0 Port · Front panel: 2x SIM Communications Slots (5G, 4G/LTE) · Front panel: 3x USB 3.2 Gen 2 Ports · Front panel: AT / ATX Switch · Front panel: Headphone/Audio Line-Out Jack · Front panel: Power-on button · Front panel: Remote Power Connector · Rear panel: 2x DisplayPort Video connectors · Rear panel: 2x RS232/422/485 Serial Ports · Rear panel: 9 – 26V DC ConnectorSource & observationView specification source ↗Observed 2026-10-04T03:09:35.366496+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
|---|
Optional or supported networking
- 1x onboard 2.5Gb Ethernet controller, RJ-45 interface, PXE and WoL Supported
- 1x onboard Gigabit Ethernet controller, RJ-45 interface, PXE and WoL Supported
- 2x External SIM card sockets standard for 4G wireless connectivity
- Single/Dual channel CAN Bus (optional)
Radio support or SIM sockets do not establish an installed modem, wireless card or antenna.
Manufacturer options ↗Expansion / Internal Expansion
- 1x M.2 B-key, 2242/3042/3052
- PCIe x1 + USB 3.2 Gen2
- Supports 4G/5G mPCI Module
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Build & Physical▾
| Weight | 900 gSource & observationView specification source ↗Observed 2026-10-04T03:09:35.366496+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
|---|---|
| Dimensions | (W-D-H) 5.9" x 4.13" x 1.9" (150mm x 105mm x 49mm)Source & observationView specification source ↗Observed 2026-10-04T03:09:35.366496+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
System / TPM Module
- TPM 2.0 (Trusted Platform Module), provides increased hardware security.
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Physical / Chassis Description
- Fanless Rugged Aluminum Chassis
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Software & Bundle▾
| Included bundle | 100-240V AC Adapter · North American Power Cord · Wall Mount BracketSource & observationView specification source ↗Observed 2026-10-04T03:09:35.366496+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
|---|
Supported operating systems
Advertised base: Unpublished
- Please contact us directly for any special requirements
- Ubuntu Linux
- Windows 10 (64-bit)
- Windows 10 IoT Enterprise
- Windows 11 (64-bit)
- Windows Server 2022
Manufacturer compatibility list, not confirmation of an installed OS or a selected license. Versions alone never block publication.
Manufacturer options ↗System / Hardware Monitor
- Processor temperature
- Voltage
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Environmental / Environmental
- Humidity: 10% – 95%
- Operating Temperature: -40C – +70C (-40 to +158F)
- Shock: 50G, half sine, 11ms (with SSD)
- Storage: -40C to +85C (-40F to +185F)
- Vibration: 5 – 500Hz, 5G RMS, 0.5 hr/axis
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Compliance / Approvals
- CE
- FCC
- RoHS
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗General / WatchDog Timer
- 1 to 255 sec/min
- System Reset
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗General / Warranty
- 1 Year Extended Warranty available (see Configurator/Price List)
- 2 Year Extended Warranty available (see Configurator/Price List)
- 3 Year Limited Warranty, Standard
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗General / Disclaimer
- Note: Specifications are subject to change without notice.
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-04T03:09:35.366496+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-04T03:09:35.366496+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
