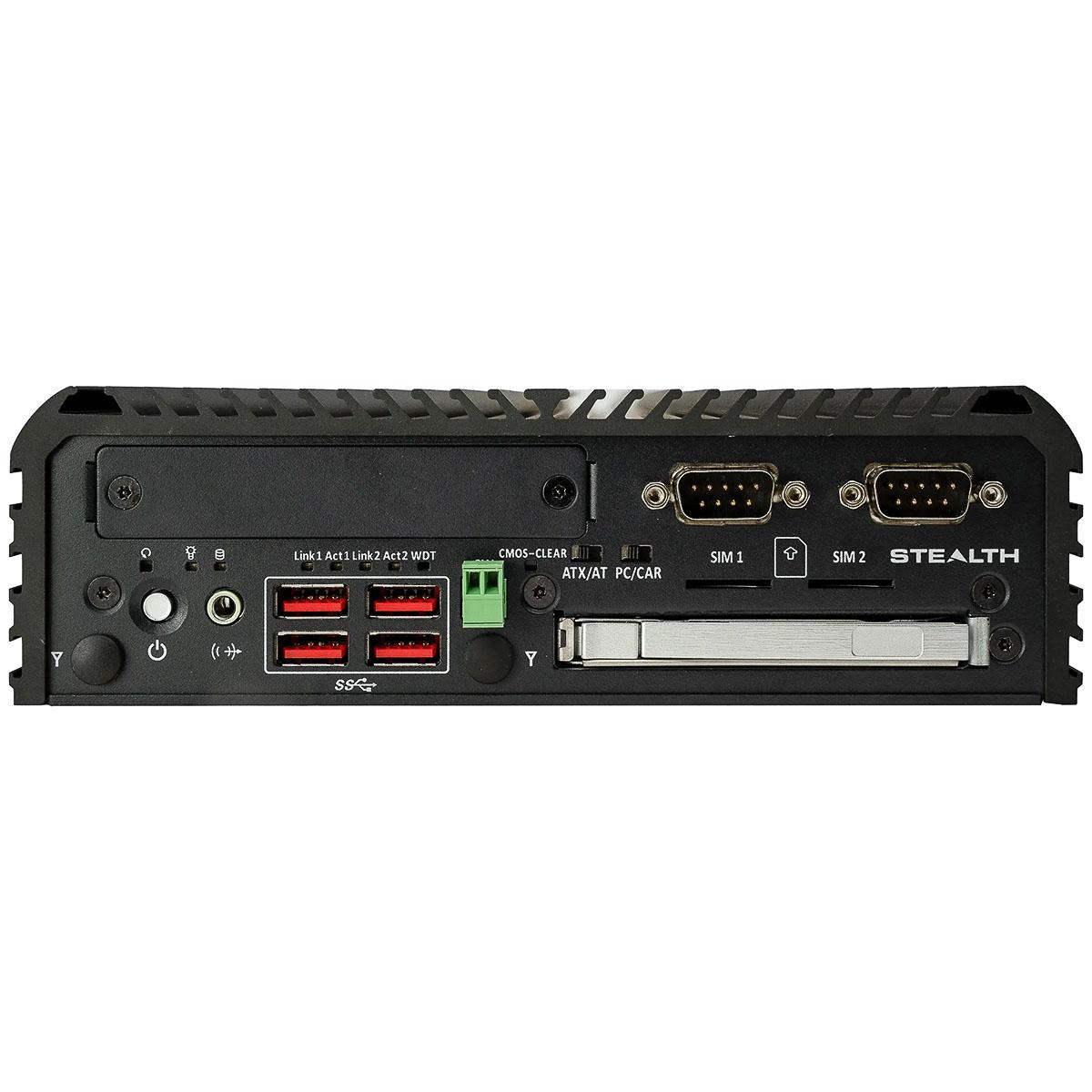

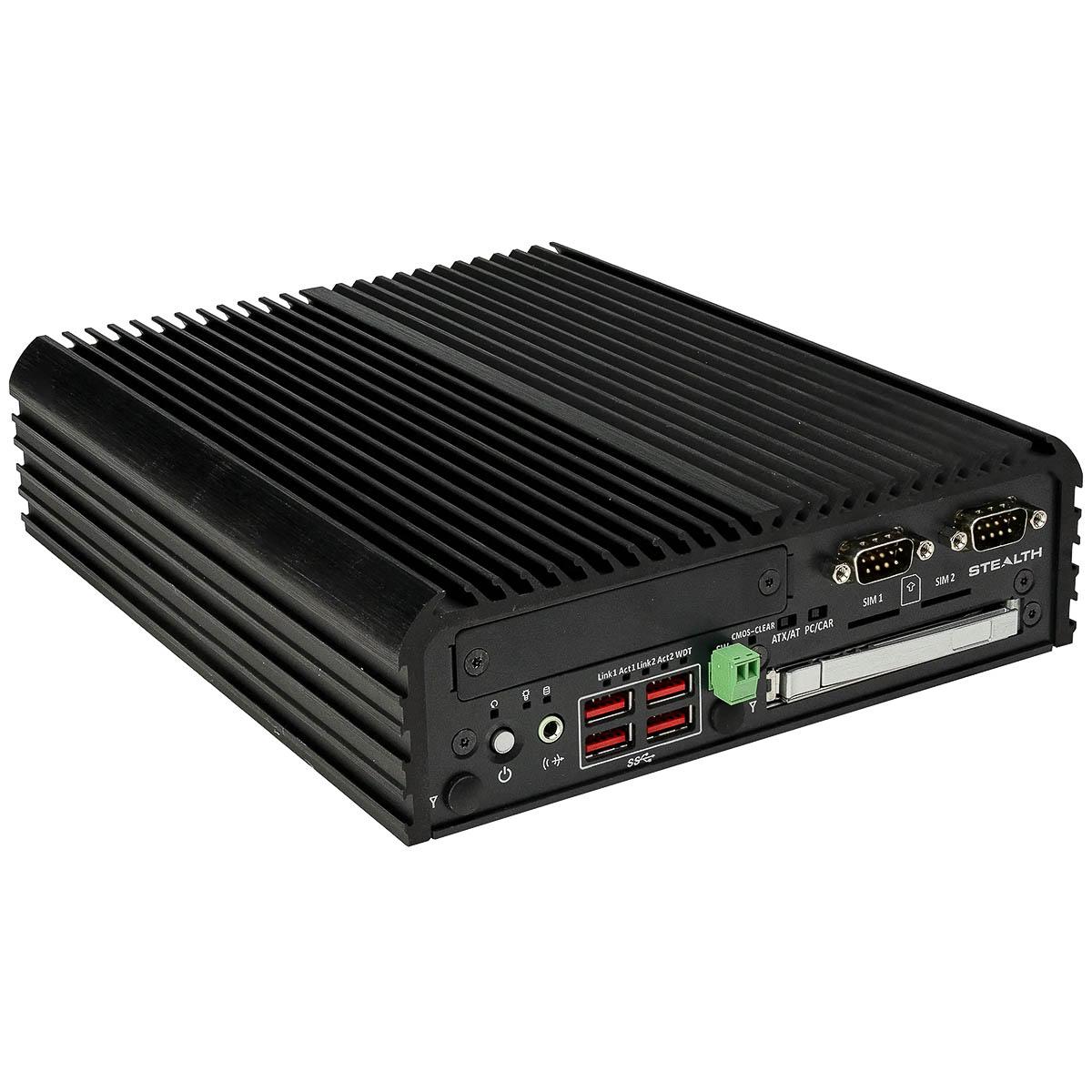

Stealth LPC-840

Documented processor choices and platform support

Advertised base: Unpublished

• Intel Core i5-10500TE (6 Cores / 12 Threads, up to 3.7Ghz)
• Intel Core i7-10700TE (8 Cores / 16 Threads, up to 4.4Ghz)
• Intel Core i9-10900TE (10 Cores / 20 Threads, up to 4.5Ghz)
• Supporting Intel Core 10th Generation Processors

Exact technical descriptions, including model-specific generation and socket conditions. Supported processors are not an installed default.

Memory specifications and supported ranges

Advertised base: Unpublished

• 2x DDR4 Memory Sockets Supporting up to 64GB of RAM / Memory

Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.

Storage specifications and supported ranges

• 480GB 3D NAND SSD (Solid State Drive) standard (SATA)
• Optional Onboard RAID configurations (0, 1), requires multiple drives
• Options of up to 8TB SSD internal storage.
• Up to 2x 2.5" SSD supported total (1 x internal, 1 x removable)

Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.

Front panel options

• 1x Universal Bay (various I/O Options)

Optional connections stay separate from included native ports.

Optional or supported networking

• 1x onboard 2.5Gb Ethernet controller, RJ-45 interface, PXE and WoL Supported
• 1x onboard Gigabit Ethernet controller, RJ-45 interface, PXE and WoL Supported
• Optional 2x 10G RJ45 Ports with Intel X710 on Front Panel
• Optional 4x 10/100/1000 RJ45 POE Ports with Intel I350 on Front Panel
• Optional 802.11 b/g/n/ac Dual Band (2.4Ghz / 5Ghz) Wireless Networking and Bluetooth 4.0, Realtek RTL8821AE via internal Mini-PCIe
• 2x External SIM card sockets standard for 4G wireless connectivity
• Optional 4x USB 3.0 Ports on Front Panel
• Single/Dual channel CAN Bus (optional)

Radio support or SIM sockets do not establish an installed modem, wireless card or antenna.

Expansion / Internal Expansion

• 1x Internal full sized Mini-PCIe expansion slot
• 1x M.2 E-key, 2230

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

System / Chipset

• Intel Q470E Express Chipset

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

System / TPM Module

• TPM 2.0 (Trusted Platform Module), provides increased hardware security.

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Physical / Chassis Description

• Fanless Rugged Aluminum Chassis

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Supported operating systems

Advertised base: Unpublished

• Please contact us directly for any special requirements
• Ubuntu Linux
• Windows 10 (64-bit)
• Windows 11 (64-bit)
• Windows Server 2022

Manufacturer compatibility list, not confirmation of an installed OS or a selected license. Versions alone never block publication.

System / Hardware Monitor

• Processor temperature
• Voltage

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Environmental / Environmental

• Humidity: 10% – 95%
• Operating Temperature: 0C – +40C (+32F – +104F)
• Shock: 50G, half sine, 11ms (with SSD)
• Vibration: 5 – 500Hz, 5G RMS, 0.5 hr/axis

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Compliance / Approvals

• CE, FCC & RoHS
• UL 62368-1:2019 Ed.3

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Physical / Mounting

• DIN Rail Mount

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / Options

• External USB DVD+-RW/CD-RW Drive
• Optional 2x 10Gb Ports on Front Panel
• Optional 4x 10/100/1000 RJ45 POE Ports on Front Panel
• Optional 4x USB 3.0 Ports on Front Panel
• Optional 802.11 b/g/n/ac Dual Band (2.4Ghz / 5Ghz) Wireless Networking and Bluetooth, Intel AC7260 via internal Mini-PCIe
• Remote power option Ideal for OEM or Cabinet manufacturers

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / WatchDog Timer

• System Reset

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / Warranty

• 1 Year Extended Warranty available (see Configurator/Price List)
• 2 Year Extended Warranty available (see Configurator/Price List)
• 3 Year Limited Warranty, Standard

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / Disclaimer

• Note: Specifications are subject to change without notice.

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
