Stealth PM-3500B

Documented processor choices and platform support

Advertised base: Unpublished

• Intel Core i3-12100 (4 Cores / 8 Threads, up to 4.30GHz)
• Intel Core i5-12500 (6 Cores / 12 Threads, up to 4.60GHz)
• Intel Core i7-12700 (12 Cores / 20 Threads, up to 4.90GHz)
• Intel Core i9-12900 (16 Cores / 24 Threads, up to 5.10GHz)
• Supporting Intel's 12th Generation Core Processors (Alder Lake)

Exact technical descriptions, including model-specific generation and socket conditions. Supported processors are not an installed default.

Memory specifications and supported ranges

Advertised base: Unpublished

• 4x DDR5 Memory Sockets supporting up to 128GB RAM / Memory

Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.

Drive Bays

Advertised base: Unpublished

• 1x 3.5" Internal optional cage for use with internal drive storage
• 2x 3.5" Open Drive Bay
• 2x 5.25" Open Drive Bay
• Onboard RAID Supported

Drive bays, RAID prerequisites and removable/optical drives describe capabilities or optional additions, not installed drive counts or capacity.

Removable Storage

Advertised base: Unpublished

• Optional DVDRW/CDRW/Blu-Ray Burner Optical Drive (uses 1x 5.25" Bay)
• Optional Removable drive bay with Key locking (uses 5.25" expansion bay)

Drive bays, RAID prerequisites and removable/optical drives describe capabilities or optional additions, not installed drive counts or capacity.

Optional or supported networking

Advertised base: Unpublished

• 1x onboard 2.5Gb Ethernet controller, RJ-45 interface, PXE and WoL Supported
• Optional support for Fiber, 10GB, Wireless and more

Radio support or SIM sockets do not establish an installed modem, wireless card or antenna.

Expansion / Expansion Slots

• 1x PCIe 4.0 x16 slot
• 1x PCIe 4.0 x16 slot (Supports x1 mode)
• 1x PCIe 4.0 x16 slot (max at x4 mode)
• 2x M.2 Slot, with M key, type 2242/2260/2280 (support PCIe 4.0 x4 mode)

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

System / TPM Module

• Optional TPM 2.0 (Trusted Platform Module), provides increased hardware security.

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

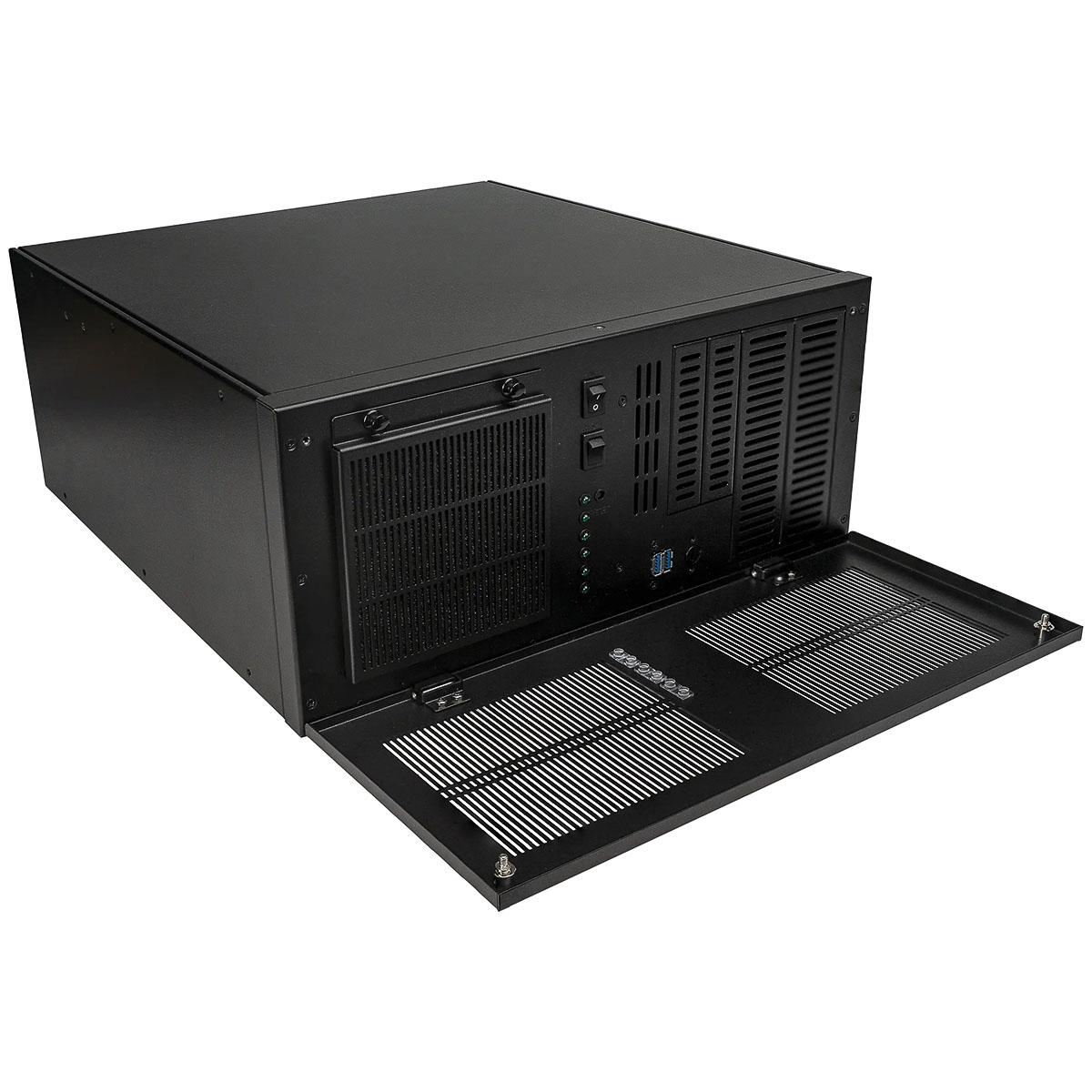

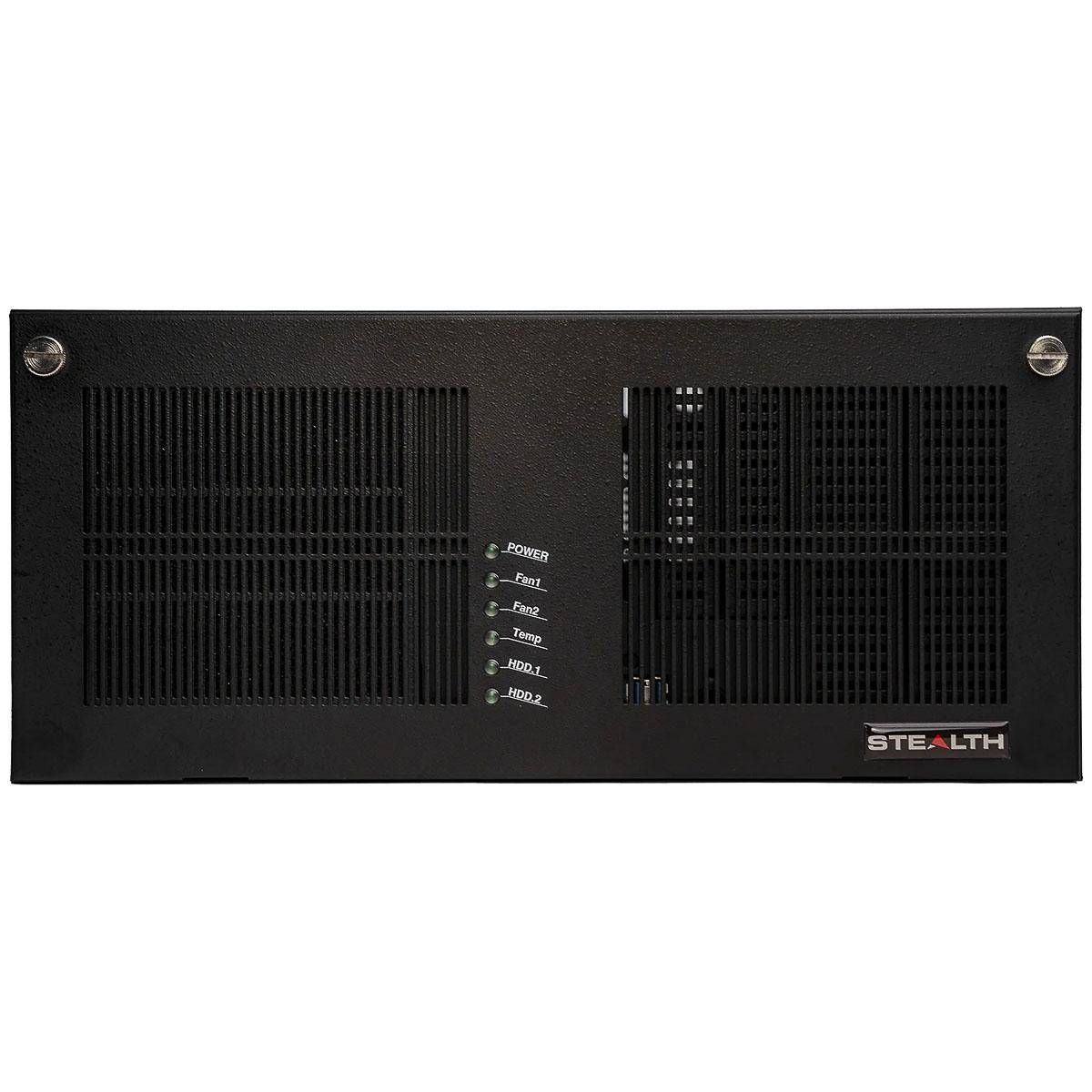

Physical / Chassis Description

• Full length front door with power and reset switch behind thumbscrews door
• Includes wall mount bracket
• Internal hold down bar for expansion cards
• Rugged Steel Chassis, Panel, Wall, Bench/Tower configuration

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Supported operating systems

Advertised base: Unpublished

• Please contact us directly for any special requirements
• Ubuntu Linux
• Windows 10 (64-bit)
• Windows 11 (64-bit) – Requires TPM 2.0
• Windows Server 2022

Manufacturer compatibility list, not confirmation of an installed OS or a selected license. Versions alone never block publication.

Environmental / Environmental

• Operating Temperature: 0C – +45C (+32F – +113F)

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Physical / Cooling Fans

• Smart Fan thermal management with 90CFM cooling fan.

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / Warranty

• 1 Year Extended Warranty available (see Configurator/Price List)
• 2 Year Extended Warranty available (see Configurator/Price List)
• 3 Year Limited Warranty, Standard

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / Disclaimer

• Note: Specifications are subject to change without notice.

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
