Stealth/Mini PCs
Stealth LPC-500C
US · STEALTH-ITEM-270723
Configurable device · Advertised base configuration
Configurable modelSTEALTH-ITEM-270723
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
| Graphics | Intel UHD Graphics 710Source & observationView specification source ↗Observed 2026-10-04T03:09:27.162728+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
|---|
Documented processor choices and platform support
Advertised base: Unpublished
- Intel Celeron G6900TE (2 Cores / 2 Threads, 2.4Ghz)
- Intel Pentium Gold G7400TE (2 Cores / 4 Threads, up to 3.0Ghz)
Exact technical descriptions, including model-specific generation and socket conditions. Supported processors are not an installed default.
Manufacturer options ↗Memory & Storage▾
Memory specifications and supported ranges
Advertised base: Unpublished
- 1x DDR5 Memory Socket Supporting up to 32GB of RAM Memory
Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.
Manufacturer options ↗Storage specifications and supported ranges
Advertised base: Unpublished
- Options of up to 2TB SSD (Wide Temperature) internal storage
- Supports 2x M.2 2280 M-key Gen 4x4 slots
Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.
Manufacturer options ↗Display▾
| Screen technology | Not applicable |
|---|---|
| Size | Not applicableSource & observationView specification source ↗Observed 2026-10-04T03:09:27.162728+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
| Resolution | Not applicableSource & observationView specification source ↗Observed 2026-10-04T03:09:27.162728+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
| Refresh rate | Not applicableSource & observationView specification source ↗Observed 2026-10-04T03:09:27.162728+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-04T03:09:27.162728+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
|---|---|
| Power supply | AC Input: 120–240V AC, 50/60Hz · Includes 100-240V AC (24V DC), 90W Power Adapter · Input: 10-26V DCSource & observationView specification source ↗Observed 2026-10-04T03:09:27.162728+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
Connectivity▾

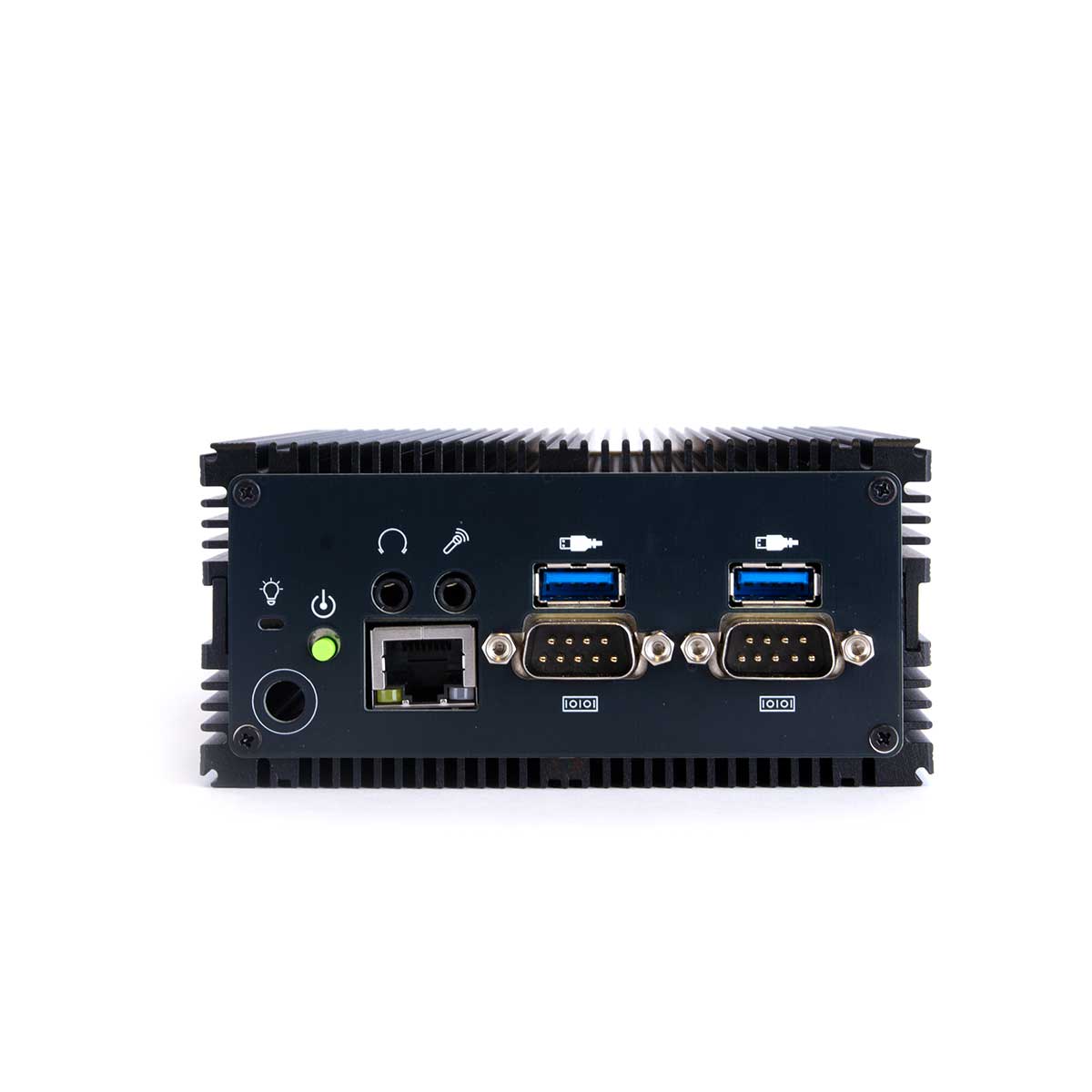

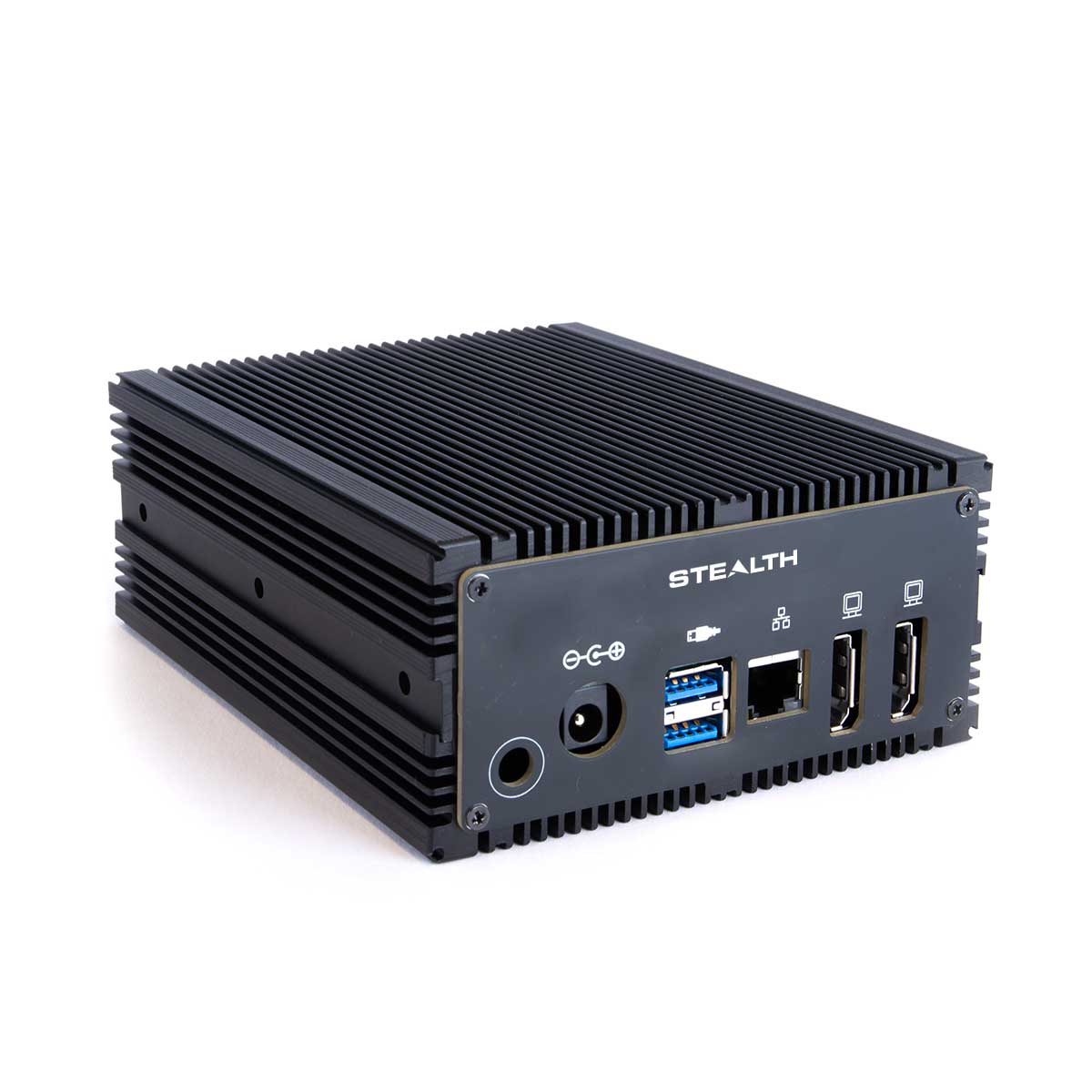

| Ports | Ports: 2x 2.5Gb LAN Ports, RJ45 · Ports: 2x DisplayPort 1.4a++ · Ports: 2x RS-232/422/485 Ports · Ports: 2x USB 3.1 Gen 1 Ports (rear-mounted) · Ports: 2x USB 3.2 Gen 1 (front-mount) · Front panel: 2x RS-232/422/485 Ports · Front panel: 2x USB 3.2 Gen 2 Ports · Front panel: Headphone/Audio Line-Out Jack · Front panel: Microphone Input Jack · Front panel: Power-on button with LED · Front panel: Reset button · Rear panel: 2x DisplayPort Video connectors · Rear panel: 2x Gigabit RJ45 Network connection · Rear panel: 2x USB 3.2 Gen 2 Ports · Rear panel: DC Power Input JackSource & observationView specification source ↗Observed 2026-10-04T03:09:27.162728+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
|---|
Optional or supported networking
- Optional M.2 WiFi LAN 802.11 BT5.0
- * WiFi 6e 6GHz regulatory may vary between countries, supported only in Windows 11 or later
- ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Radio support or SIM sockets do not establish an installed modem, wireless card or antenna.
Manufacturer options ↗Build & Physical▾
| Weight | 2080 gSource & observationView specification source ↗Observed 2026-10-04T03:09:27.162728+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
|---|---|
| Dimensions | (W-D-H) 4.6" x 5.9" x 2.17" (117.0mm x 150.0mm x 55.0mm)Source & observationView specification source ↗Observed 2026-10-04T03:09:27.162728+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
System / Chipset
- Intel Q670E (Alder Lake)
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗System / TPM Module
- TPM 2.0 (Trusted Platform Module), provides increased hardware security.
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Physical / Chassis Description
- Fanless Rugged Aluminum Chassis
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Software & Bundle▾
| Included bundle | 100-240V AC Adapter · Wall Mount BracketSource & observationView specification source ↗Observed 2026-10-04T03:09:27.162728+00:00 Exact official item technical rows; supported choices and optional parts separated from installed components |
|---|
Supported operating systems
Advertised base: Unpublished
- Windows 10 IoT Enterprise
- Windows 11 (64-bit)
- Windows 11 IoT Enterprise
- Windows Server 2022
Manufacturer compatibility list, not confirmation of an installed OS or a selected license. Versions alone never block publication.
Manufacturer options ↗Environmental / Environmental
- Humidity: 20% – 90%
- Non-Operating/Storage: 5% – 90%, non-condensing
- Operatin Relative Humidity: 10% - 80%, non-condensing
- Operating: -20C to +50C (-4F to +122F)
- Storage Temperature: -40C – +85C (-40F – +185F)
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Compliance / Approvals
- CE, FCC & RoHS
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Physical / Mounting
- DIN Rail Mount
- Wall Mount Brackets (included)
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗General / Warranty
- 1 Year Extended Warranty available (see Configurator/Price List)
- 2 Year Extended Warranty available (see Configurator/Price List)
- 3 Year Limited Warranty, Standard
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗General / Disclaimer
- Note: Specifications are subject to change without notice.
Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
Manufacturer options ↗Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-04T03:09:27.162728+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-04T03:09:27.162728+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
