Shuttle/All-in-Ones

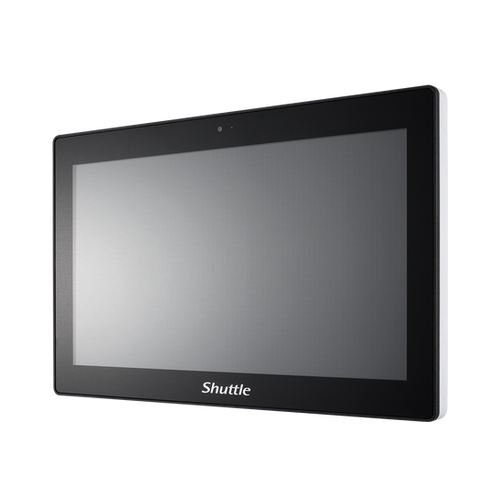

P15WL01 Ruggedized All-in-One Computer (Good Configuration)
US · SHUTTLE-SKU-649226958612
Fixed configuration · Store catalog reference
Catalog referenceSHUTTLE-SKU-649226958612
The hardware
Full Specifications
Every published specification, grouped by category. Select a heading to collapse.
Performance — CPU / GPU▾
| Processor | Intel Core i5-8365UESource & observationView specification source ↗Observed 2026-10-03T16:03:11.085114+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
|---|---|
| Graphics | Intel UHD graphicsSource & observationView specification source ↗Observed 2026-10-03T16:03:11.085114+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
Memory & Storage▾
| Installed RAM | 8 GBSource & observationView specification source ↗Observed 2026-10-03T16:03:11.085114+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
|---|---|
| Total storage | 256 GBSource & observationView specification source ↗Observed 2026-10-03T16:03:11.085114+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
Display▾
| Screen technology | LCDSource & observationView specification source ↗Observed 2026-10-03T16:03:11.085114+00:00 LCD panel stated in exact linked model specification sheet |
|---|---|
| Size | 15.6 inSource & observationView specification source ↗Observed 2026-10-03T16:03:11.085114+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
| Resolution | 1920x1080 pxSource & observationView specification source ↗Observed 2026-10-03T16:03:11.085114+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
| Refresh rate | 60 HzSource & observationView specification source ↗Observed 2026-10-03T16:03:11.085114+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T16:03:11.085114+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
|---|---|
| Power supply | 90W 19V/4.74A external adapter 9-36V DC (optional wide range board)Source & observationView specification source ↗Observed 2026-10-03T16:03:11.085114+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
Connectivity▾

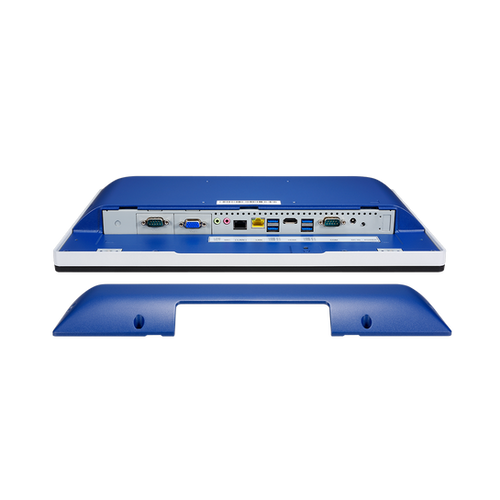

| Ports | External: HDMI 1.4b + D-sub/VGA (digital video + audio) · External: Intel Gigabit LAN RJ45 x 2 (i219LM and i211) · External: (4) USB 3.2 Gen 1 (Type A), (4) USB 2.0 · External: (1) Line-out (1) MIC-in · Display outputs: HDMI 1.4b x 1 (1080p/60Hz, 2160p/30Hz) · Display outputs: D-sub/VGA x 1, (analog) · Network: Intel Gigabit LAN x 2Source & observationView specification source ↗Observed 2026-10-03T16:03:11.085114+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
|---|---|
| Wireless & networking | Preinstalled Wi-Fi (version unspecified)Source & observationView specification source ↗Observed 2026-10-03T16:03:11.085114+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
Build & Physical▾
| Weight | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T16:03:11.085114+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
|---|---|
| Dimensions | 15.5(L) x 10(W) x 1.9(H) inchesSource & observationView specification source ↗Observed 2026-10-03T16:03:11.085114+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
Software & Bundle▾
| Operating system | Windows 11 IotSource & observationView specification source ↗Observed 2026-10-03T16:03:11.085114+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
|---|---|
| Included bundle | Unpublished |
Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T16:03:11.085114+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T16:03:11.085114+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
