Shuttle makes compact computers for commercial and embedded applications. Its range includes mini PCs, industrial box computers and touchscreen all-in-ones, with designs for digital signage, point of sale and equipment integration. The catalog therefore extends beyond a conventional home desktop in a smaller case.
Shuttle’s slim and fanless systems suit installations where space, noise and connections matter. All-in-one models integrate a display, while industrial edge systems are aimed at deployment in specialized environments. Compare mounting, operating limits and the actual ports as closely as processor and memory, especially when a computer must work with existing equipment.
Intel 2.5GbE + 1 GbE Dual LAN · Supports Wake on LAN function · 10/100/1000/2500 Mb/s
Ports
Front: Microphone input · Front: Headphone output (line-out) · Front: USB 3.2 Gen 2 (Type-A) x 3 · Front: USB 3.2 Gen 2 (Type-C) x 1 · Rear: HDMI 2.1 x 1 · Rear: HDMI 2.0 x 1 · Rear: 2.5 Gigabit LAN (RJ45) x 1 · Rear: DisplayPort 1.4a x 1 · Rear: Gigabit LAN (RJ45) x 1 · Rear: USB 3.2 Gen 1 x 4 (Type-A) · Rear: DC input connector for external power adapter x 1(supports 12 V and · Rear: USB 4 x 1 (Type-C), supports DP 1.4a, · Rear: 19.5V input) · Rear: 3A charging current · Rear: 4 pin connector x 1 (2.54 mm pitch for external power or Clear CMOS · Rear: RS232 x 2 (5/12V, RS422/RS485 x 1) · Rear: function)
Intel 2.5GbE + 1 GbE Dual LAN · Supports Wake on LAN function · 10/100/1000/2500 Mb/s
Ports
Front: Microphone input · Front: Headphone output (line-out) · Front: USB 3.2 Gen 2 (Type-A) x 3 · Front: USB 3.2 Gen 2 (Type-C) x 1 · Rear: HDMI 2.1 x 1 · Rear: HDMI 2.0 x 1 · Rear: 2.5 Gigabit LAN (RJ45) x 1 · Rear: DisplayPort 1.4a x 1 · Rear: Gigabit LAN (RJ45) x 1 · Rear: USB 3.2 Gen 1 x 4 (Type-A) · Rear: DC input connector for external power adapter x 1(supports 12 V and · Rear: USB 4 x 1 (Type-C), supports DP 1.4a, · Rear: 19.5V input) · Rear: 3A charging current · Rear: 4 pin connector x 1 (2.54 mm pitch for external power or Clear CMOS · Rear: RS232 x 2 (5/12V, RS422/RS485 x 1) · Rear: function)
Intel 2.5GbE + 1 GbE Dual LAN · Supports Wake on LAN function · 10/100/1000/2500 Mb/s
Ports
Front: Microphone input · Front: Headphone output (line-out) · Front: USB 3.2 Gen 2 (Type-A) x 3 · Front: USB 3.2 Gen 2 (Type-C) x 1 · Rear: HDMI 2.1 x 1 · Rear: HDMI 2.0 x 1 · Rear: 2.5 Gigabit LAN (RJ45) x 1 · Rear: DisplayPort 1.4a x 1 · Rear: Gigabit LAN (RJ45) x 1 · Rear: USB 3.2 Gen 1 x 4 (Type-A) · Rear: DC input connector for external power adapter x 1(supports 12 V and · Rear: USB 4 x 1 (Type-C), supports DP 1.4a, · Rear: 19.5V input) · Rear: 3A charging current · Rear: 4 pin connector x 1 (2.54 mm pitch for external power or Clear CMOS · Rear: RS232 x 2 (5/12V, RS422/RS485 x 1) · Rear: function)
Preinstalled Wi-Fi (version unspecified) · Intel i211 · Supports Wake on LAN function · 10/100/1000 MB/s operation
Ports

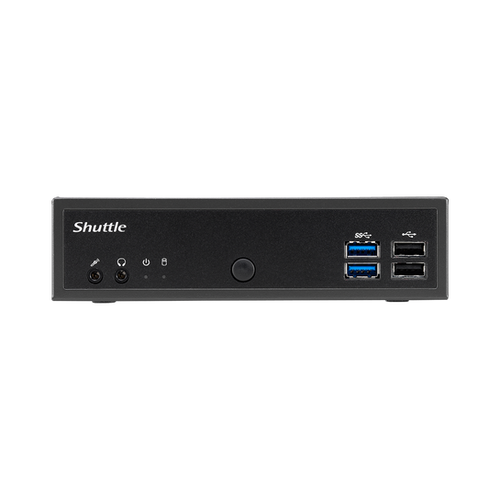

Front: 2 x USB 3.0 · Front: 2 x USB 2.0 · Rear: HDMI v2.0b x 4 · Rear: USB 3.0 x 2 · Rear: DC-input connector for external power adapter · Rear: Gigabit LAN (RJ45) x 1 · Rear: Kensington Lock x 2 · Rear: RS232 x 1
Preinstalled Wi-Fi (version unspecified) · Intel i211 · Supports Wake on LAN function · 10/100/1000 MB/s operation
Ports
Front: 2 x USB 3.0 · Front: 2 x USB 2.0 · Rear: HDMI v2.0b x 4 · Rear: USB 3.0 x 2 · Rear: DC-input connector for external power adapter · Rear: Gigabit LAN (RJ45) x 1 · Rear: Kensington Lock x 2 · Rear: RS232 x 1
Preinstalled Wi-Fi (version unspecified) · Intel i210 x 2 · Supports Wake on LAN function · 100/1000 MB/s operation · Supports network boot by Preboot eXecuation Environment (PXE) · Supports Teaming mode
Ports

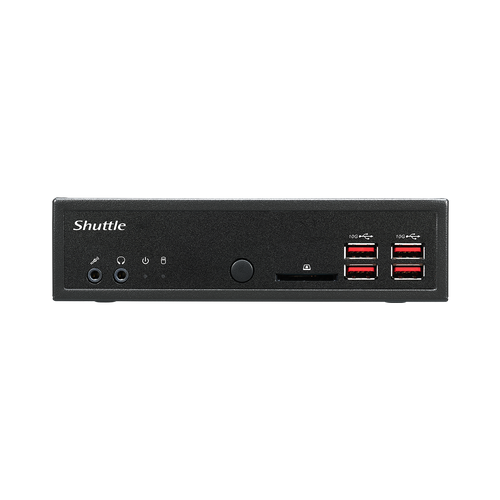

Front: Microphone input · Front: Headphone output (line-out) · Front: 4 x USB 3.2 Gen 2 type A · Front: SD Card Reader · Rear: HDMI 2.0b x 4 · Rear: Gigabit LAN (RJ45) x 2 · Rear: USB 3.2 Gen 1 x 4 · Rear: Kensington Lock x 2 · Rear: DC-input connector for external power adapter · Rear: RS232 x 2 · Rear: Clear CMOS button (4-pin connector)
Preinstalled Wi-Fi (version unspecified) · Intel 2.5GbE x 2 Dual LAN · Supports Wake on LAN function · 100/1000/2500 Mb/s operation
Ports
Front: Microphone input · Front: Headphone output (line-out) · Front: 2 x USB 3.2 Gen 2 (Type-A) · Front: 2 x USB 3.2 Gen 1 (one Type-C) · Rear: HDMI 2.0b x 2 · Rear: Clear CMOS button · Rear: DisplayPort 1.4 x 2 · Rear: 2.5GbE LAN (RJ45) x 2 · Rear: USB 3.2 Gen 2 x 2 · Rear: RS232 x 2 (1 x RS422/RS485) · Rear: USB 3.2 Gen 1 x 2 · Rear: DC-input connector for external power adapter (19V±5%) · Rear: Kensington Lock x 2
Preinstalled Wi-Fi (version unspecified) · Intel 2.5GbE x 2 Dual LAN · Supports Wake on LAN function · 100/1000/2500 Mb/s operation
Ports
Front: Microphone input · Front: Headphone output (line-out) · Front: 2 x USB 3.2 Gen 2 (Type-A) · Front: 2 x USB 3.2 Gen 1 (one Type-C) · Rear: HDMI 2.0b x 2 · Rear: Clear CMOS button · Rear: DisplayPort 1.4 x 2 · Rear: 2.5GbE LAN (RJ45) x 2 · Rear: USB 3.2 Gen 2 x 2 · Rear: RS232 x 2 (1 x RS422/RS485) · Rear: USB 3.2 Gen 1 x 2 · Rear: DC-input connector for external power adapter (19V±5%) · Rear: Kensington Lock x 2
Preinstalled Wi-Fi (version unspecified) · Intel 2.5GbE x 2 Dual LAN · Supports Wake on LAN function · 100/1000/2500 Mb/s operation
Ports
Front: Microphone input · Front: Headphone output (line-out) · Front: 2 x USB 3.2 Gen 2 (Type-A) · Front: 2 x USB 3.2 Gen 1 (one Type-C) · Rear: HDMI 2.0b x 2 · Rear: Clear CMOS button · Rear: DisplayPort 1.4 x 2 · Rear: 2.5GbE LAN (RJ45) x 2 · Rear: USB 3.2 Gen 2 x 2 · Rear: RS232 x 2 (1 x RS422/RS485) · Rear: USB 3.2 Gen 1 x 2 · Rear: DC-input connector for external power adapter (19V±5%) · Rear: Kensington Lock x 2
Preinstalled Wi-Fi (version unspecified) · Intel 2.5GbE LAN x1 (left) · 100/1000/2500 Mb/s operation (left LAN port) · Intel 1GbE LAN x 1 (right) · 10/100/1000 Mb/s operation (right LAN port) · Supports Wake on LAN function
Ports
Front: Microphone input · Front: USB 2.0 x 2 (Type-A) · Front: Headphone output (line-out) · Front: USB 3.2 Gen 2 x 1 (Type-A) · Front: USB 3.2 Gen 2 x 1 (one Type-C) · Rear: HDMI 2.1 x 1 (supports 8K/60Hz) · Rear: USB4 (USB-C, supports DP 1.4a and 3A charging) · Rear: DisplayPort 1.4a x 1 · Rear: 4-pin connector · Rear: Kensington Lock x 2 · Rear: USB 3.2 Gen 1 x 2 · Rear: 2.5G LAN (RJ45) x 1 · Rear: RS232 x 2 (1 x RS422/RS485) · Rear: 1.0G LAN (RJ45) x 1 · Rear: DC-input connector for external power adapter (12V/19V support)
Preinstalled Wi-Fi (version unspecified) · Intel 2.5GbE LAN x1 (left) · 100/1000/2500 Mb/s operation (left LAN port) · Intel 1GbE LAN x 1 (right) · 10/100/1000 Mb/s operation (right LAN port) · Supports Wake on LAN function
Ports
Front: Microphone input · Front: USB 2.0 x 2 (Type-A) · Front: Headphone output (line-out) · Front: USB 3.2 Gen 2 x 1 (Type-A) · Front: USB 3.2 Gen 2 x 1 (one Type-C) · Rear: HDMI 2.1 x 1 (supports 8K/60Hz) · Rear: USB4 (USB-C, supports DP 1.4a and 3A charging) · Rear: DisplayPort 1.4a x 1 · Rear: 4-pin connector · Rear: Kensington Lock x 2 · Rear: USB 3.2 Gen 1 x 2 · Rear: 2.5G LAN (RJ45) x 1 · Rear: RS232 x 2 (1 x RS422/RS485) · Rear: 1.0G LAN (RJ45) x 1 · Rear: DC-input connector for external power adapter (12V/19V support)
Preinstalled Wi-Fi (version unspecified) · Intel 2.5GbE LAN x1 (left) · 100/1000/2500 Mb/s operation (left LAN port) · Intel 1GbE LAN x 1 (right) · 10/100/1000 Mb/s operation (right LAN port) · Supports Wake on LAN function
Ports
Front: Microphone input · Front: USB 2.0 x 2 (Type-A) · Front: Headphone output (line-out) · Front: USB 3.2 Gen 2 x 1 (Type-A) · Front: USB 3.2 Gen 2 x 1 (one Type-C) · Rear: HDMI 2.1 x 1 (supports 8K/60Hz) · Rear: USB4 (USB-C, supports DP 1.4a and 3A charging) · Rear: DisplayPort 1.4a x 1 · Rear: 4-pin connector · Rear: Kensington Lock x 2 · Rear: USB 3.2 Gen 1 x 2 · Rear: 2.5G LAN (RJ45) x 1 · Rear: RS232 x 2 (1 x RS422/RS485) · Rear: 1.0G LAN (RJ45) x 1 · Rear: DC-input connector for external power adapter (12V/19V support)
Preinstalled Wi-Fi (version unspecified) · RTL8411BN CG · 10/100/1000 MB/s operation · Supports Wake on LAN function & VLAN tagging
Ports
Front/top: (1) SD Card Reader · Left: (1) USB 3.0 port · Left: (1) USB 2.0 port · Left: (1) LAN port · Left: (1) HDMI · Left: (1) DC-in · Rear: (4) USB 2.0 ports · Rear: (1) Headphone/Line-out · Rear: (1) MIC-in jack · Display outputs: HDMI x 1

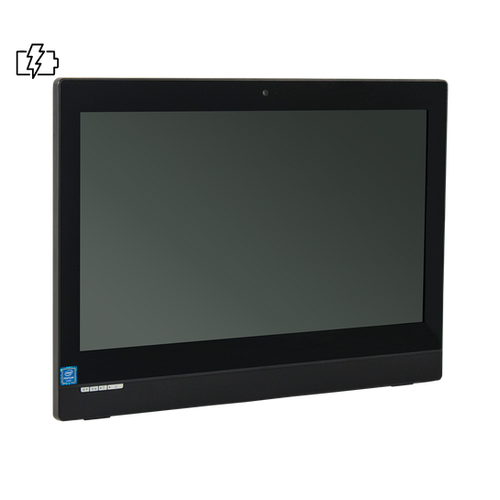

All-In-One desktop with an integrated screen. The store catalog reference identifies an exact fixed tier, not a manufacturer part number. Screen: 19.5", 16:9 wide LCD panel, 1600 x 900 px, multi-touch screen (10 point) | WIRELESS LAN Intel 3165, Supports 802.11 b/g/n/ac + Bluetooth 4.2
Preinstalled Wi-Fi (version unspecified) · RTL8411BN CG · 10/100/1000 MB/s operation · Supports Wake on LAN function & VLAN tagging
Ports
Front/top: (1) SD Card Reader · Left: (1) USB 3.0 port · Left: (1) USB 2.0 port · Left: (1) LAN port · Left: (1) HDMI · Left: (1) DC-in · Rear: (4) USB 2.0 ports · Rear: (1) Headphone/Line-out · Rear: (1) MIC-in jack · Display outputs: HDMI x 1
All-In-One desktop with an integrated screen. The store catalog reference identifies an exact fixed tier, not a manufacturer part number. Screen: 19.5", 16:9 wide LCD panel, 1600 x 900 px, multi-touch screen (10 point) | WIRELESS LAN Intel 3165, Supports 802.11 b/g/n/ac + Bluetooth 4.2
Preinstalled Wi-Fi (version unspecified) · Intel 2.5GbE LAN x 4 · Supports Wake on LAN function · 100/1000/2500 Mbps
Ports

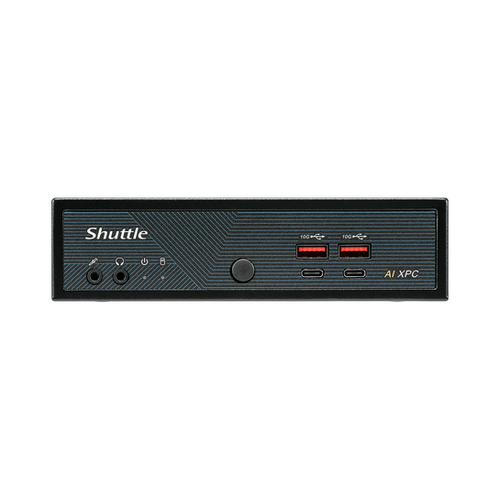

Front: Microphone input · Front: Headphone output (line-out) · Front: 2 x USB 3.2 Gen 2 Type A, max 10 Gb/s · Front: 2 x USB 3.2 Gen 2x2 Type C, max 20 Gb/s · Rear: HDMI 2.1 (video/audio) x 2 · Rear: 4-pin connector for external power on button & clear CMOS function · Rear: DisplayPort 1.4 x 2 · Rear: USB 3.2 Gen 2 x 4 (Type A) · Rear: DC-input connector for external power adapter · Rear: 2.5 Gigabit LAN (RJ45) x 4
Preinstalled Wi-Fi (version unspecified) · Intel 2.5GbE LAN x 4 · Supports Wake on LAN function · 100/1000/2500 Mbps
Ports
Front: Microphone input · Front: Headphone output (line-out) · Front: 2 x USB 3.2 Gen 2 Type A, max 10 Gb/s · Front: 2 x USB 3.2 Gen 2x2 Type C, max 20 Gb/s · Rear: HDMI 2.1 (video/audio) x 2 · Rear: 4-pin connector for external power on button & clear CMOS function · Rear: DisplayPort 1.4 x 2 · Rear: USB 3.2 Gen 2 x 4 (Type A) · Rear: DC-input connector for external power adapter · Rear: 2.5 Gigabit LAN (RJ45) x 4
Preinstalled Wi-Fi (version unspecified) · Intel 2.5GbE LAN x 4 · Supports Wake on LAN function · 100/1000/2500 Mbps
Ports
Front: Microphone input · Front: Headphone output (line-out) · Front: 2 x USB 3.2 Gen 2 Type A, max 10 Gb/s · Front: 2 x USB 3.2 Gen 2x2 Type C, max 20 Gb/s · Rear: HDMI 2.1 (video/audio) x 2 · Rear: 4-pin connector for external power on button & clear CMOS function · Rear: DisplayPort 1.4 x 2 · Rear: USB 3.2 Gen 2 x 4 (Type A) · Rear: DC-input connector for external power adapter · Rear: 2.5 Gigabit LAN (RJ45) x 4
Preinstalled Wi-Fi (version unspecified) · Intel i219 + i226 Dual LAN · Supports Wake on LAN function · 10/100/1000 Mbps (left LAN) · 100/1000/2500 Mbps (right LAN)
Ports

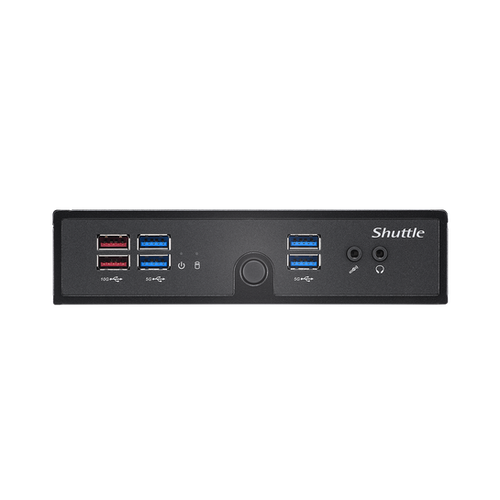

Front: Microphone input · Front: Headphone output (line-out) · Front: 2 x USB 3.2 Gen 2 (red) · Front: 4 x USB 3.2 Gen 1 (blue) · Rear: HDMI 2.0b · Rear: Clear CMOS button/external Power on button · Rear: DisplayPort 1.4 · Rear: Intel RJ45 LAN x 2 (1 Gbps left, 2.5 Gbps right) · Rear: D-sub/VGA connector · Rear: Serial COM port (5/12V, 1 x RS422/RS485 switchable) · Rear: USB 2.0 x 2 · Rear: Kensington Lock x 2 · Rear: and 5V DC · Rear: DC-input connector for external power adapter
Preinstalled Wi-Fi (version unspecified) · Intel i219 + i226 Dual LAN · Supports Wake on LAN function · 10/100/1000 Mbps (left LAN) · 100/1000/2500 Mbps (right LAN)
Ports
Front: Microphone input · Front: Headphone output (line-out) · Front: 2 x USB 3.2 Gen 2 (red) · Front: 4 x USB 3.2 Gen 1 (blue) · Rear: HDMI 2.0b · Rear: Clear CMOS button/external Power on button · Rear: DisplayPort 1.4 · Rear: Intel RJ45 LAN x 2 (1 Gbps left, 2.5 Gbps right) · Rear: D-sub/VGA connector · Rear: Serial COM port (5/12V, 1 x RS422/RS485 switchable) · Rear: USB 2.0 x 2 · Rear: Kensington Lock x 2 · Rear: and 5V DC · Rear: DC-input connector for external power adapter
Preinstalled Wi-Fi (version unspecified) · Intel i219 + i226 Dual LAN · Supports Wake on LAN function · 10/100/1000 Mbps (left LAN) · 100/1000/2500 Mbps (right LAN)
Ports
Front: Microphone input · Front: Headphone output (line-out) · Front: 2 x USB 3.2 Gen 2 (red) · Front: 4 x USB 3.2 Gen 1 (blue) · Rear: HDMI 2.0b · Rear: Clear CMOS button/external Power on button · Rear: DisplayPort 1.4 · Rear: Intel RJ45 LAN x 2 (1 Gbps left, 2.5 Gbps right) · Rear: D-sub/VGA connector · Rear: Serial COM port (5/12V, 1 x RS422/RS485 switchable) · Rear: USB 2.0 x 2 · Rear: Kensington Lock x 2 · Rear: and 5V DC · Rear: DC-input connector for external power adapter
Preinstalled Wi-Fi (version unspecified) · Intel i219 + i226 Dual LAN · Supports Wake on LAN function · 10/100/1000 Mbps (left LAN) · 100/1000/2500 Mbps (right LAN)
Ports
Front: Microphone input · Front: Headphone output (line-out) · Front: 2 x USB 3.2 Gen 2 (red) · Front: 4 x USB 3.2 Gen 1 (blue) · Rear: HDMI 2.0b · Rear: Clear CMOS button/external Power on button · Rear: DisplayPort 1.4 · Rear: Intel RJ45 LAN x 2 (1 Gbps left, 2.5 Gbps right) · Rear: D-sub/VGA connector · Rear: Serial COM port (5/12V, 1 x RS422/RS485 switchable) · Rear: USB 2.0 x 2 · Rear: Kensington Lock x 2 · Rear: and 5V DC · Rear: DC-input connector for external power adapter
Shuttle’s compact PC range is aimed at space-limited commercial installations. Different models provide different processors and connection sets, so choose the system around display outputs, mounting and peripheral requirements as well as its size.
Shuttle all-in-ones combine a computer and touchscreen for applications such as kiosks and point of sale. Screen size, touch type and front-panel protection vary, so check the requirements of the installation.
Shuttle’s broader industrial range includes embedded box PCs and edge computers. These designs target tasks such as automation and signage, where connection options, enclosure design and deployment conditions can outweigh conventional desktop considerations.
Use this catalog to compare Shuttle devices and narrow down your choices. Before you buy, check the retailer's listing for the exact specifications and current availability.
Check the exact model
Compare the part number and full specifications so you know which Shuttle device you are getting. Different versions can share a model name.
Check what's included
A fixed configuration lists the hardware included in that version. For configurable systems, check the base build and any upgrades you select before ordering.
When a detail is missing
If a specification says "Unpublished," we do not have a confirmed value for it. Check the manufacturer or retailer listing if that detail matters to your choice.
