Shuttle/Mini PCs

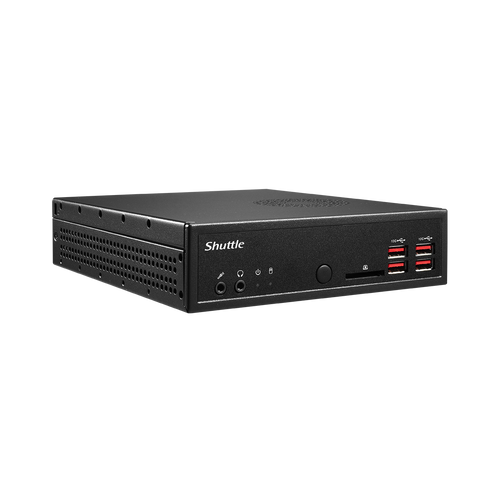

DH32UE Quad HDMI Computer (Winter Sale Configuration)
US · SHUTTLE-VARIANT-00000000-0000-0000-0000-000000000000
Catalog referenceSHUTTLE-VARIANT-00000000-0000-0000-0000-000000000000
The hardware
Full Specifications
Every published specification, grouped by category. Select a heading to collapse.
Performance — CPU / GPU▾
| Processor | Intel Pentium 7505Source & observationView specification source ↗Observed 2026-10-03T04:03:49.192201+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Graphics | Pentium/Core i3: 48 EUsSource & observationView specification source ↗Observed 2026-10-03T04:03:49.192201+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Memory & Storage▾
| Installed RAM | 4 GBSource & observationView specification source ↗Observed 2026-10-03T04:03:49.192201+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Total storage | 128 GBSource & observationView specification source ↗Observed 2026-10-03T04:03:49.192201+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Display▾
| Screen technology | Not applicable |
|---|---|
| Size | Not applicableSource & observationView specification source ↗Observed 2026-10-03T04:03:49.192201+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
| Resolution | Not applicableSource & observationView specification source ↗Observed 2026-10-03T04:03:49.192201+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
| Refresh rate | Not applicableSource & observationView specification source ↗Observed 2026-10-03T04:03:49.192201+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:49.192201+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Power supply | Input: 100 - 240V AC, 50/60 Hz · 19V/90W power supply · Output: 19V 4.74A DC, max 90WSource & observationView specification source ↗Observed 2026-10-03T04:03:49.192201+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Connectivity▾

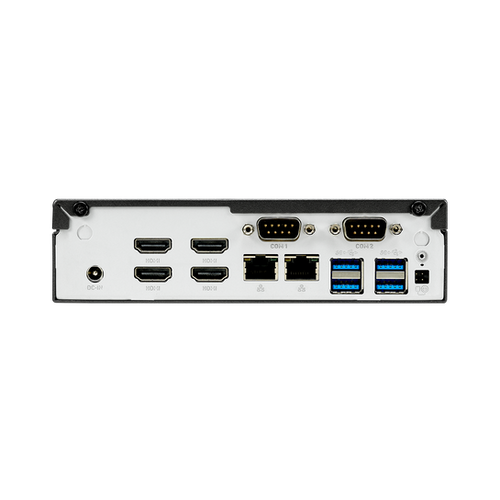

| Ports | Front: Microphone input · Front: Headphone output (line-out) · Front: 4 x USB 3.2 Gen 2 type A · Front: SD Card Reader · Rear: HDMI 2.0b x 4 · Rear: Gigabit LAN (RJ45) x 2 · Rear: USB 3.2 Gen 1 x 4 · Rear: Kensington Lock x 2 · Rear: DC-input connector for external power adapter · Rear: RS232 x 2 · Rear: Clear CMOS button (4-pin connector)Source & observationView specification source ↗Observed 2026-10-03T04:03:49.192201+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Wireless & networking | Preinstalled Wi-Fi (version unspecified) · Intel i210 x 2 · Supports Wake on LAN function · 100/1000 MB/s operation · Supports network boot by Preboot eXecuation Environment (PXE) · Supports Teaming modeSource & observationView specification source ↗Observed 2026-10-03T04:03:49.192201+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Build & Physical▾
| Weight | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:49.192201+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Dimensions | 7.5(L) x 6.5(W) x 1.7(H) inchesSource & observationView specification source ↗Observed 2026-10-03T04:03:49.192201+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Software & Bundle▾
| Operating system | Windows 11 ProSource & observationView specification source ↗Observed 2026-10-03T04:03:49.192201+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Included bundle | Unpublished |
Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:49.192201+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:49.192201+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
