Catalog referenceSHUTTLE-SKU-649226958742
The hardware
Full Specifications
Every published specification, grouped by category. Select a heading to collapse.
Performance — CPU / GPU▾
| Processor | Intel Core Ultra 7 265Source & observationView specification source ↗Observed 2026-10-03T04:03:45.413534+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Graphics | Intel GraphicsSource & observationView specification source ↗Observed 2026-10-03T04:03:45.413534+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Memory & Storage▾
| Installed RAM | 32 GBSource & observationView specification source ↗Observed 2026-10-03T04:03:45.413534+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Total storage | 1 TBSource & observationView specification source ↗Observed 2026-10-03T04:03:45.413534+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Display▾
| Screen technology | Not applicable |
|---|---|
| Size | Not applicableSource & observationView specification source ↗Observed 2026-10-03T04:03:45.413534+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
| Resolution | Not applicableSource & observationView specification source ↗Observed 2026-10-03T04:03:45.413534+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
| Refresh rate | Not applicableSource & observationView specification source ↗Observed 2026-10-03T04:03:45.413534+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:45.413534+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Power supply | Input: 100 - 240V AC · 120W power supply · Output: 19V/6.32A DCSource & observationView specification source ↗Observed 2026-10-03T04:03:45.413534+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Connectivity▾

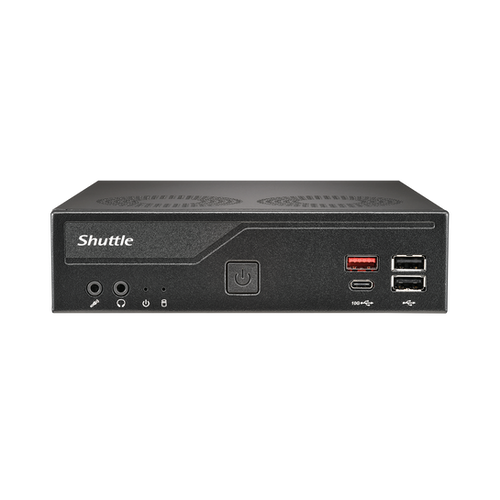

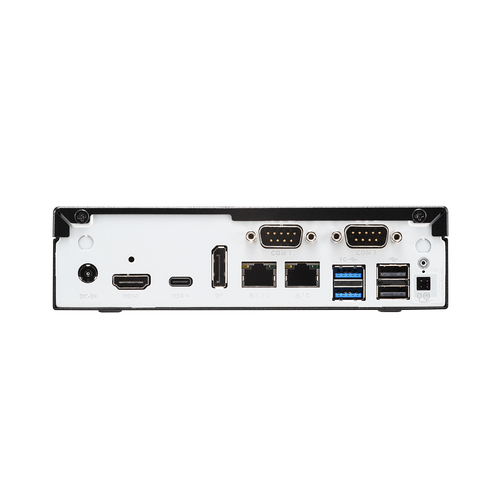

| Ports | Front: Microphone input · Front: USB 2.0 x 2 (Type-A) · Front: Headphone output (line-out) · Front: USB 3.2 Gen 2 x 1 (Type-A) · Front: USB 3.2 Gen 2 x 1 (one Type-C) · Rear: HDMI 2.1 x 1 (supports 8K/60Hz) · Rear: USB4 (USB-C, supports DP 1.4a and 3A charging) · Rear: DisplayPort 1.4a x 1 · Rear: 4-pin connector · Rear: Kensington Lock x 2 · Rear: USB 3.2 Gen 1 x 2 · Rear: 2.5G LAN (RJ45) x 1 · Rear: RS232 x 2 (1 x RS422/RS485) · Rear: 1.0G LAN (RJ45) x 1 · Rear: DC-input connector for external power adapter (12V/19V support)Source & observationView specification source ↗Observed 2026-10-03T04:03:45.413534+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Wireless & networking | Preinstalled Wi-Fi (version unspecified) · Intel 2.5GbE LAN x1 (left) · 100/1000/2500 Mb/s operation (left LAN port) · Intel 1GbE LAN x 1 (right) · 10/100/1000 Mb/s operation (right LAN port) · Supports Wake on LAN functionSource & observationView specification source ↗Observed 2026-10-03T04:03:45.413534+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Build & Physical▾
| Weight | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:45.413534+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Dimensions | 7.5(L) x 6.5(W) x 1.7(H) inchesSource & observationView specification source ↗Observed 2026-10-03T04:03:45.413534+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Software & Bundle▾
| Operating system | Windows 11 ProSource & observationView specification source ↗Observed 2026-10-03T04:03:45.413534+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Included bundle | Unpublished |
Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:45.413534+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:45.413534+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
