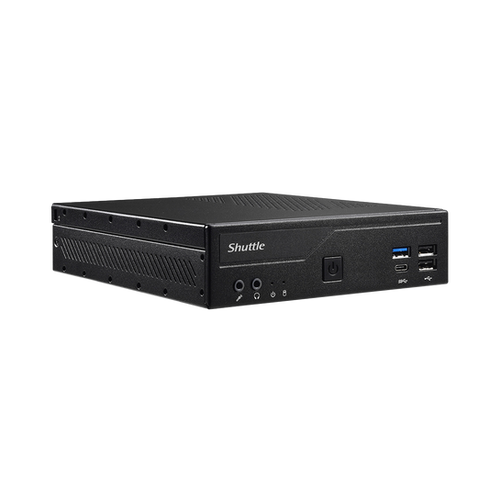

DH610 Semi-ruggedized Computer (Best Configuration)

Name: DH610 Semi-ruggedized Computer (Best Configuration)
Brand: Shuttle

US · SHUTTLE-SKU-649226958001

Catalog referenceSHUTTLE-SKU-649226958001

Before you buy +

Match the part number SHUTTLE-SKU-649226958001 when checking a retailer listing. Different configurations can share a product name.

Specifications below preserve the published source wording. Unpublished values are unknown; they do not mean a feature is absent.

Independent assessment

A buying verdict and benchmark scores are not available for this exact configuration.

Explore the full specifications ↓

The hardware

Full Specifications

Every published specification, grouped by category. Select a heading to collapse.

Performance — CPU / GPU▾

Processor	Intel Core i7-12700 Source & observation View specification source ↗ Observed 2026-10-03T04:03:47.947857+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details
Graphics	Intel UHD Graphics Source & observation View specification source ↗ Observed 2026-10-03T04:03:47.947857+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details

Memory & Storage▾

Installed RAM	16 GB Source & observation View specification source ↗ Observed 2026-10-03T04:03:47.947857+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details
Total storage	1 TB Source & observation View specification source ↗ Observed 2026-10-03T04:03:47.947857+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details

Display▾

Screen technology	Not applicable
Size	Not applicable Source & observation View specification source ↗ Observed 2026-10-03T04:03:47.947857+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details
Resolution	Not applicable Source & observation View specification source ↗ Observed 2026-10-03T04:03:47.947857+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details
Refresh rate	Not applicable Source & observation View specification source ↗ Observed 2026-10-03T04:03:47.947857+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details

Battery & Power▾

Battery capacity	Unpublished Source & observation View specification source ↗ Observed 2026-10-03T04:03:47.947857+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details
Power supply	Input: 100 - 240V AC · 120W power supply · Output: 19V/6.32A DC Source & observation View specification source ↗ Observed 2026-10-03T04:03:47.947857+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details

Connectivity▾

Ports

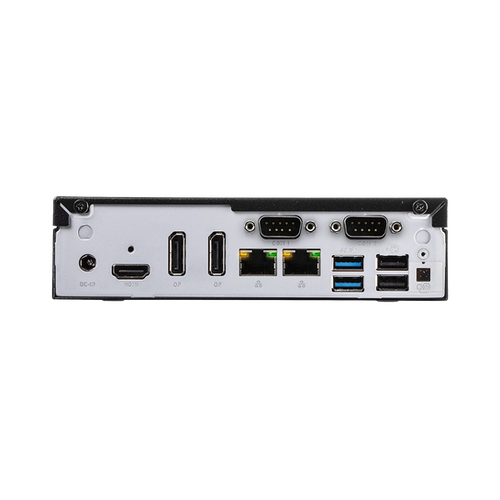

Front: (1) USB 3.2 Gen 1 (Type-A, blue) · Front: (2) USB 2.0 (Type-A, black) · Front: (1) External microphone jack 1/8" · Front: (1) USB 3.2 Gen 1 (Type-C) · Front: (1) External headphone jack 1/8" · Rear: (1) HDMI 2.0b · Rear: (1) RS232/RS422/RS485* · Rear: (2) DisplayPort 1.4 · Rear: (1) RS232* · Rear: (1) External 4 pin header · Rear: (2) USB 3.2 Gen 1 (Type-A, blue) · Rear: (2) USB 2.0 (Type-A, black) · Rear: (2) Kensington Lock · Rear: (2) RJ45 LAN ports w/ LED** · Rear: (1) DC-in

Source & observation

View specification source ↗

Observed 2026-10-03T04:03:47.947857+00:00

Shuttle exact US named fixed tier; linked model technical sheet for platform details

Wireless & networking

Preinstalled Wi-Fi (version unspecified) · RJ45 (Intel 225) x 1, RJ45 (Intel 219V) x 1 RJ45 ports have LEDs · 100/1000/2500 MB/s transfer rate (225) · Supports Wake-on-LAN function · 10/100/1000 MB/s transfer rate (219V) · Supports Teaming Mode

Source & observation

View specification source ↗

Observed 2026-10-03T04:03:47.947857+00:00

Shuttle exact US named fixed tier; linked model technical sheet for platform details

Build & Physical▾

Weight	Unpublished Source & observation View specification source ↗ Observed 2026-10-03T04:03:47.947857+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details
Dimensions	7.5(L) x 6.5(W) x 1.7(H) inches Source & observation View specification source ↗ Observed 2026-10-03T04:03:47.947857+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details

Software & Bundle▾

Operating system	Windows 11 Pro Source & observation View specification source ↗ Observed 2026-10-03T04:03:47.947857+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details
Included bundle	Unpublished

Motherboard & Memory Expansion▾

Motherboard model	Unpublished Source & observation View specification source ↗ Observed 2026-10-03T04:03:47.947857+00:00 Unpublished: no unambiguous exact-device manufacturer specification
Total RAM slots	Unpublished Source & observation View specification source ↗ Observed 2026-10-03T04:03:47.947857+00:00 Unpublished: no unambiguous exact-device manufacturer specification

Independent testing

Benchmarks & Reviews

No published tests or reviews

No test results available (for now). A buying verdict is unavailable for this exact configuration.
