Shuttle/All-in-Ones

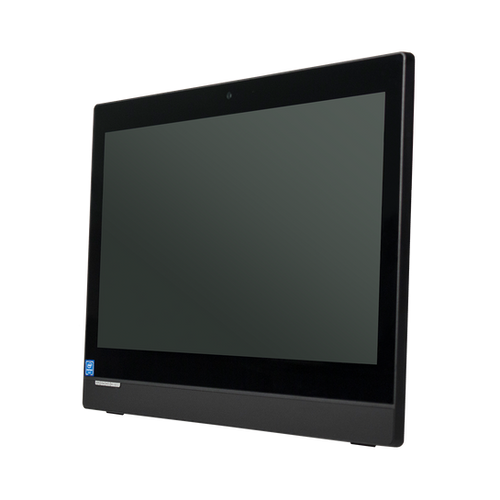

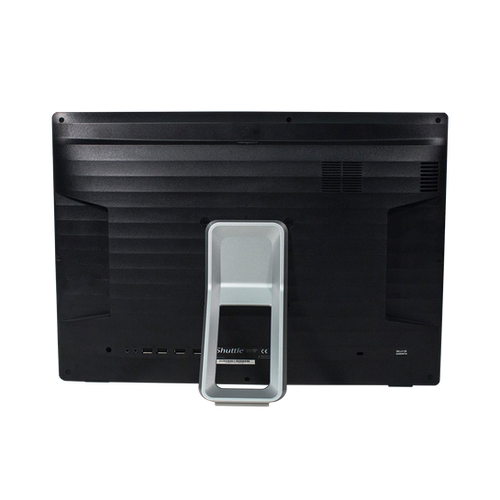

DH9CL Semi-ruggedized All-in-One Computer (Configuration without O.S)
US · SHUTTLE-VARIANT-cd5135f1-d038-42dd-b710-5d19c3cedfc4
Fixed configuration · Store catalog reference
Catalog referenceSHUTTLE-VARIANT-cd5135f1-d038-42dd-b710-5d19c3cedfc4
The hardware
Full Specifications
Every published specification, grouped by category. Select a heading to collapse.
Performance — CPU / GPU▾
| Processor | Intel Core i3-10110USource & observationView specification source ↗Observed 2026-10-03T16:02:55.805962+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
|---|---|
| Graphics | Intel HD graphicsSource & observationView specification source ↗Observed 2026-10-03T16:02:55.805962+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
Memory & Storage▾
| Installed RAM | 8 GBSource & observationView specification source ↗Observed 2026-10-03T16:02:55.805962+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
|---|---|
| Total storage | 256 GBSource & observationView specification source ↗Observed 2026-10-03T16:02:55.805962+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
Display▾
| Screen technology | LCDSource & observationView specification source ↗Observed 2026-10-03T16:02:55.805962+00:00 LCD panel stated in exact linked model specification sheet |
|---|---|
| Size | 19.5 inSource & observationView specification source ↗Observed 2026-10-03T16:02:55.805962+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
| Resolution | 1600x900 pxSource & observationView specification source ↗Observed 2026-10-03T16:02:55.805962+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
| Refresh rate | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T16:02:55.805962+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T16:02:55.805962+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
|---|---|
| Power supply | Input: 100 - 240V AC · Power Plug region specific · 65W power adapterSource & observationView specification source ↗Observed 2026-10-03T16:02:55.805962+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
Connectivity▾
| Ports | Front/top: (1) SD Card Reader · Left: (1) USB 3.0 port · Left: (1) USB 2.0 port · Left: (1) LAN port · Left: (1) HDMI · Left: (1) DC-in · Rear: (4) USB 2.0 ports · Rear: (1) Headphone/Line-out · Rear: (1) MIC-in jack · Display outputs: HDMI x 1Source & observationView specification source ↗Observed 2026-10-03T16:02:55.805962+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
|---|---|
| Wireless & networking | Preinstalled Wi-Fi (version unspecified) · RTL8411BN CG · 10/100/1000 MB/s operation · Supports Wake on LAN function & VLAN taggingSource & observationView specification source ↗Observed 2026-10-03T16:02:55.805962+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
Build & Physical▾
| Weight | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T16:02:55.805962+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
|---|---|
| Dimensions | 19.1(L) x 1.6(W) x 13.5(H) inchesSource & observationView specification source ↗Observed 2026-10-03T16:02:55.805962+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
Software & Bundle▾
| Operating system | NoneSource & observationView specification source ↗Observed 2026-10-03T16:02:55.805962+00:00 Exact Shuttle US fixed store tier; linked model PDF for integrated panel and external ports |
|---|---|
| Included bundle | Unpublished |
Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T16:02:55.805962+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T16:02:55.805962+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
