Catalog referenceSHUTTLE-SKU-10649226959586
The hardware
Full Specifications
Every published specification, grouped by category. Select a heading to collapse.
Performance — CPU / GPU▾
| Processor | Intel Core Ultra 5 125HSource & observationView specification source ↗Observed 2026-10-03T04:03:46.054316+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Graphics | Integrated in CPUSource & observationView specification source ↗Observed 2026-10-03T04:03:46.054316+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Memory & Storage▾
| Installed RAM | 16 GBSource & observationView specification source ↗Observed 2026-10-03T04:03:46.054316+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Total storage | 1.256 TBSource & observationView specification source ↗Observed 2026-10-03T04:03:46.054316+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Display▾
| Screen technology | Not applicable |
|---|---|
| Size | Not applicableSource & observationView specification source ↗Observed 2026-10-03T04:03:46.054316+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
| Resolution | Not applicableSource & observationView specification source ↗Observed 2026-10-03T04:03:46.054316+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
| Refresh rate | Not applicableSource & observationView specification source ↗Observed 2026-10-03T04:03:46.054316+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:46.054316+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Power supply | Input: 100 - 240V AC · 120W power adapter · Output: 19V 6.32ASource & observationView specification source ↗Observed 2026-10-03T04:03:46.054316+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Connectivity▾

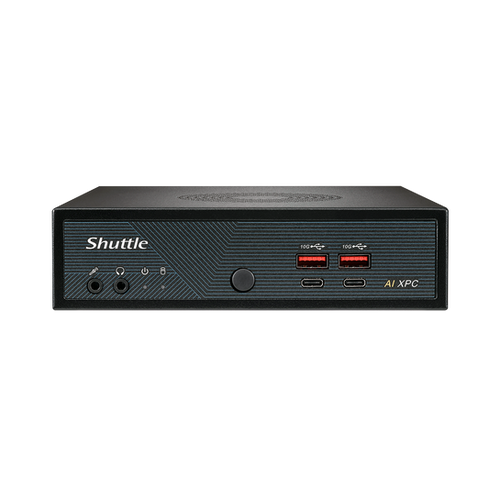

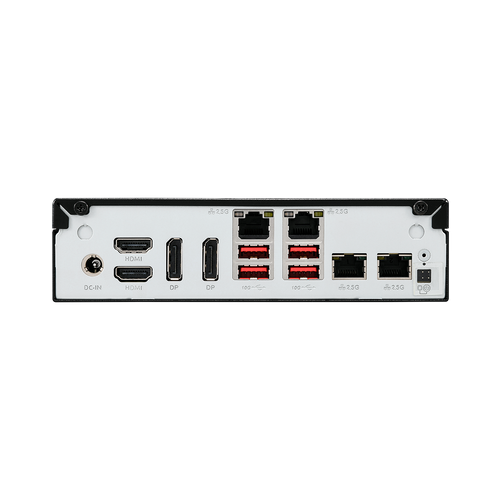

| Ports | Front: Microphone input · Front: Headphone output (line-out) · Front: 2 x USB 3.2 Gen 2 Type A, max 10 Gb/s · Front: 2 x USB 3.2 Gen 2x2 Type C, max 20 Gb/s · Rear: HDMI 2.1 (video/audio) x 2 · Rear: 4-pin connector for external power on button & clear CMOS function · Rear: DisplayPort 1.4 x 2 · Rear: USB 3.2 Gen 2 x 4 (Type A) · Rear: DC-input connector for external power adapter · Rear: 2.5 Gigabit LAN (RJ45) x 4Source & observationView specification source ↗Observed 2026-10-03T04:03:46.054316+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Wireless & networking | Preinstalled Wi-Fi (version unspecified) · Intel 2.5GbE LAN x 4 · Supports Wake on LAN function · 100/1000/2500 MbpsSource & observationView specification source ↗Observed 2026-10-03T04:03:46.054316+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Build & Physical▾
| Weight | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:46.054316+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Dimensions | 7.5(L) x 6.5(W) x 1.7(H) inchesSource & observationView specification source ↗Observed 2026-10-03T04:03:46.054316+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Software & Bundle▾
| Operating system | Windows 11 IotSource & observationView specification source ↗Observed 2026-10-03T04:03:46.054316+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Included bundle | Unpublished |
Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:46.054316+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:46.054316+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
