Catalog referenceSHUTTLE-SKU-649226959718
The hardware
Full Specifications
Every published specification, grouped by category. Select a heading to collapse.
Performance — CPU / GPU▾
| Processor | Intel Processor N100Source & observationView specification source ↗Observed 2026-10-03T04:03:39.475025+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Graphics | Intel UHD GraphicsSource & observationView specification source ↗Observed 2026-10-03T04:03:39.475025+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Memory & Storage▾
| Installed RAM | 8 GBSource & observationView specification source ↗Observed 2026-10-03T04:03:39.475025+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Total storage | 500 GBSource & observationView specification source ↗Observed 2026-10-03T04:03:39.475025+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Display▾
| Screen technology | Not applicable |
|---|---|
| Size | Not applicableSource & observationView specification source ↗Observed 2026-10-03T04:03:39.475025+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
| Resolution | Not applicableSource & observationView specification source ↗Observed 2026-10-03T04:03:39.475025+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
| Refresh rate | Not applicableSource & observationView specification source ↗Observed 2026-10-03T04:03:39.475025+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:39.475025+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Power supply | Input: 100 - 240V AC, 65W Power Adapter · Output: 19V, 3.42ASource & observationView specification source ↗Observed 2026-10-03T04:03:39.475025+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Connectivity▾

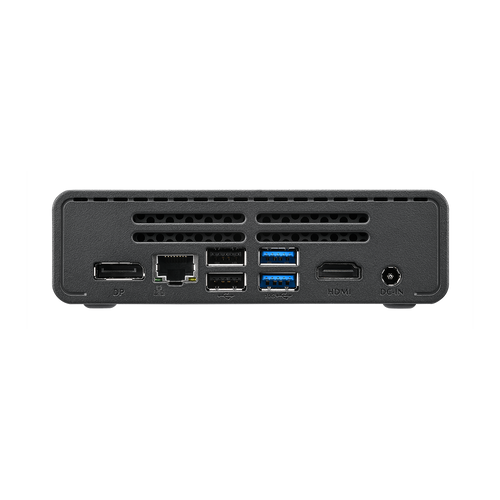

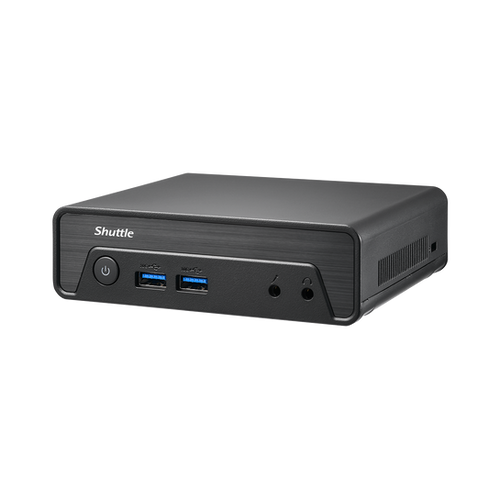

| Ports | Front: USB 3.2 Gen 2 type A x 2 · Front: Audio line-out (3.5 mm) · Front: Microphone input (3.5 mm) · Rear: HDMI 2.0 (video/audio) · Rear: Gigabit Ethernet LAN x 1 (1 Gbps, RJ45) · Rear: DisplayPort 1.4 (video/audio) · Rear: DC-input for external power adapter (supports 19V) · Rear: USB 3.2 Gen 2 Type A x 2 · Rear: USB 2.0 x 2Source & observationView specification source ↗Observed 2026-10-03T04:03:39.475025+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Wireless & networking | Motorcomm YT6801 Ethernet LAN · Supports Wake-on-LAN · 10/100/1000 Mbps supportedSource & observationView specification source ↗Observed 2026-10-03T04:03:39.475025+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Build & Physical▾
| Weight | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:39.475025+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Dimensions | 4.5(L) x 5.3(W) x 1.5(H) inchesSource & observationView specification source ↗Observed 2026-10-03T04:03:39.475025+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Software & Bundle▾
| Operating system | Windows 11 ProSource & observationView specification source ↗Observed 2026-10-03T04:03:39.475025+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Included bundle | Unpublished |
Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:39.475025+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:39.475025+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
