Catalog referenceSHUTTLE-SKU-649226958582
The hardware
Full Specifications
Every published specification, grouped by category. Select a heading to collapse.
Performance — CPU / GPU▾
| Processor | Rockchip RK3568Source & observationView specification source ↗Observed 2026-10-03T04:03:42.116215+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Graphics | Mali-G52 1-Core-2EESource & observationView specification source ↗Observed 2026-10-03T04:03:42.116215+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Memory & Storage▾
| Installed RAM | 2GB (2GB soldered)Source & observationView specification source ↗Observed 2026-10-03T04:03:42.116215+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details View RAM layout source ↗ Observed 2026-10-03T04:03:42.116215+00:00 Installed RAM modules stated for the exact product or selected build View RAM stick count source ↗ Observed 2026-10-03T04:03:42.116215+00:00 Installed RAM modules stated for the exact product or selected build |
|---|---|
| Total storage | 32 GBSource & observationView specification source ↗Observed 2026-10-03T04:03:42.116215+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Display▾
| Screen technology | Not applicable |
|---|---|
| Size | Not applicableSource & observationView specification source ↗Observed 2026-10-03T04:03:42.116215+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
| Resolution | Not applicableSource & observationView specification source ↗Observed 2026-10-03T04:03:42.116215+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
| Refresh rate | Not applicableSource & observationView specification source ↗Observed 2026-10-03T04:03:42.116215+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:42.116215+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Power supply | Input: 100 - 240V AC (50/60Hz) · Output: 12V/3A, 36WSource & observationView specification source ↗Observed 2026-10-03T04:03:42.116215+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Connectivity▾

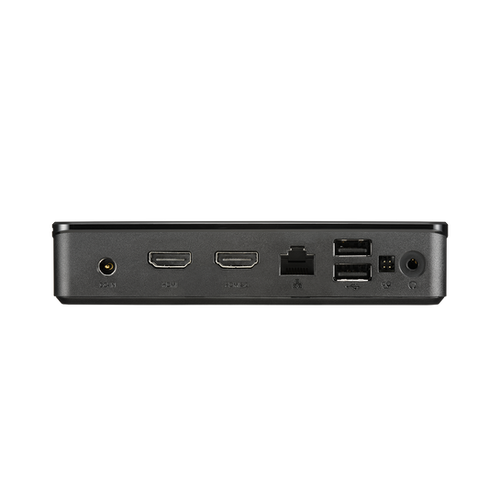

| Ports | Front: (2) USB 3.1 Gen 1 · Front: (1) SD Card Reader · Rear: (1) HDMI 2.0a* · Rear: (1) DC-in jack · Rear: (1) HDMI 1.4* · Rear: (1) Headphone + MIC in combo jack · Rear: (2) USB 2.0 · Rear: (1) 2 pin remote power control pin header · Rear: (1) Kensington Lock · Rear: (1) 2 recovery pin header · Rear: (1) LAN portSource & observationView specification source ↗Observed 2026-10-03T04:03:42.116215+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Wireless & networking | Realtek Gigabit LAN · 802.11 a/b/g/n/ac with Bluetooth 5.2Source & observationView specification source ↗Observed 2026-10-03T04:03:42.116215+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Build & Physical▾
| Weight | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:42.116215+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Dimensions | 5.6(L) x 5.6(W) x 1.14(H) inchesSource & observationView specification source ↗Observed 2026-10-03T04:03:42.116215+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
Software & Bundle▾
| Operating system | Android 11Source & observationView specification source ↗Observed 2026-10-03T04:03:42.116215+00:00 Shuttle exact US named fixed tier; linked model technical sheet for platform details |
|---|---|
| Included bundle | Unpublished |
Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:42.116215+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T04:03:42.116215+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
