Winmate/Specialty Devices
Winmate FM07E
US · WINMATE-MODEL-FM07E
BusinessConfigurable device · Advertised base configuration
Configurable modelWINMATE-MODEL-FM07E
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
| Graphics | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:57:11.049766+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented processor specifications and options
- Intel Atom x6413E 1.5GHz (up to 3GHz)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 4 GBSource & observationView specification source ↗Observed 2026-10-09T21:57:11.049766+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented memory specifications and options
- 4GB (Default)
- 8GB (Optional)
- 16GB (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Documented storage specifications and options
- 1 x M.2 2242 SSD 128GB (Default)
- 256GB (Optional)
- 512GB (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Display▾
| Screen technology | Unpublished |
|---|---|

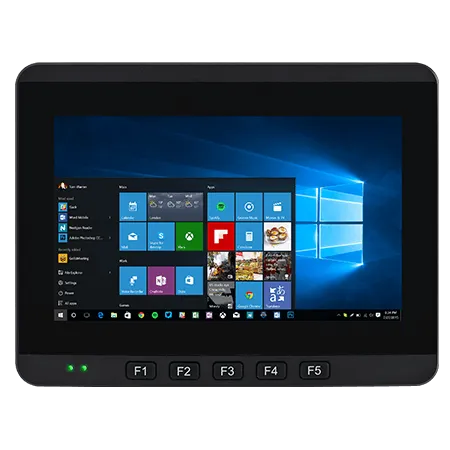

| Size | 7 inSource & observationView specification source ↗Observed 2026-10-09T21:57:11.049766+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
| Resolution | 1024x0600 pxSource & observationView specification source ↗Observed 2026-10-09T21:57:11.049766+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
| Refresh rate | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:57:11.049766+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:57:11.049766+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Power supply | Power Rating: 9V-36V, with ignition controlSource & observationView specification source ↗Observed 2026-10-09T21:57:11.049766+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Connectivity▾

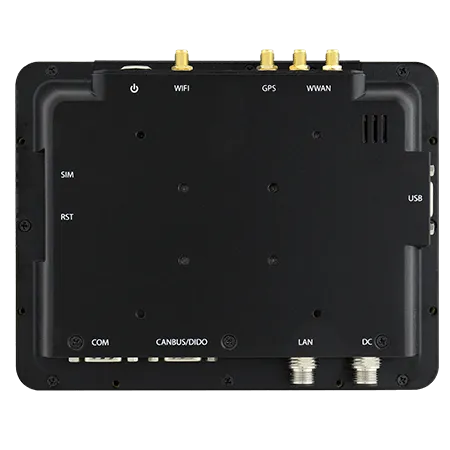

| Ports | USB Port: 2 x USB for DB9 · USB Port: 1 x Micro USB · Serial Port: 1 x RS232/422/485 (Default RS232) · LAN: 1 x Gigabit Ethernet LAN 10/100/1000 Mbps (M12 type) · Audio: 1x Speaker · SIM Card Slot: 1 x Micro SIM Card Slot · Front Control: 5 x Function Key · Indicator: Power, HD · DIDO: DIDO (5XDI ; 3XDO) · CANBUS: 2 x CANBUSSource & observationView specification source ↗Observed 2026-10-09T21:57:11.049766+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
WWAN choices
- 4G/LTE (Optional)
Optional radios, antennas and cellular service are not included by default.
Manufacturer options ↗Build & Physical▾
| Weight | 1250 gSource & observationView specification source ↗Observed 2026-10-09T21:57:11.049766+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Dimensions | Dimension: 190 x 146 x 40 mmSource & observationView specification source ↗Observed 2026-10-09T21:57:11.049766+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Software & Bundle▾
| Included bundle | User Guide · M12 LAN Cable, 1.8m · RS-232 Cable, 1.8m · M12 Power Cable, 1.8m · USB Cable, 0.3m · CANBus and DIDO Cable, 1.8m · WLAN Antenna · Power Converter Cable · Power AdapterSource & observationView specification source ↗Observed 2026-10-09T21:57:11.049766+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented operating system specifications and options
- Windows 10 IoT Enterprise (64 bit) (Default)
- Windows 11 IoT Enterprise LTSC (64 bit) (Optional)
- Linux Ubuntu 22.04 (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Mounting choices
- RAM mount
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Optional Accessory choices
- WWAN Antenna x 2 (Optional)
- Audio Cable, 0.3m (Optional)
- GPS Antenna, 3m (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:57:11.049766+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:57:11.049766+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
