Winmate/Specialty Devices

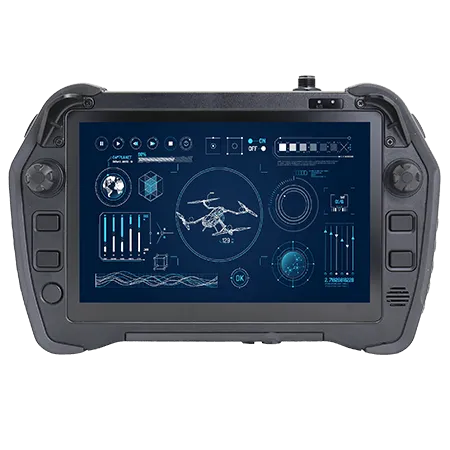

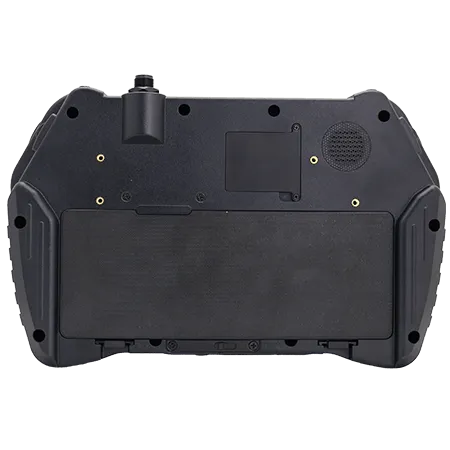

Winmate G900AD
US · WINMATE-MODEL-G900AD
BusinessConfigurable device · Advertised base configuration
Configurable modelWINMATE-MODEL-G900AD
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
| Graphics | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:57:20.238154+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented processor specifications and options
- Intel Core i5-1235U 3.3GHz(up to 4.40 GHz)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 8 GBSource & observationView specification source ↗Observed 2026-10-09T21:57:20.238154+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented memory specifications and options
- 8GB RAM, up to 32GB
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Documented storage specifications and options
- 128GB, up To 2TB SSD
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Display▾
| Screen technology | Unpublished |
|---|---|
| Size | 8 inSource & observationView specification source ↗Observed 2026-10-09T21:57:20.238154+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
| Resolution | 1920x1200 pxSource & observationView specification source ↗Observed 2026-10-09T21:57:20.238154+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
| Refresh rate | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:57:20.238154+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:57:20.238154+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Power supply | Power Rating: 20V DC · Adapter: 20V/5A PD AdapterSource & observationView specification source ↗Observed 2026-10-09T21:57:20.238154+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Connectivity▾
WWAN choices
- 4G LTE (Optional, mutually exclusive with RF Module)
- 5G (Optional, mutually exclusive with RF Module)
Optional radios, antennas and cellular service are not included by default.
Manufacturer options ↗LAN choices
- 1 x M12 LAN Connector (Mutually exclusive with RF Module)
- 1 x M10 Push-pull LAN Connector (Optional, mutually exclusive with RF Module)
Optional connectors and dock-specific interfaces retain their source scope and mutual exclusions.
Manufacturer options ↗Video choices
- 1 x micro HDMI output(Optional)
Optional connectors and dock-specific interfaces retain their source scope and mutual exclusions.
Manufacturer options ↗Build & Physical▾
| Weight | 1200 gSource & observationView specification source ↗Observed 2026-10-09T21:57:20.238154+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Dimensions | Dimension: 259.8 x 166.1 x 44.2 mmSource & observationView specification source ↗Observed 2026-10-09T21:57:20.238154+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Software & Bundle▾
| Included bundle | 1 x PD Adapter 100W · 1 x M12 LAN External Cable · 1 x Power CordSource & observationView specification source ↗Observed 2026-10-09T21:57:20.238154+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented operating system specifications and options
- Windows 10 IoT Enterprise LTSC (64 bit)
- Windows 11 IoT Enterprise LTSC (64 bit) (Optional)
- Linux Ubuntu 22.04 / 24.04 (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Button choices
- 2 × Hall-effect Joysticks (Full self-centering; optional non-centering throttle axis)
- 7 × Momentary Push Buttons
- 2 × Hall-effect Roller Switches
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Battery choices
- Standard : 11.4V, typ. 3500 mAh LiIon Removable Battery (3S1P)
- Optional : 11.4V, typ. 4750 mAh LiIon Removable Battery (3S1P)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Optional Accessory choices
- Microhard pMDDL2450 (Mutually exclusive with LAN)
- High Capacity Battery
- M10 Push-pull Type LAN Cable
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:57:20.238154+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:57:20.238154+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
