Winmate/Specialty Devices

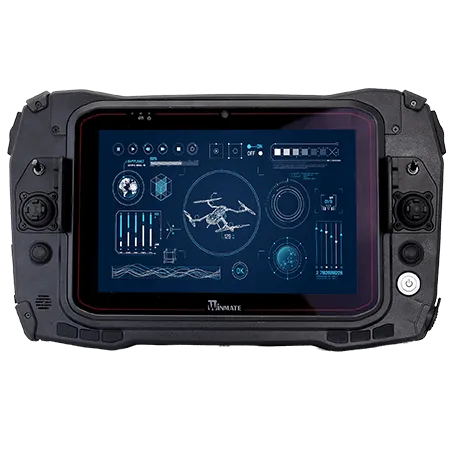

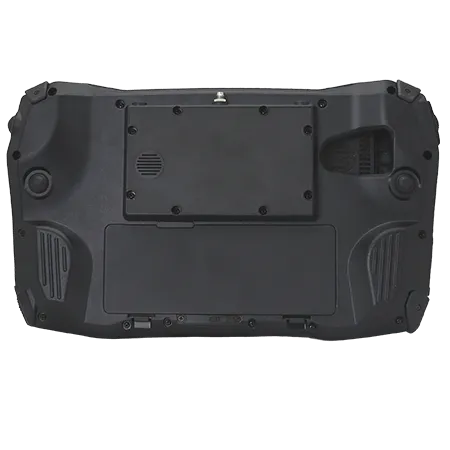

Winmate G101TG
US · WINMATE-MODEL-G101TG
BusinessConfigurable device · Advertised base configuration
Configurable modelWINMATE-MODEL-G101TG
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
| Graphics | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:57:24.101649+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented processor specifications and options
- Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
- Intel Core i3/i7 Processor (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 8 GBSource & observationView specification source ↗Observed 2026-10-09T21:57:24.101649+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented memory specifications and options
- 8GB , up to 32GB (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Documented storage specifications and options
- 1 x M.2 M-Key 2280 NVMe 128GB SSD, up to 2TB SSD (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Display▾
| Screen technology | Unpublished |
|---|---|
| Size | 10.1 inSource & observationView specification source ↗Observed 2026-10-09T21:57:24.101649+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
| Refresh rate | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:57:24.101649+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Panel Brightness choices
- 800 nits(Default)
- 1200 (Optional)
Optional screen hardware is separate from the stated native screen.
Manufacturer options ↗Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:57:24.101649+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Power supply | Power Rating: 19V DC · Adapter: 100-240V, 50-60Hz / 19V DCSource & observationView specification source ↗Observed 2026-10-09T21:57:24.101649+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Connectivity▾
WWAN choices
- 4G LTE (Optional)
- 5G (Optional)
Optional radios, antennas and cellular service are not included by default.
Manufacturer options ↗LAN choices
- 1 x M8 LAN Connector (10/100 Mbps , Max to 250 Mbps)
- 1 x M10 Push Pull Connector (optional)
- (Mutually exclusive with RF Module)
Optional connectors and dock-specific interfaces retain their source scope and mutual exclusions.
Manufacturer options ↗Video choices
- 2 x micro HDMI output(Optional)
Optional connectors and dock-specific interfaces retain their source scope and mutual exclusions.
Manufacturer options ↗Build & Physical▾
| Weight | 2400 gSource & observationView specification source ↗Observed 2026-10-09T21:57:24.101649+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Dimensions | Dimension: 369.35 x 221.5 x 67.3 mmSource & observationView specification source ↗Observed 2026-10-09T21:57:24.101649+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Software & Bundle▾
| Included bundle | 1 x Adapter and Power Cord · 1 x M8 LAN external cable · 1 x M12 Power Adapter · 1 x Standard BatterySource & observationView specification source ↗Observed 2026-10-09T21:57:24.101649+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented operating system specifications and options
- Windows 10 IoT Enterprise LTSC (64 bit) (Default)
- Windows 11 IoT Enterprise SAC (64 bit) (Optional)
- Linux Ubuntu 22.04 (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Panel Brightness choices
- 800 nits(Default)
- 1200 (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Optional Accessory choices
- Battery Charger (Optional)
- Shoulder Strap(Optional)
- High Capacity Battery (optional)
- M10 Push Pull Connector (optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:57:24.101649+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:57:24.101649+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
