Winmate/Specialty Devices

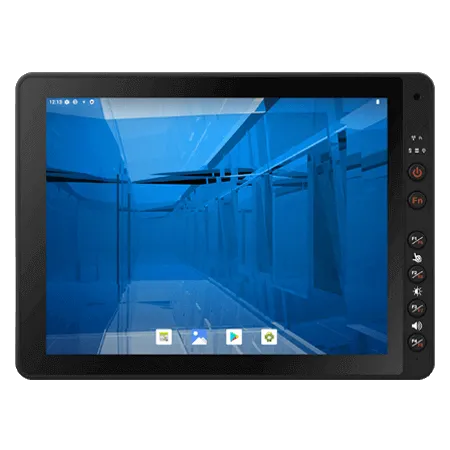

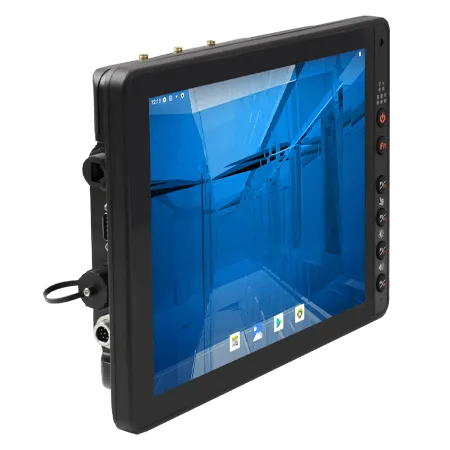

Winmate FM12MG-V

Name: Winmate FM12MG-V
Brand: Winmate

US · WINMATE-MODEL-FM12MG-V

Business

Configurable device · Advertised base configuration

Configurable modelWINMATE-MODEL-FM12MG-V

Before you buy +

Winmate complete model reference, not a fixed retail SKU. Specifications describe the stated default where available. Factory choices, additional storage, regional radios and optional accessories retain their conditions. No order was submitted; confirm the final configuration and US availability with Winmate or its authorized distributor. Unpublished fields remain unknown. Configure on the manufacturer’s site ↗

Specifications below preserve the published source wording. Unpublished values are unknown; they do not mean a feature is absent.

Independent assessment

A buying verdict and benchmark scores are not available for this exact configuration.

Explore the full specifications ↓

The hardware

Full Specifications

Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.

Performance — CPU / GPU▾

Processor	ARM Genio 510 2 x A78 2.0GHz + 4 x A55 2.0GHz Source & observation View specification source ↗ Observed 2026-10-09T21:57:11.774234+00:00 Exact official model technical rows; stated defaults separated from optional hardware
Graphics	Unpublished Source & observation View specification source ↗ Observed 2026-10-09T21:57:11.774234+00:00 Exact official model technical rows; stated defaults separated from optional hardware

Memory & Storage▾

Installed RAM	4 GB Source & observation View specification source ↗ Observed 2026-10-09T21:57:11.774234+00:00 Exact official model technical rows; stated defaults separated from optional hardware
Total storage	64 GB Source & observation View specification source ↗ Observed 2026-10-09T21:57:11.774234+00:00 Exact official model technical rows; stated defaults separated from optional hardware

Display▾

Screen technology	Unpublished
Size	12.1 in Source & observation View specification source ↗ Observed 2026-10-09T21:57:11.774234+00:00 Exact official model technical rows; stated defaults separated from optional hardware
Refresh rate	Unpublished Source & observation View specification source ↗ Observed 2026-10-09T21:57:11.774234+00:00 Exact official model technical rows; stated defaults separated from optional hardware

Panel Brightness choices

400 nits(Default)
800 (Optional)

Optional screen hardware is separate from the stated native screen.

Manufacturer options ↗

Battery & Power▾

Battery capacity	Unpublished Source & observation View specification source ↗ Observed 2026-10-09T21:57:11.774234+00:00 Exact official model technical rows; stated defaults separated from optional hardware
Power supply	Power Rating: 10V~60V with ignition control Source & observation View specification source ↗ Observed 2026-10-09T21:57:11.774234+00:00 Exact official model technical rows; stated defaults separated from optional hardware

Connectivity▾

WLAN choices

Support with Internal Antenna (Default)
Either one with External Antenna (Optional)

Optional radios, antennas and cellular service are not included by default.

Manufacturer options ↗

WWAN choices

4G/LTE with External Antenna (Optional)

Optional radios, antennas and cellular service are not included by default.

Manufacturer options ↗

GNSS choices

GPS/GLONASS with External Antenna (Optional)

Optional radios, antennas and cellular service are not included by default.

Manufacturer options ↗

LAN choices

1 x Gigabit LAN port (Default)
PSE (IEEE 802.3at 30W) (Optional)

Optional connectors and dock-specific interfaces retain their source scope and mutual exclusions.

Manufacturer options ↗

Audio choices

1 x Audio(Mic in & Line Out) either one with DIDO (Optional)

Optional connectors and dock-specific interfaces retain their source scope and mutual exclusions.

Manufacturer options ↗

DIDO choices

1 x DIDO (2XDI ; 2XDO) either one with Audio (Optional)

Optional connectors and dock-specific interfaces retain their source scope and mutual exclusions.

Manufacturer options ↗

CANBUS choices

1 x CANBus (Optional)

Optional connectors and dock-specific interfaces retain their source scope and mutual exclusions.

Manufacturer options ↗

Build & Physical▾

Weight	2500 g Source & observation View specification source ↗ Observed 2026-10-09T21:57:11.774234+00:00 Exact official model technical rows; stated defaults separated from optional hardware
Dimensions	Dimension: 307 x 225 x 57 mm Source & observation View specification source ↗ Observed 2026-10-09T21:57:11.774234+00:00 Exact official model technical rows; stated defaults separated from optional hardware

Software & Bundle▾

Included bundle	1.8M Power Cable with Fuse Kit · 0.15M Power Converter Cable · DC Jack Power Cable · 84W Adapter with power cable · Quick Start Guide Source & observation View specification source ↗ Observed 2026-10-09T21:57:11.774234+00:00 Exact official model technical rows; stated defaults separated from optional hardware

Documented operating system specifications and options

Android 13 (Default)
Linux Yocto 5.10.104 with QT 5.15 (Optional)
Linux Ubuntu 22.04 (Optional)

Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.

Manufacturer options ↗

Panel Brightness choices

400 nits(Default)
800 (Optional)

Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.

Manufacturer options ↗

Mounting choices

VESA Mount

Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.

Manufacturer options ↗

Battery choices

400mAh UPS Battery for 20 minutes backup (Optional)

Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.

Manufacturer options ↗

Optional Accessory choices

5M Power Cable with Fuse KitStylus Kit + Screw
1.8M RS232 Cable
2M IP65 LAN Cable
GPS & LTE 5M Combo Antenna (VM9C)
GPS & LTE Magnetic Combo Antenna (VM10S)
GPS Antenna
WWAN Antenna
2M Waterproof USB Type-A to A Cable
Cable Clamp Kit
COM Port + CANBus Cable
COM Port + DIDO Cable

Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.

Manufacturer options ↗

Motherboard & Memory Expansion▾

Motherboard model	Unpublished Source & observation View specification source ↗ Observed 2026-10-09T21:57:11.774234+00:00 Unpublished: no unambiguous exact-device manufacturer specification
Total RAM slots	Unpublished Source & observation View specification source ↗ Observed 2026-10-09T21:57:11.774234+00:00 Unpublished: no unambiguous exact-device manufacturer specification
